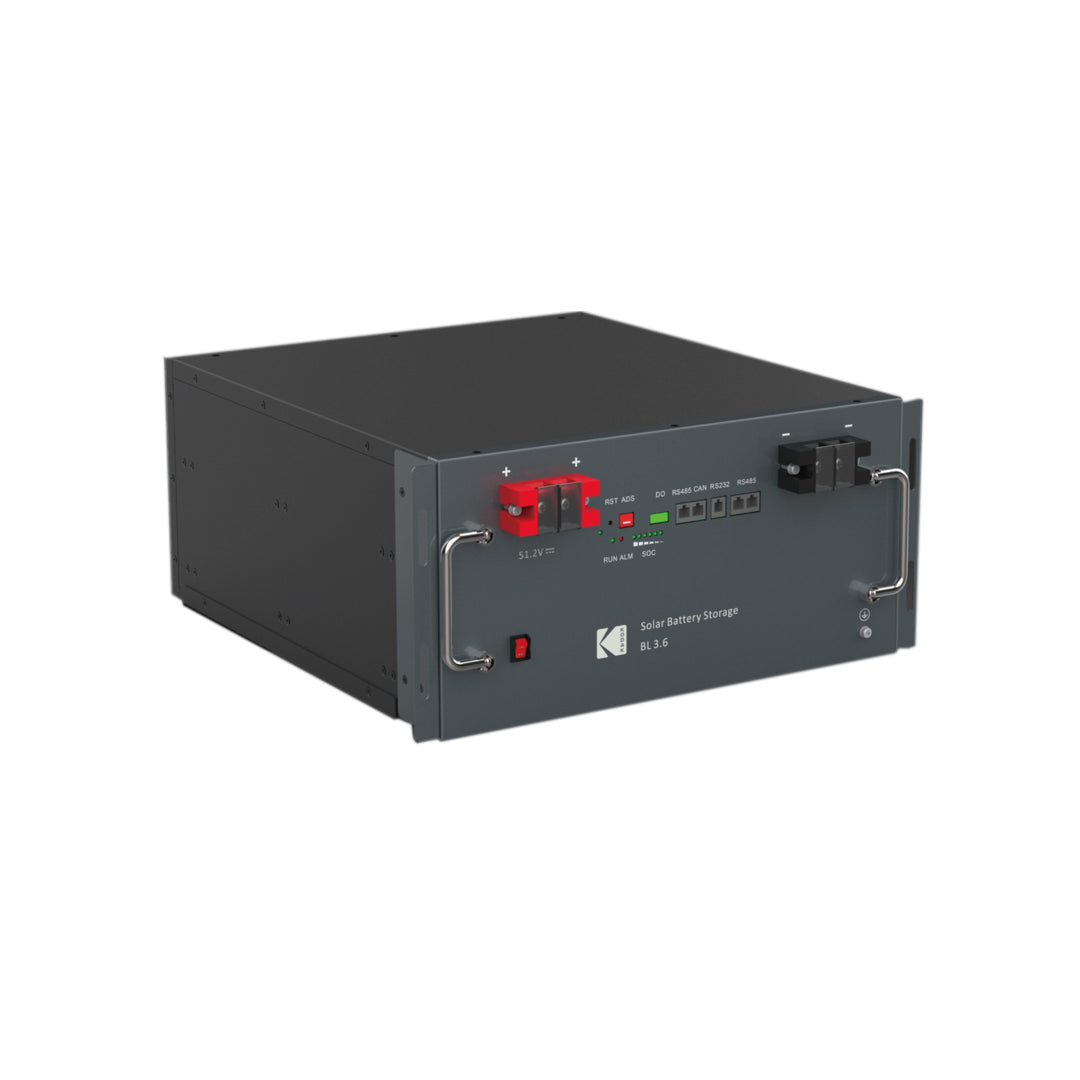

Kodak BL3.6 3.68kWh 48V Lithium Battery

Kodak BL3.6 3.68kWh 48V Lithium Battery

Kodak BL3.6 3.68kWh 48V Lithium Battery

Regular price R 25,096.00 incl. VAT Sale price R 20,077.00 incl. VAT Save R 5,019
R 17,45826 excl. VAT
incl. VAT /

Tax included. Shipping calculated at checkout.
  • Secure online payments

The BL3.6 Kodak battery is a high performance, 3.68kWh,  scalable battery module perfect for expanding systems. A Single BL3.6 battery module allows up to 5000W of continuous discharge power. This means only one BL3.6 battery module is required for a 5kW inverter or only two required for a 10kW inverter.

The battery has up to 6000+ cycles depending on the DoD of the battery.

  • 1.5 C industry leading C- rating allows single battery deployments for 5kW inverter systems
  • 3.686 kWhrs capable of 15 units in parallel totalling 55.29 kWhrs
  • RS485 and CAN communication ensures full compatibility with KODAK and Sunsynk
  • Industry leading 95% DOD allowing for more useable capacity from the battery
  • 10 year standard warranty

Due to the high discharge power of the BL3.6 Kodak battery, it is highly recommended to use bus bars for the battery connections.


  • Overvoltage protection
  • Undervoltage protection
  • Short-circuit protection
  • Low temperature charge protection
  • High temperature charge protection
  • High temperature discharge protection
  • Low temperature discharge protection
  • Charge over-current protection
  • Discharge over-current protection
  • Dormancy function
  • RS232 / RS485 / CAN communication
  • Warranty: 10 year warranty, >6000 life cycles


  • Rated Power: 5000W
  • Parallel capability: up to 15 units
  • Rated voltage: 51.2V/72Ah
  • Nominal capacity: 3.686kWh
  • Dimensions (mm): 222 x 442 x 512
  • Net weight: 42Kg
  • Communication Interface: RS232 / RS485 / CAN

Electrical Parameters:

  • Charge mode: CC / CV / CP
  • Charging current: 50A (0.5C @25°C)
  • Charging cut-off voltage : 58.4V (3650mV for cell)
  • Discharge mode: CC / CP
  • Discharging cut-off voltage: 40.0V (2500mV for cell)
  • Discharge current: 115A (continuous)


  • Humidity: 5% to 95% Relative Humidity (Non-condensing)
  • Operating Temperature: Charge: 0~+50°C / Discharge: -20~+55°C
  • Storage Temperature: -20~45°C (3 months) /-20~+25°C (1 year)
  • Shipment status: Voltage: 52V~54V SOC: 60%~80%


All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
