Geyserwise TS functionality

Use as a geyser timer

    Clear display of water temperature, time, day, heating mode and malfunction     conditions.
    Auto or manual heating.
    Easy temperature setting to your requirements (30 - 65°C) factory default is 55°C.
    Four different temperature settings.
    Daily programmable timer with four time settings.
    Error conditions alert by warning code E2 to E5.

Use as timer on a thermosyphon solar system

    Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
    Auto or manual heating.
    Easy temperature setting to your requirements (30 - 65°C) factory default is 55°C.
    Four different temperature settings.
    Daily programmable timer with four time settings.
    Error conditions alert by warning code E2 to E5.

Technical parameters

    Operating voltage 230VAC / 50HZ.
    Main Relay contact rating 30AMP (Max 4KW).
    Operating voltage range 160V – 250V AC.
    Earth leakage protection at 25MA action time <= 0,1 second.
    Temperature display range 0 - 99°C ("-5" when below -5°C "EA" when above 99°C).
    High temperature warning above 84°C.
    Temperature setting ranges 30 - 65°C (Heating water electrically).
    Heat failure – when increase at a rate of less than 4°C per hour.
    Mechanical thermal cut-out at 90°C.
    Dry heat detection – empty cylinder.
    Temperature tolerance ± 2%.
    Temperature differential setting 1°C.
    Switching differential 6°C.
    Temperature probe failure detection for tank.
    Temperature probe range for geyser is -30 to + 130°C.
    Isolate both L + N when in off state.

Please note the cut-out temperature for systems expected to reach temperatures above this temperature.

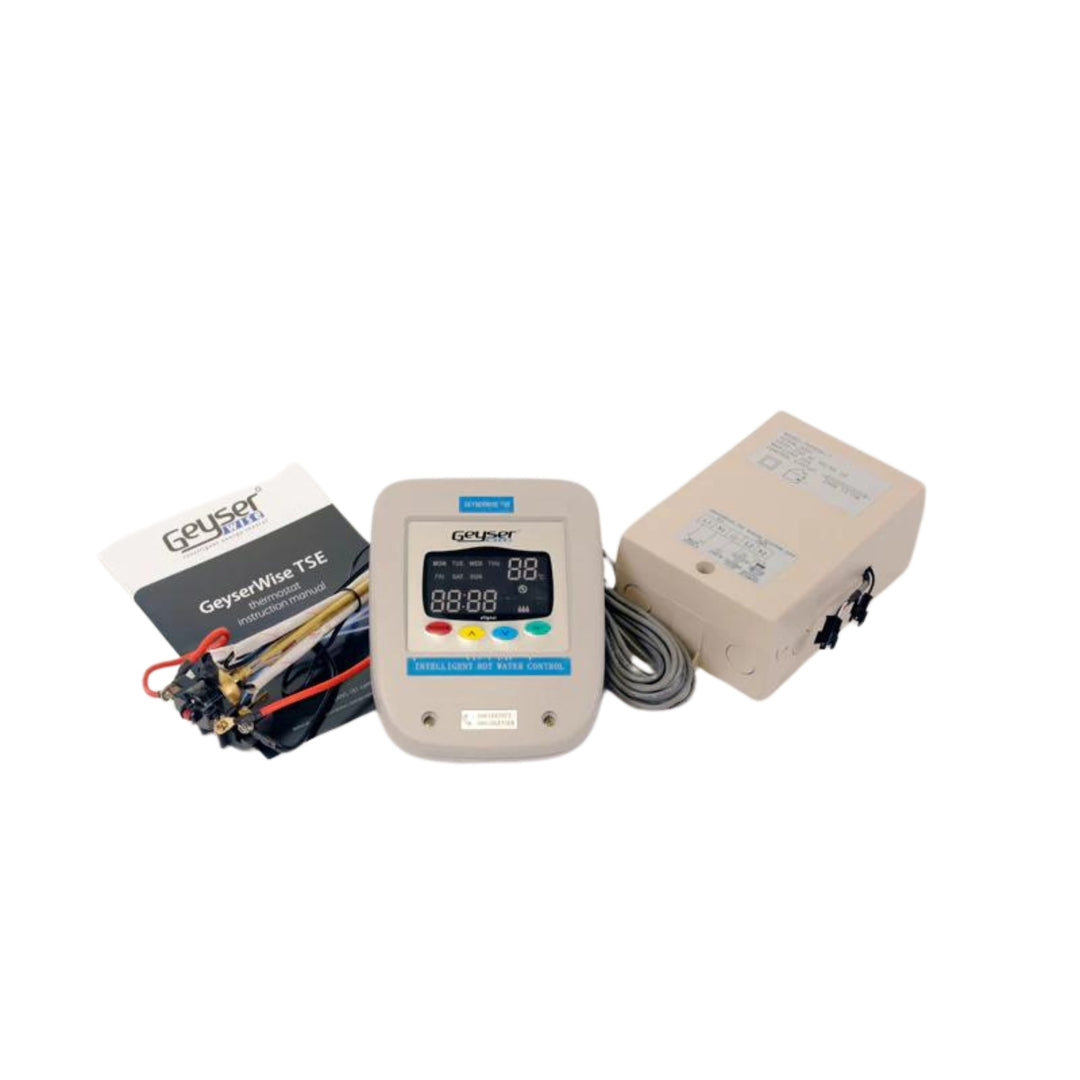

PACKAGE CONTENTS

1 x Display Unit
1 x Power Supply (control box)
1 x Thermostat with probe sensor
1 x 5m Remote Connection Cable
