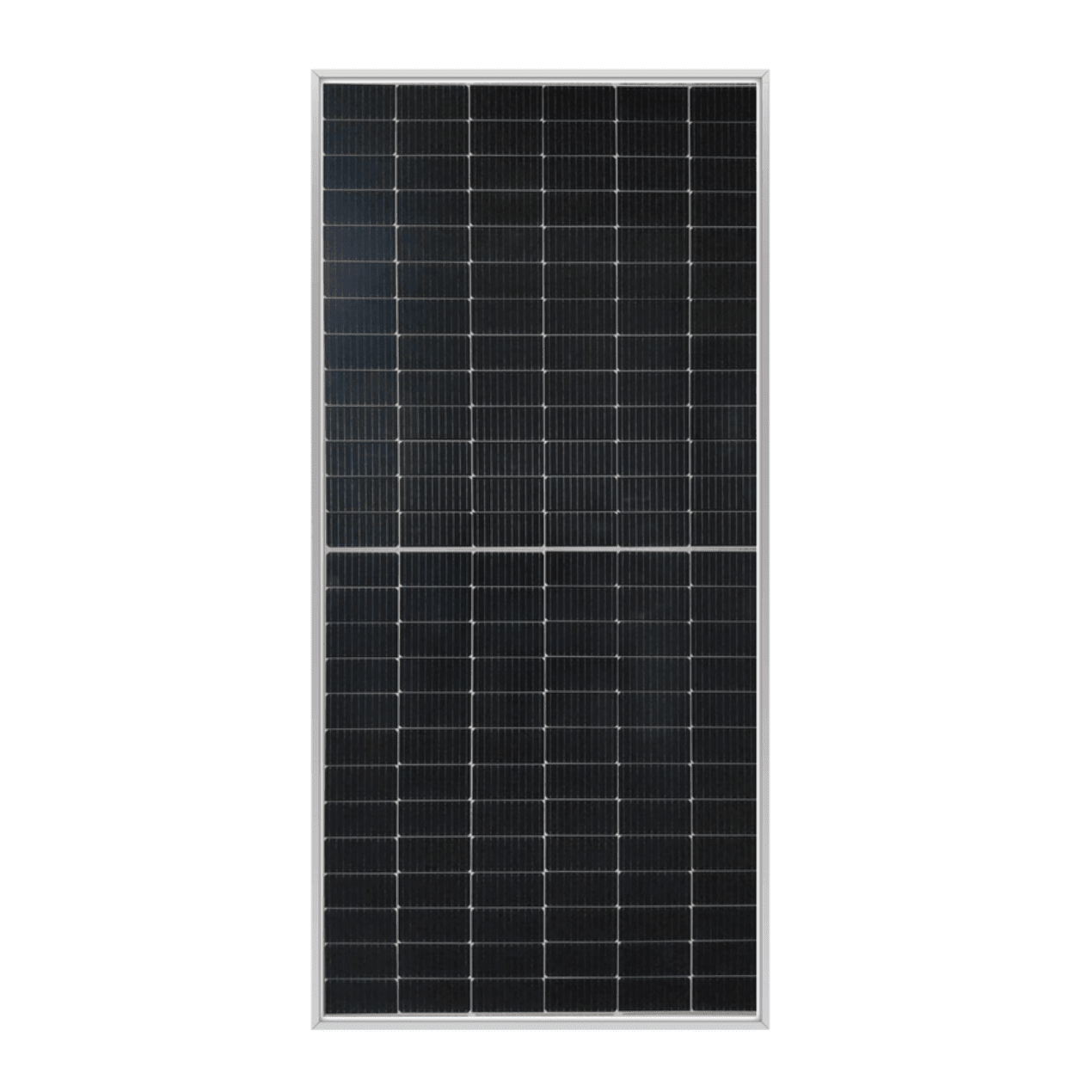

The ideal PV Module for all applications that use the highest quality of PV Cells, in-house encapsulants, and backsheets. Suitable for utility, rooftop, and other general applications.
Key Features
- Made in India.
- Positive power tolerance.
- Highly reliable anti-reflective coated glass.
- Extreme weather resilience
- Wind speed - 2400Pa.
- Snow load - 5400Pa.
- IP 68 junction box with 3 bypass diodes
- PID Resistant
- High power density
- Positive power tolerance
- 3.2mm Thick low iron tempered
Quality & Safety
- IEC 61215, IEC 61730 and 61853 compliant.
- UL 1703 compliant.
- ISO: 9001-2015 Certified Manufacturing Facility.
Warranty
- Limited Power Output Warranty - 25 Years.
- Product Warranty - 10 Years.
Electrical Characteristics
- Peak Power, Pmax (W) - 545W
- Open circuit voltage, Voc (V) - 49.97.
- Short circuit current, lsc (A) - 13.74V.
- Voltage at Maximum power, Vmp (V) - 41.98V
- Current at Maximum power, Imp (A) - 12.99A.
- Module Efficiency (%) - 20.99%.
Mechanical Parameters
- Module dimension - 2284mm X 1137mm X 35mm
- Weight: 28.7 Kg.
- No. of Cells - 140.
- Solar cell Type - Mono crystalline cells.
- Front Cover - 3.2mm thick low iron tempered glass.
- Frame Material - Anodized Aluminium Alloy.
- Junction Box - IP68 Split junction box
with 3 bypass diodes - PV Connectors: MC4 Compatible
- Cable: No. 12 AWG, 4mm2, (300mm Standard)
Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
