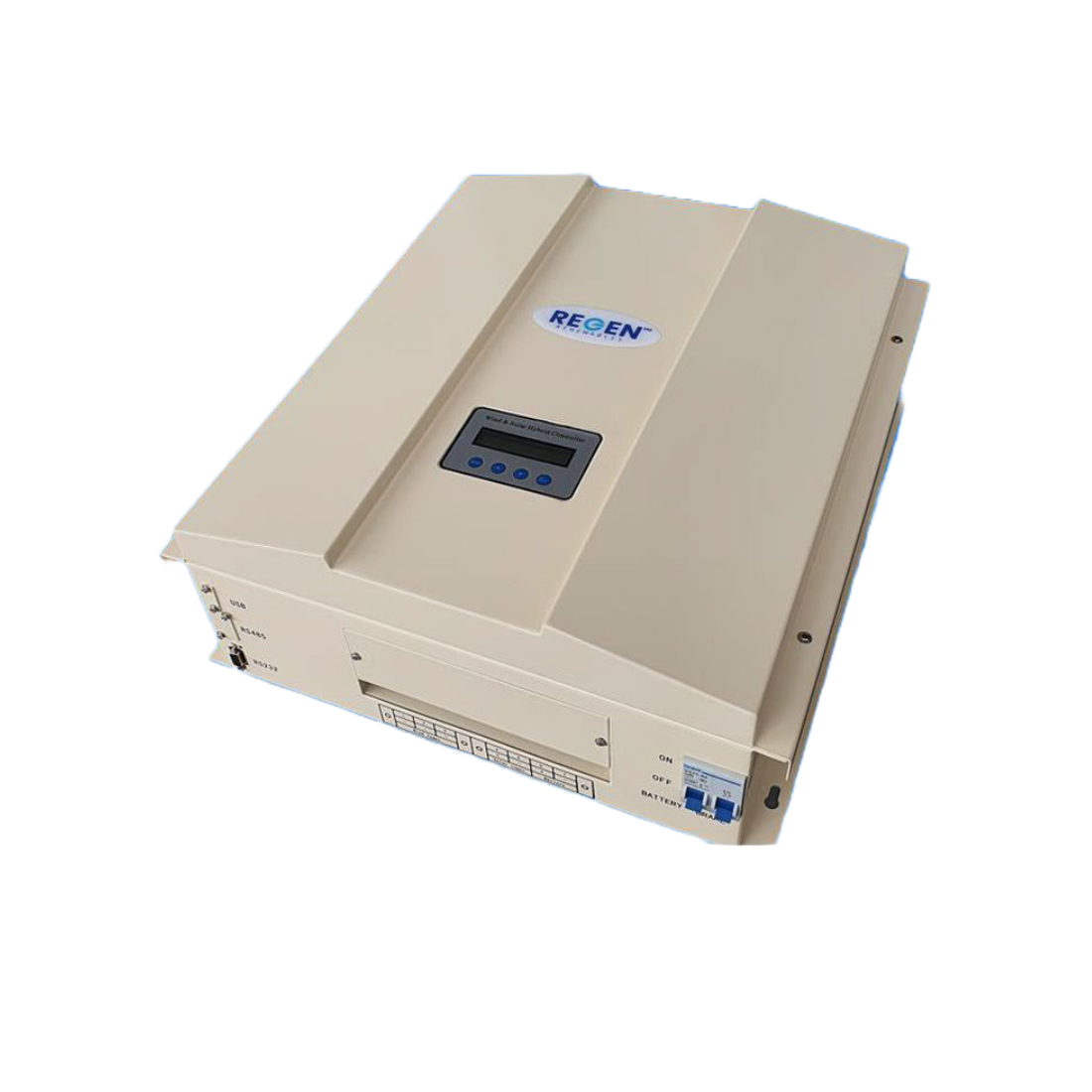

ReGen LN-2KW 48V PWM Hybrid Wind Controller with RS232

ReGen LN-2KW 48V PWM Hybrid Wind Controller with RS232

ReGen LN-2KW 48V PWM Hybrid Wind Controller with RS232

Regular price R 11,421.00 incl. VAT
R 9,93130 excl. VAT
incl. VAT /

Tax included. Shipping calculated at checkout.
  • Secure online payments


  • Model: ReGen_LN-2kW Wind Controller.
  • Rated Power: 2kW.
  • Rated Solar input power: 600W.
  • Rated Battery Voltage: 48V.
  • Display Mode: LCD.
  • Battery over-discharge limit voltage (Low): 40.8V(adjustable).
  • Battery over-discharge limit recovery voltage (Rlow): 46.5V(adjustable).
  • Battery over-charge limit voltage (Full): 58.8V(adjustable).
  • Battery over-charge limit recovery voltage (RFull): 52.8V(adjustable).
  • Float voltage (Flot): 54V(adjustable).
  • Wind dump load rotate speed (Rota): 500R(adjustable).
  • Wind pole logarithm (Pole): 10D(adjustable).
  • Wind charging range DC: (20-100) V.
  • Wind starts charging voltage (Cut In): 20V(adjustable).
  • Wind dump load voltage (Vmax): 100V(adjustable).
  • Dump load control mode: Over rotate speed limiting, over voltage limiting, Over Current limiting, PWM.
  • Wind charging mode: MPPT & PWM (Pulse Width Modulation).
  • Operating temperature & Relative humidity: ﹣20~﹢55℃/35~85%RH(Non-condensing).
  • Quiescent power drain: ≤3W.
  • Protection type: Battery (over-discharge protection; over-charge protection; anti-reverse connection), Wind (Over rotate speed protection, over voltage protection, over current protection).
  • Battery Support: Lithium, Deep Cycle, Lead Acid, Gel and AGM.
  • Packaging Dimensions (L×W×H) 42.5cm x 30cm x 17cm.
  • Net Weight 16 kg.


All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
