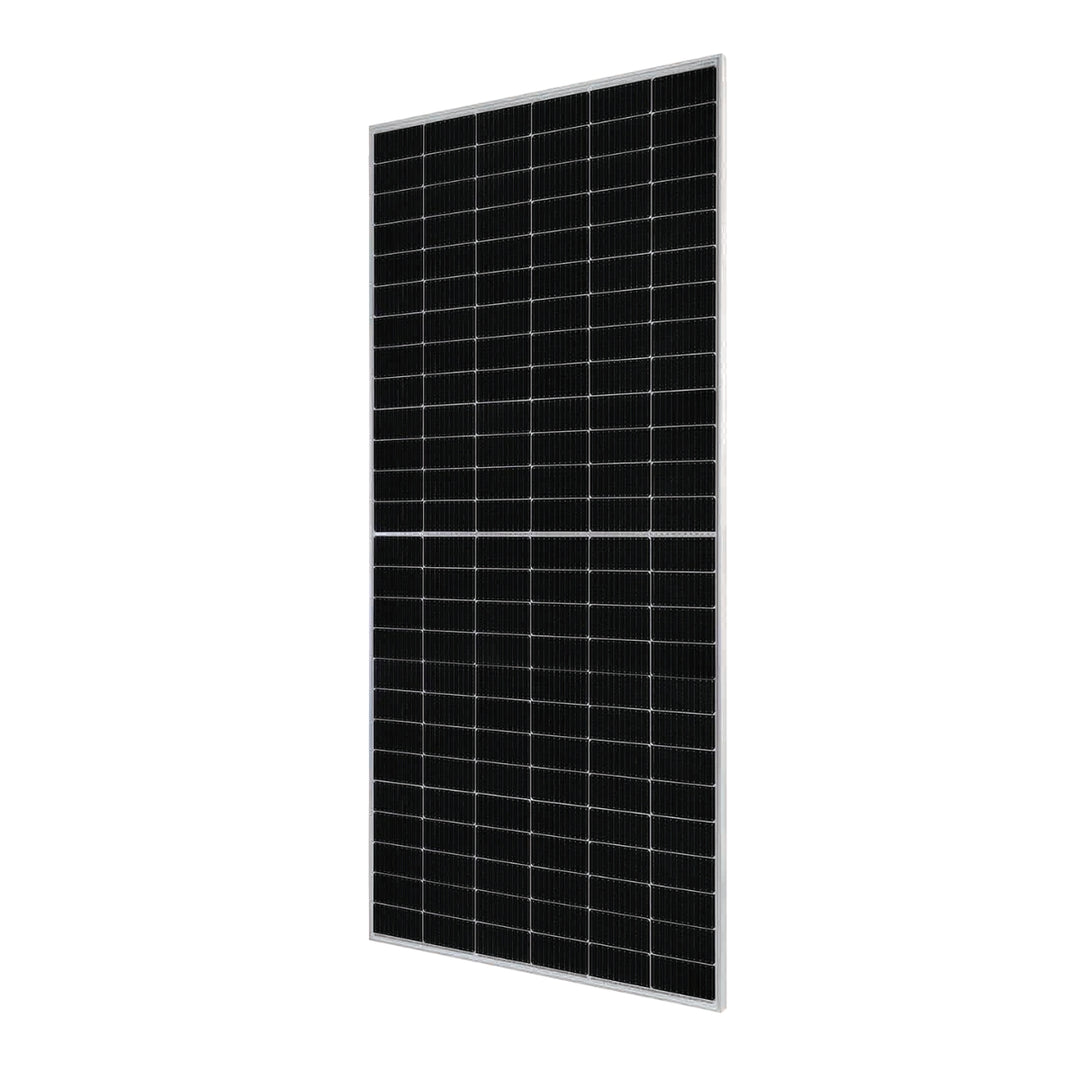

JA Solar 600W N-Type Bifacial Mono Solar Panel

JA Solar 600W N-Type Bifacial Mono Solar Panel

JA Solar 600W N-Type Bifacial Mono Solar Panel

Save R 349.05
R 1,51822 excl. VAT
/


Or split into 4x interest-free
payments of R436.48 Learn more
Tax included. Shipping calculated at checkout.
  • Secure online payments

The JA Solar JAM66D45 600W panel is a high-efficiency bifacial double glass module using advanced n-type monocrystalline cells. Designed for superior performance and longevity, it offers a maximum power output of 600W and module efficiency of 22.2% under standard test conditions. Its robust build, low degradation rate, and bifacial technology ensure strong returns over its 30-year performance warranty.

Assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

More benefits of this module range

  • Higher power output.
  • Less shading and lower resistive loss.
  • Lower LCOE
  • Better mechanical loading tolerance.
  • 12 Year Product Warranty and 30 Year Linear Output Warranty.

Technical Specifications

Parameter Value
Rated Maximum Power (Pmax) 600 W
Module Efficiency 22.2%
Open Circuit Voltage (Voc) 47.7 V
Short Circuit Current (Isc) 15.95 A
Voltage at Pmax (Vmp) 39.44 V
Current at Pmax (Imp) 15.21 A
Power Tolerance 0 ~ +5%
Temperature Coefficient (Isc) +0.046% / °C
Temperature Coefficient (Voc) -0.260% / °C
Temperature Coefficient (Pmax) -0.300% / °C
Nominal Operating Cell Temperature (NOCT) 45 ± 2°C
Maximum System Voltage 1500 V DC
Max Series Fuse Rating 35 A
Dimensions 2382 × 1134 × 30 mm
Weight 33.1 kg
Number of Cells 132 (6 × 22)
Cell Type n-type Mono
Glass 2.0 mm (front) / 2.0 mm (back)
Junction Box IP68, 3 diodes
Connector Stäubli MC4-EVO2A / MC4-EVO2
Cable 4 mm², 12 AWG, 1300-1500 mm
Static Load Front 3600 Pa (1.5 safety factor)
Static Load Back 1600 Pa (1.5 safety factor)
Fire Safety Class Class C
Bifaciality Factor ≥ 80 ± 10%
1st Year Degradation 1%
Annual Power Degradation 0.40% over 30 years
Product Warranty 12 Years
Performance Warranty 30 Years (Linear)

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
