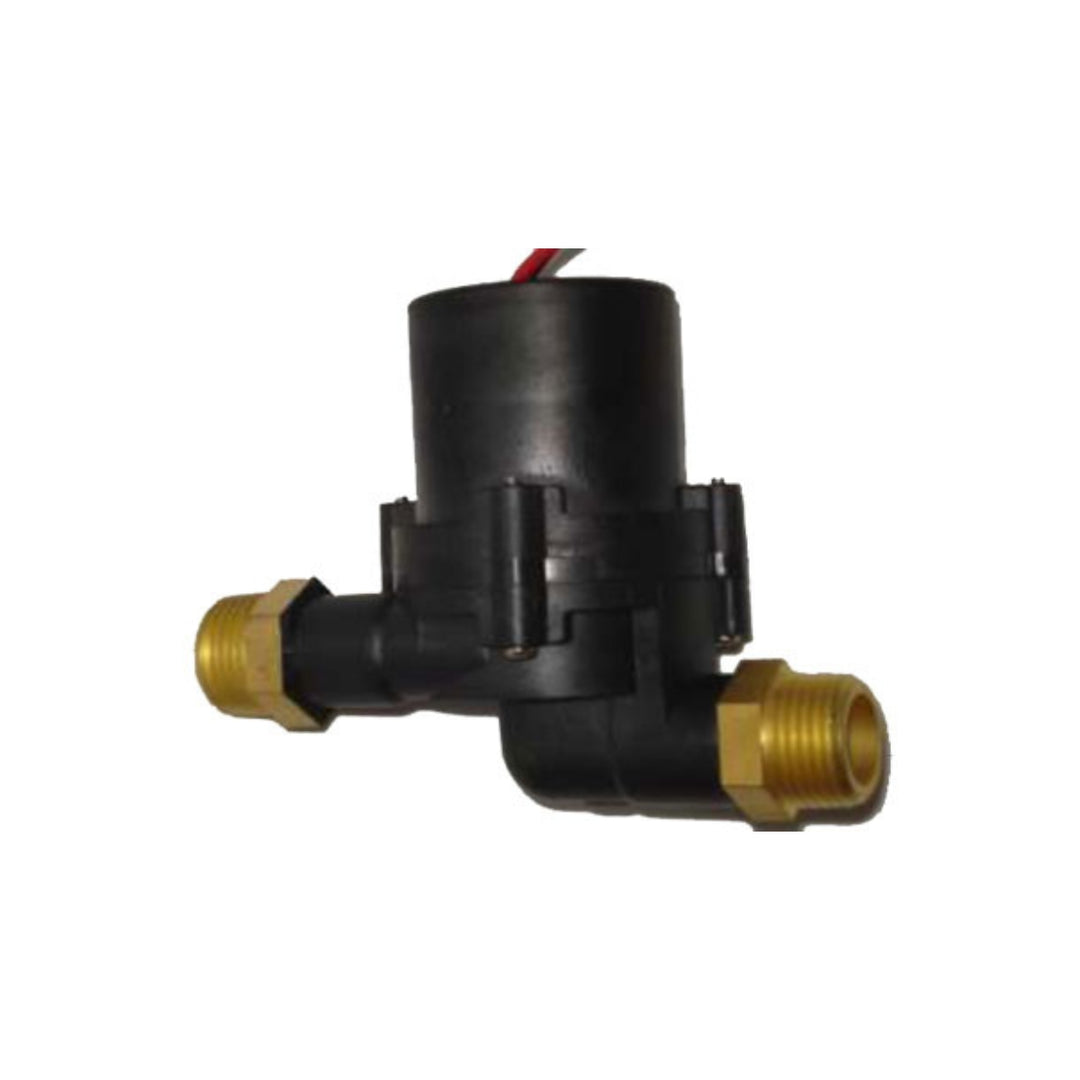

The ITS 12V solar DC pump can be used for most hot water circulation applications. It can be connected directly to a 5W or bigger photovoltaic panel and is characterized by its small size, high efficiency, and extremely low power consumption.
Perfect for single family solar thermal systems.
Features of the 12V-TS5 Pump
* Energy efficient micro processor controlled brushless DC motor.
* Low inrush current soft start. Starts at 2 Watt.
* Durable permanent magnetic rotor/impeller and fine ceramic shaft.
* Long life brushless motor technology provides maintenance free and quiet service.
* Heavy duty. Continual 24 hour operation.
* High temperature Ryton casing and impeller (no deformation up to 260°C).
* Automatic dry-running, over-temperature and overload protection.
* Low power consumption
Over-Temperature Protection
The ITS12V-B Solar DC pump comes with an integrated over-temperature safety device which slows down the pump at 95°C and shuts off the pump electronics when reaching temperature over 110°C (230°F). When the temperature of the pumped fluid cooled to below 95°C (203°F) the pump will function normally again.
Technical Specifications
* Working Voltage (DC): 8V~24V
* Power consumption: 2W ~ 10W
* Life Span: 13 years (normal solar use)
* Noise: < 42dB
* Max Flow Rate: 10L / minute
* Static Head: 2.3m
* Working Temperature: Max 110°C
* Connection Ports: 1/2 inc brass
* Max Pressure: 10 bar
Please note that stock availability is subject to prior sales. Prices exclude delivery.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
