The Geyserwise 150L PV Solar Water Heating System is a cutting-edge solution for efficient and environmentally-friendly hot water supply. With the use of solar panels, it can heat up to 150 liters of water, reducing your household's electricity consumption and carbon footprint. Enjoy a constant supply of hot water while saving on energy costs.

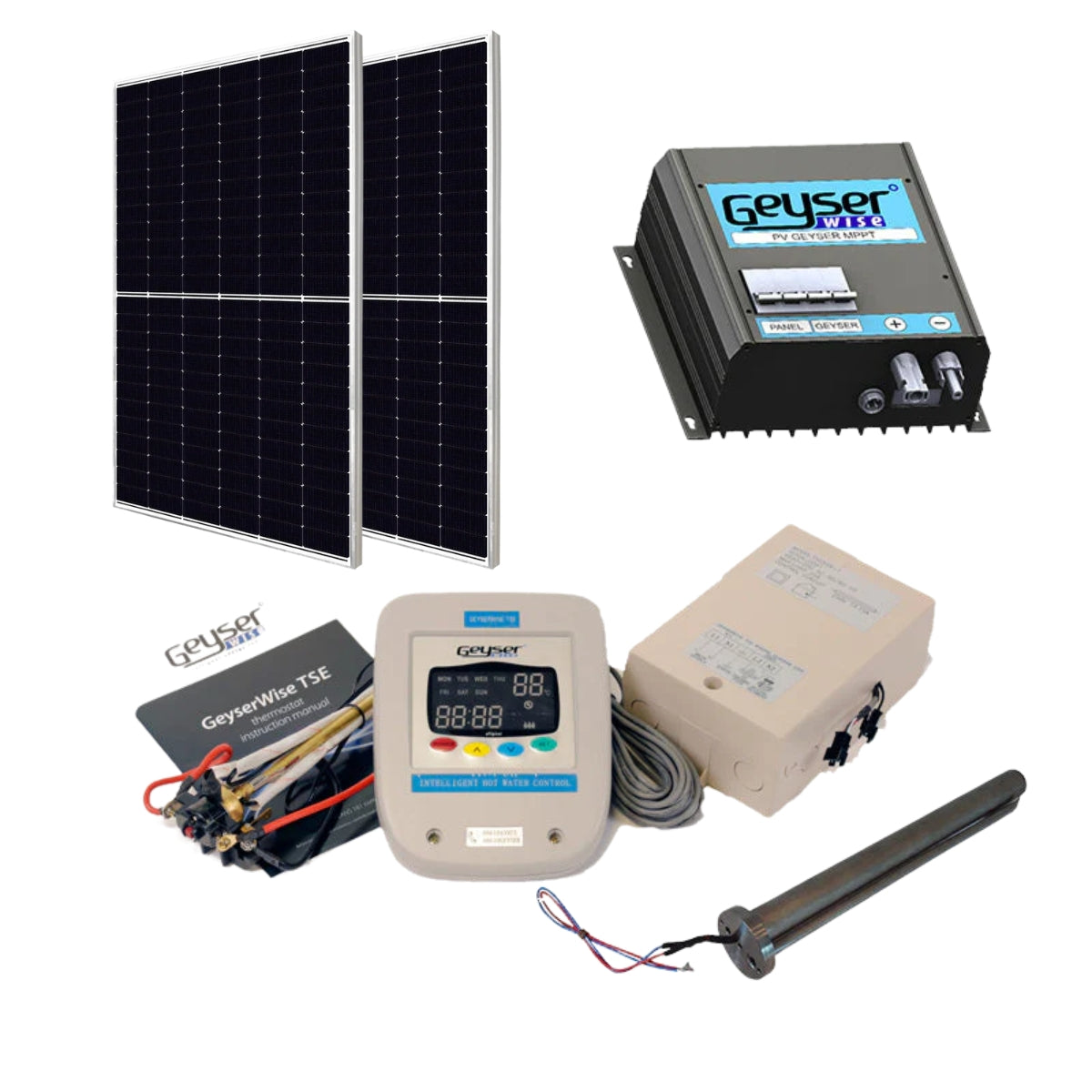

The 150L PV system includes the following components:

• 3 x Renewsys Deserv 340W Solar Panel
• 1 x 2.0 kW AC (230V). 1100W (72V) DC Element
• 1 x Anderson Connectors (on element)
• 1 x PTC Stainless Steel Sensor Tube (Mounted on Flange)
• 1 x Solar Eco MPPT (72V)
• 1 x Geyserwise TSE1
• 1 x Element Connector Cable
• 1 x MC4 Female Connector
• 1 x Pigtail with Male MC4
• 1 x Inline Fuse Holder MC4
• 1 x 20A Fuse
• 1 x 6m Black 6mm Cable with Female MC4 only
• 1 x 6m Red 6mm Cable with Male MC4 only




A complete Roof Mounting System based on your choice above, includes all required rails, clamps and equipment.

GeyserWise MPPT Charge Controller with Element Connector Cable (1.5M)

• Maximum input voltage 150V.
• Peak efficiency 98%.
• Maximum output amps 40 AMPS.
• Ambient temperature Up to 70°C but de-rated at 1 amp per degree at temperatures above 50°C (do not expose to direct sunlight).
• Environmental IP43.
• Indications 3 LED’s.
• Heating (input command from thermostat).
• Tracking (PV active).
• Power (device turned on).
• Inputs/Outputs - and + signal input / GND and 12V output.
• Adjustment MPPT range from 60V to 120V (must = PV Vmp).

Geyserwise TSE Geyser Controller
Below you can find more information on a revolutionary product that will drastically reduce your electricity expenditure, while lowering your carbon footprint.
With our intelligent energy control unit you can :
- Digitally program, monitor and control your geyser's energy consumption.
- Save up to 20% on your electricity bill.
- Protect your geyser from malfunctions, scale build up and element failure.

Geyserwise units were designed and patented in South Africa and work on traditional geysers and most solar powered geysers are SABS approved.

PTC Element 2kW AC, 900W DC (Please Specify Screw boss and Flange mount)
The dynamic resistance and output of PTC heaters makes them an excellent choice for providing controlled electric heating. In many applications it is possible to do away entirely with thermostatic controls. Simplification of design and reduced energy consumption represent significant cost savings for a given application. The removal of failure prone components such as thermostats can also add significantly to the reliability of a product. Safety is an added benefit, since no matter how much current is applied to the PTC; it will never surpass its intended surface temperature.
