Regular price R 221,982.00 incl. VAT Sale price R 164,430.99 incl. VATSave R 57,551.01
R 142,98347 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

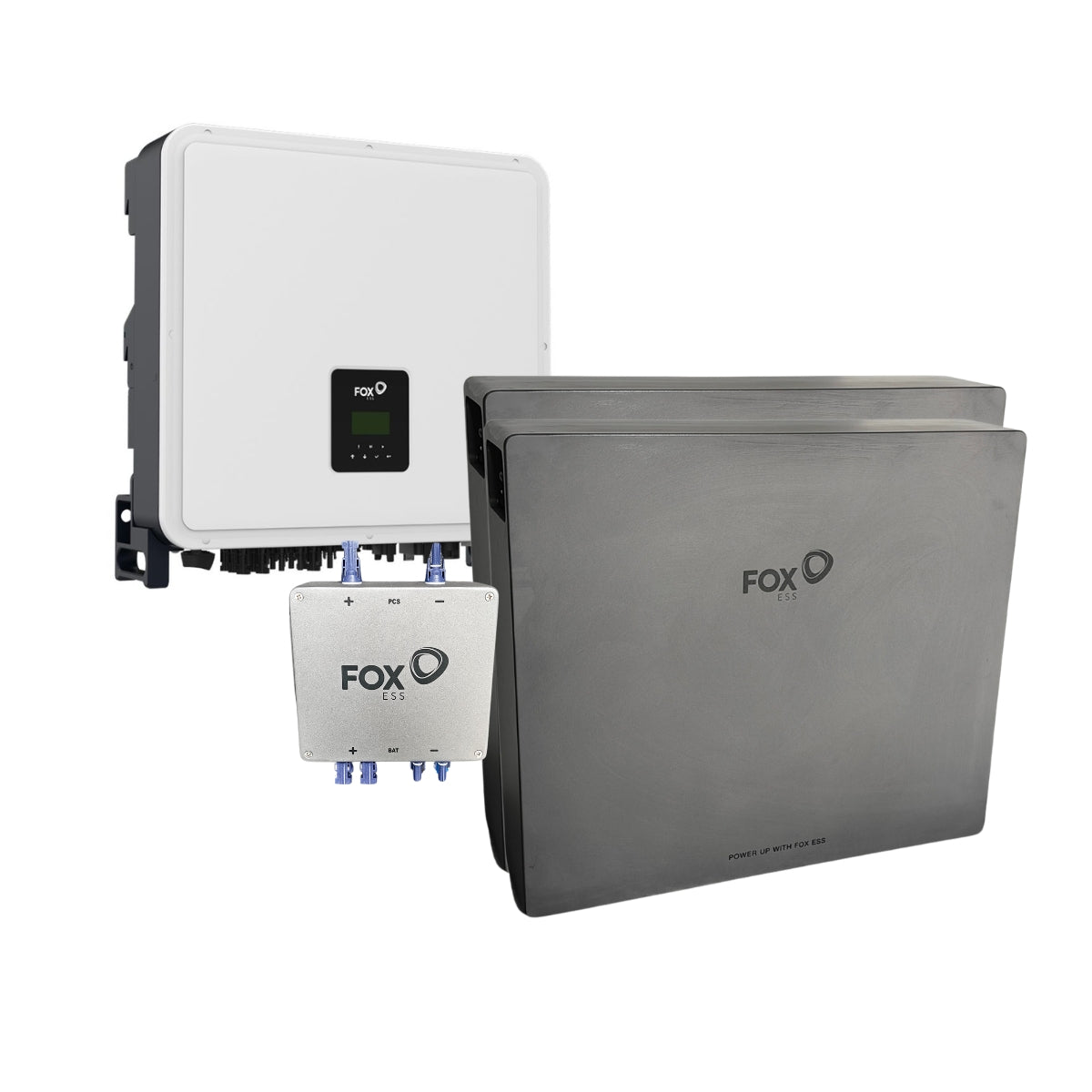

This Combo Consists of:

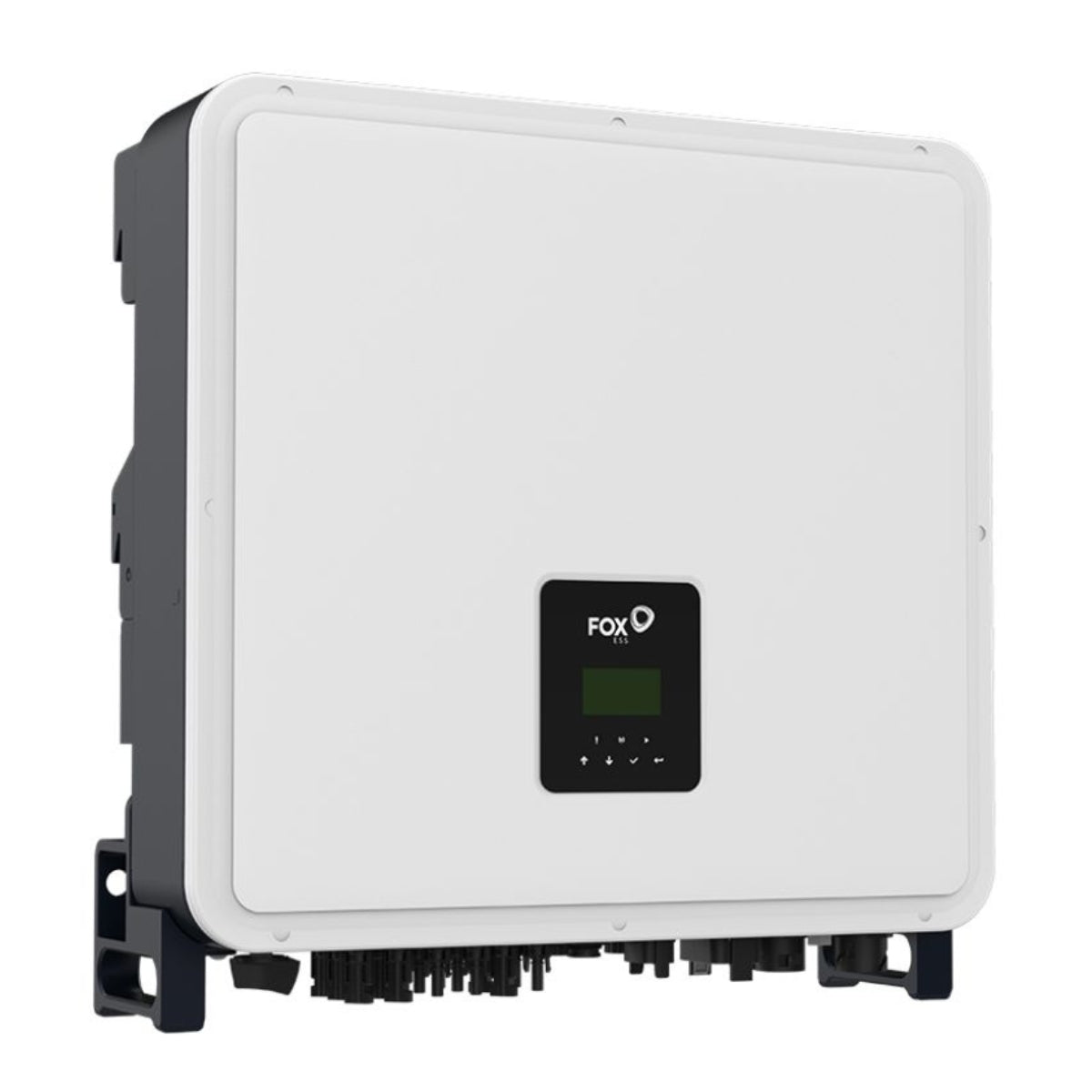

  • 1 x FoxESS 30 kW Three Phase Hybrid Inverter
  • 2 x FoxESS EP 10 10.36kWh High Voltage Battery
  • 1 x FoxESS EP Junction Box

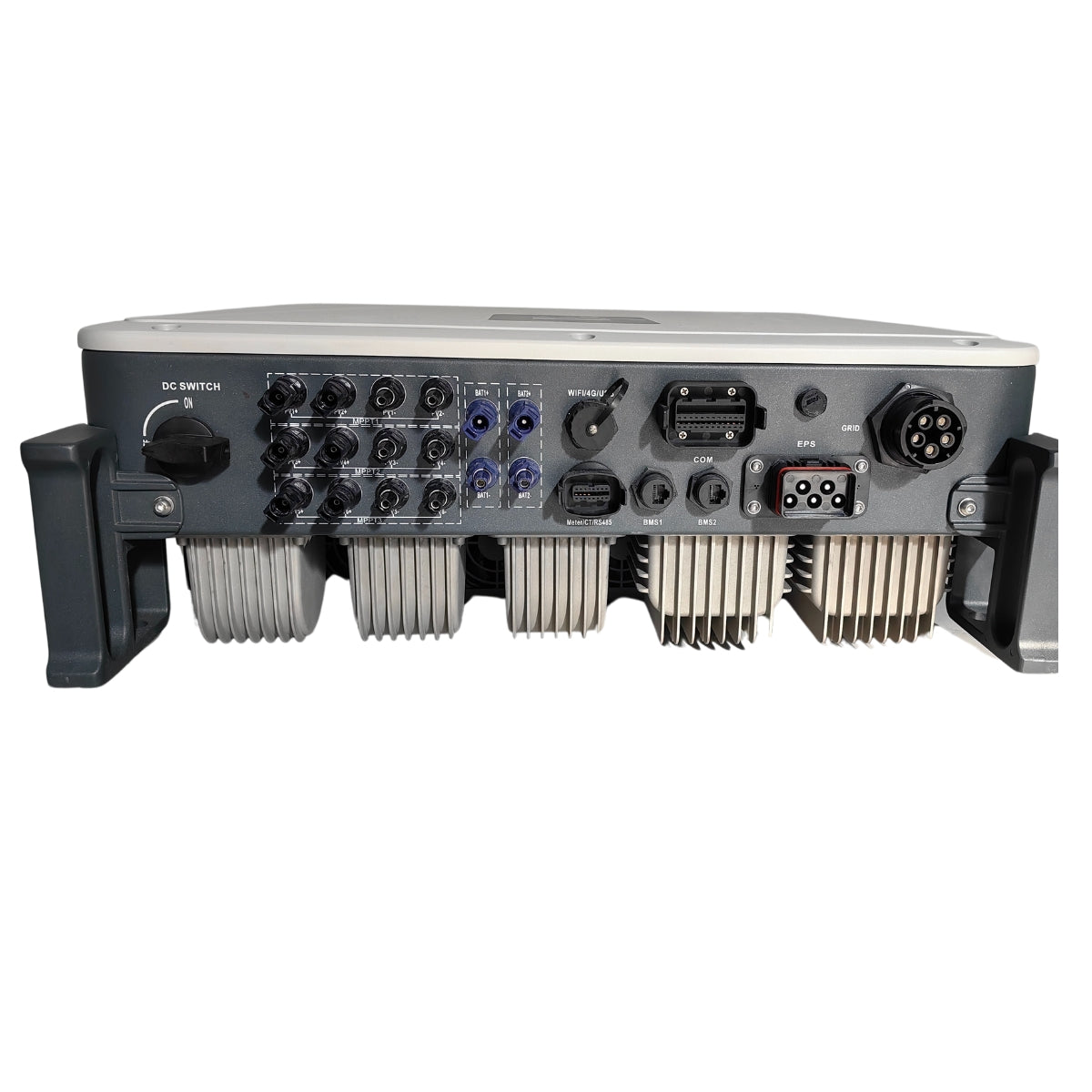

The FoxESS 30kW Hybrid Inverter provides quiet compact efficient operation, with 3 MPPT's and storage capacity from 8.22kW of up to 85.32 kWh. A max. of 10 storage inverters can be connected in parallel which allows you to enlarge the system scale based on different installation requirements.

  • Easy Installation: Flexible configuration, plug and play set-up, built-in fuse protection.
  • High Voltage: Includes high-voltage batteries for maximum round-trip effciency.
  • IP65 Rated Engineered: to last with maximum flexibility. Suitable for outdoor installation.
  • Remote Monitoring: Monitor your system remotely via smartphone app or web portal.

Battery Expansion Easy Upgrade

Easily expand your system by adding extra batteries. There are three battery series you can choose from, which enables a storage capacity of up to 83.88 kWh. A max. of 10 storage inverters can be connected in parallel which allows you to enlarge the system scale based on different installation requirements.

H3-Pro-30.0 Model Specifications

PV Input (Only for Hybrid)
Max. Recommended DC Power [W] 45000
Max. DC Voltage [V] 1000
Nominal DC Operating Voltage [V] 750
Max. Input Current [A] 32
Max. Short Circuit Current [A] 40
MPPT Voltage Range [V] 340 ~ 850
Start-Up Voltage [V] 150
No. of MPP Trackers 2
Strings Per MPP Tracker 2/2
Max. Inverter Backfeed Current to the Array 0
Battery
Battery Type Lithium Battery
Battery Voltage [V] 330 ~ 790
Full AC Load Battery Voltage [V] 330 ~ 790
Max. Charge / Discharge Current [A] 50+50
Number of Battery Input 2
Communication Interface CAN
AC Output
Normal AC Power [VA] 30000
Max. Apparent AC Power [VA] 33000
Rated Grid Voltage (AC Voltage Range) [VAC] 400 / 230 / 380 / 220, 3L / N / PE
Rated Grid Frequency [Hz] 50 / 60 ±5
Max. AC Current [A] (Per Phase) 50.0
Power Factor 1(Adjustable from 0.8 Leading to 0.8 Lagging)
Export Control YES
THD [%] <3 @ Rated Power
AC Input
Max. AC Power [VA] 35000
Rated Grid Voltage (AC Voltage Range) [VAC] 400 / 230 / 380 / 220, 3L / N / PE
Rated Grid Frequency [Hz] 50 / 60 ±5
Max. AC Current [A] (Per Phase) 53.0
Power Factor 1(Adjustable from 0.8 Leading to 0.8 Lagging)
EPS Output
Max. Apparent AC Power [VA] 30000
Max. Apparent AC Power (VA) (60s) 36000
Rated Output Voltage [VAC] 400 / 230 / 380 / 220, 3L / N / PE
Rated Output Frequency [Hz] 50 / 60 ±5
EPS Max Current [A] (Per Phase) 50.0
Power Factor 1(Adjustable from 0.8 Leading to 0.8 Lagging)
Parallel Operation YES @ Max6PCS
Switch Time [ms] <20
THD [%] <3 @ Rated Power
Efficiency
MPPT Efficiency [%] 99.90
Max. Efficiency [%] 97.80
Max. Battery to AC Efficiency [%] 97.60
Max. PV to Battery Efficiency [%] 98.10
Euro-Efficiency [%] 97.40
Protection
PV Reverse Polarity Protection YES
Battery Reverse Protection YES
Anti-islanding Protection YES
Output Short Protection YES
Leakage Current Protection YES
Insulation Resistor Detection YES
Over Voltage Category III (AC Side), II (DC Side)
Reverse Connect Protection YES
Over-current Protection / Over-temperature Protection YES
AC/DC Surge Protection Type I/Type II
AFCI Protection Optional
DC Switch Optional
String Monitoring Function Optional
General Data
Dimension (WxHxD) [mm] 600*500*225
Dimension of Packing (WxHxD) [mm] 720*680*370
Net Weight [kg] 52.5
Gross Weight [kg] 57.5
Installation Wall-mounted
Operating Temperature Range [°C] -25 ~ +60 (Derating at 45)
Storage Temperature [°C] -40 ~ +70
Noise Emission (typical) [dB] <60
Storage/Operation Relative Humidity [%] 0 ~ 95 (Without Condensation)
Altitude [m] <4000
Protective Class I
Ingress Protection IP65 (for Outdoor Use)
Standby Consumption [W] 200 for Hot Standby, 18 for Cold Standby
Idle Mode YES
Cooling Smart FAN Cooling
Inverter Topology Non-isolated
Communication Interface Meter, WIFI, 4G (optional), DRM, USB, BMS(CAN), RS485
LCD Display Backlight 16*4 Character
Button Capacitive Touch Sensor *4
Buzzer 1, Inside (EPS&Earth Fault)
Standard Compliance More Available Upon Request
Safety EN 62109-1, EN 62109-2
EMC IEC 61000-6-2, IEC 61000-6-3

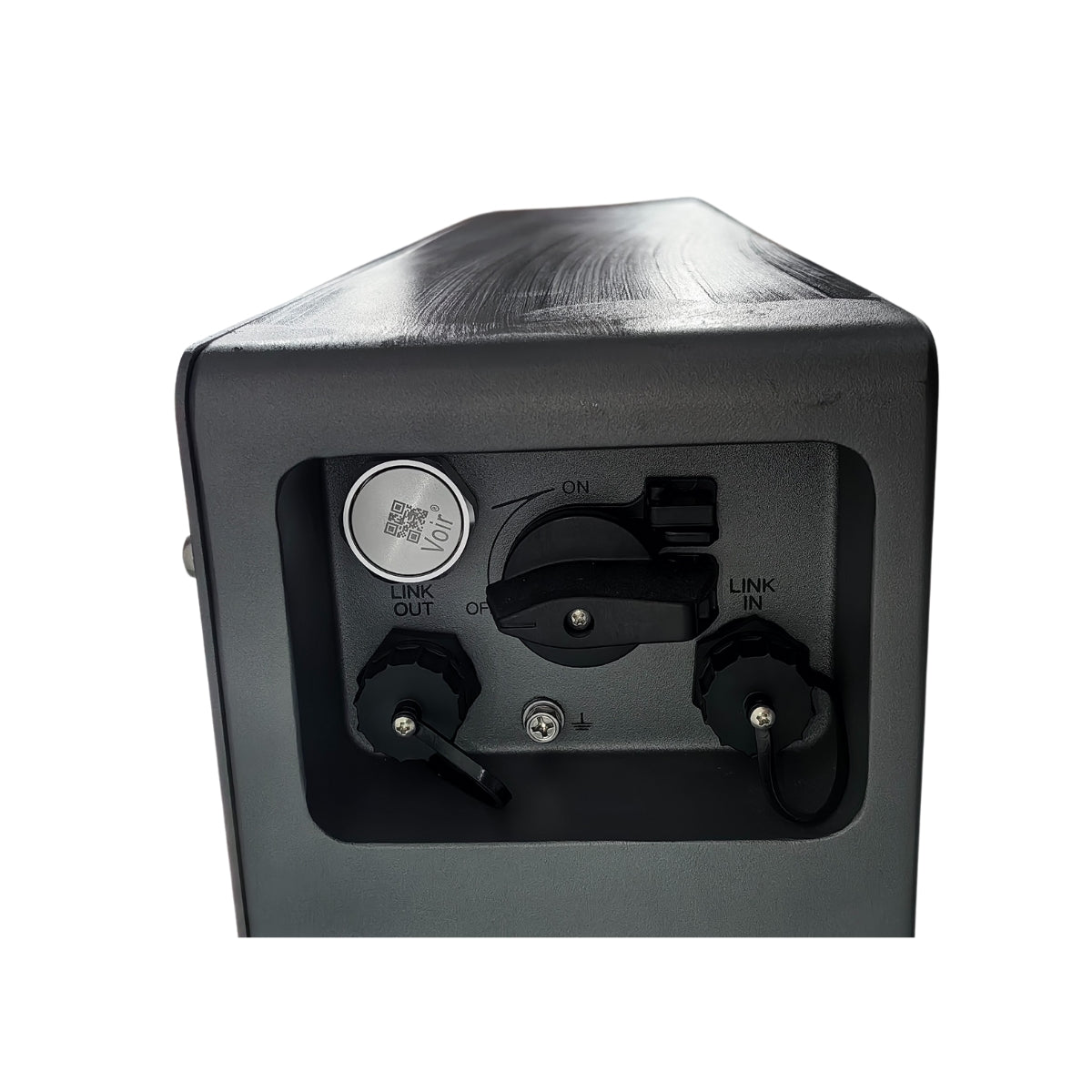

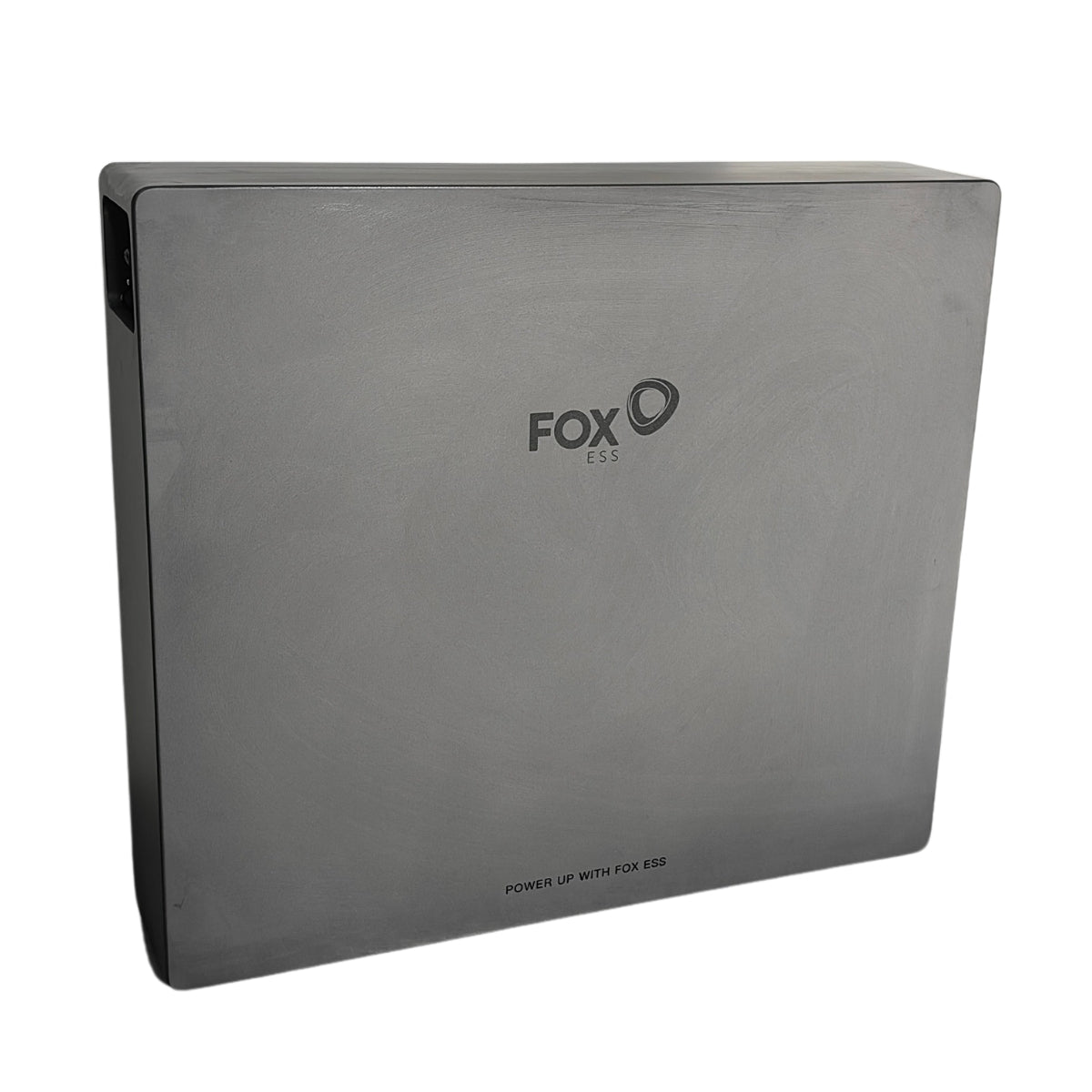

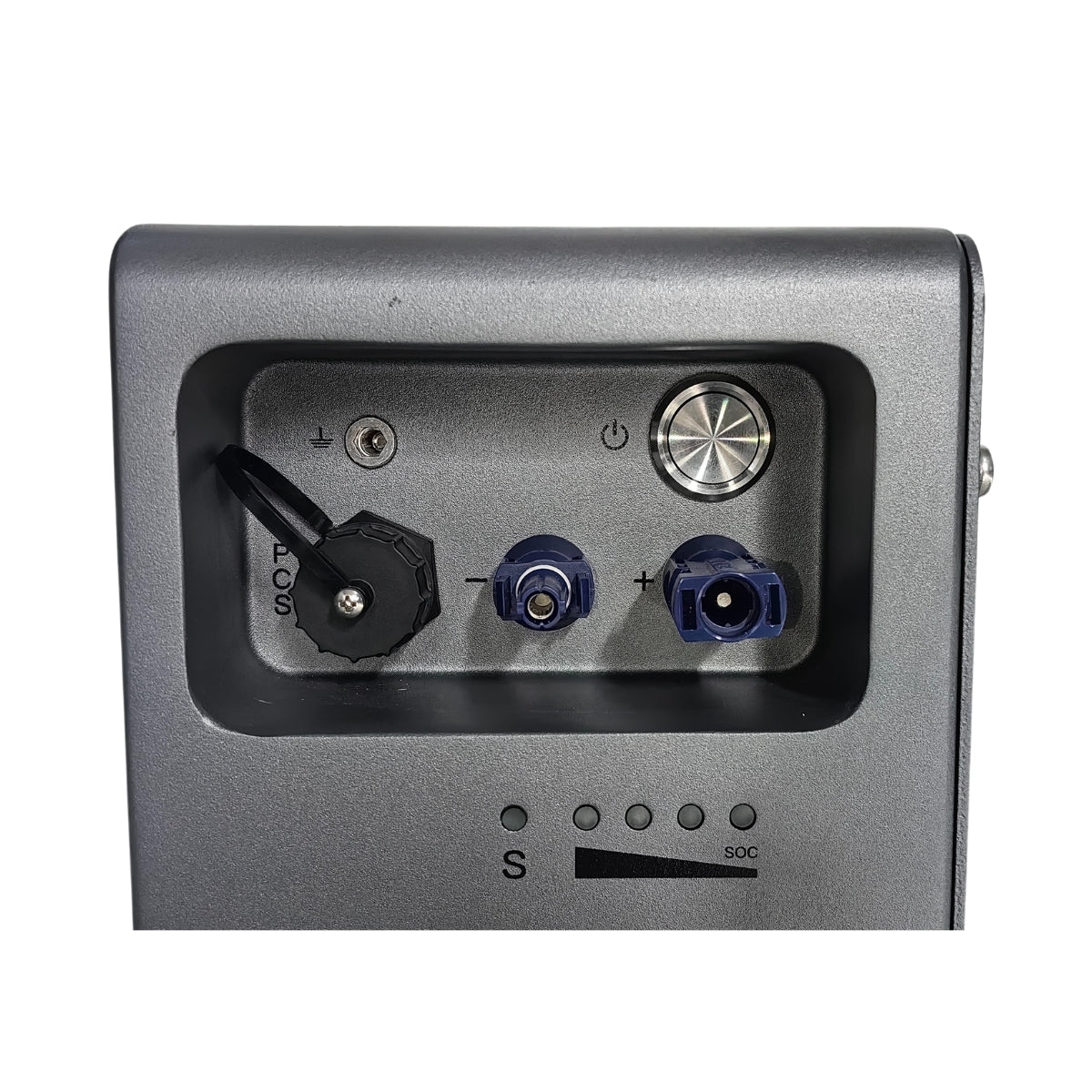

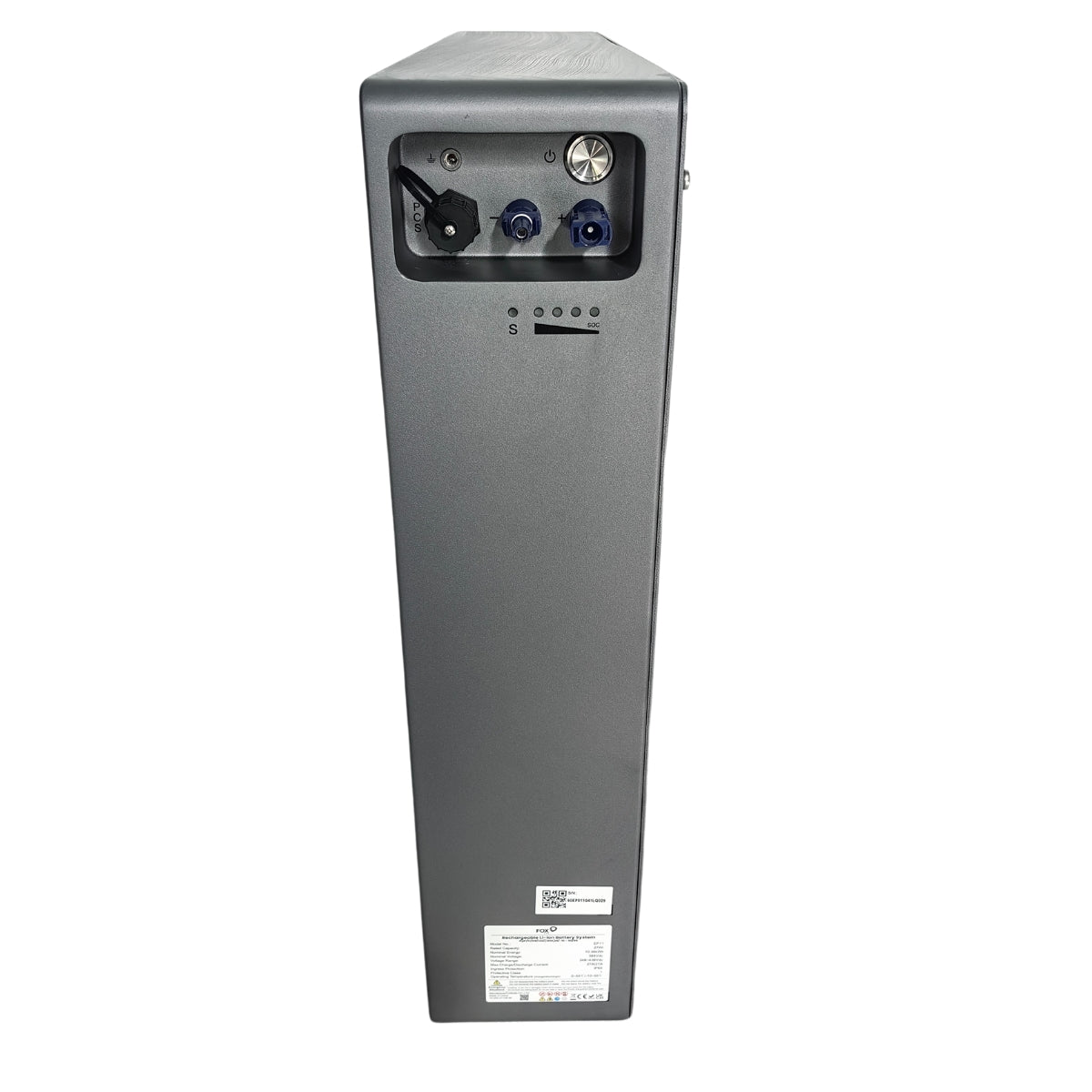

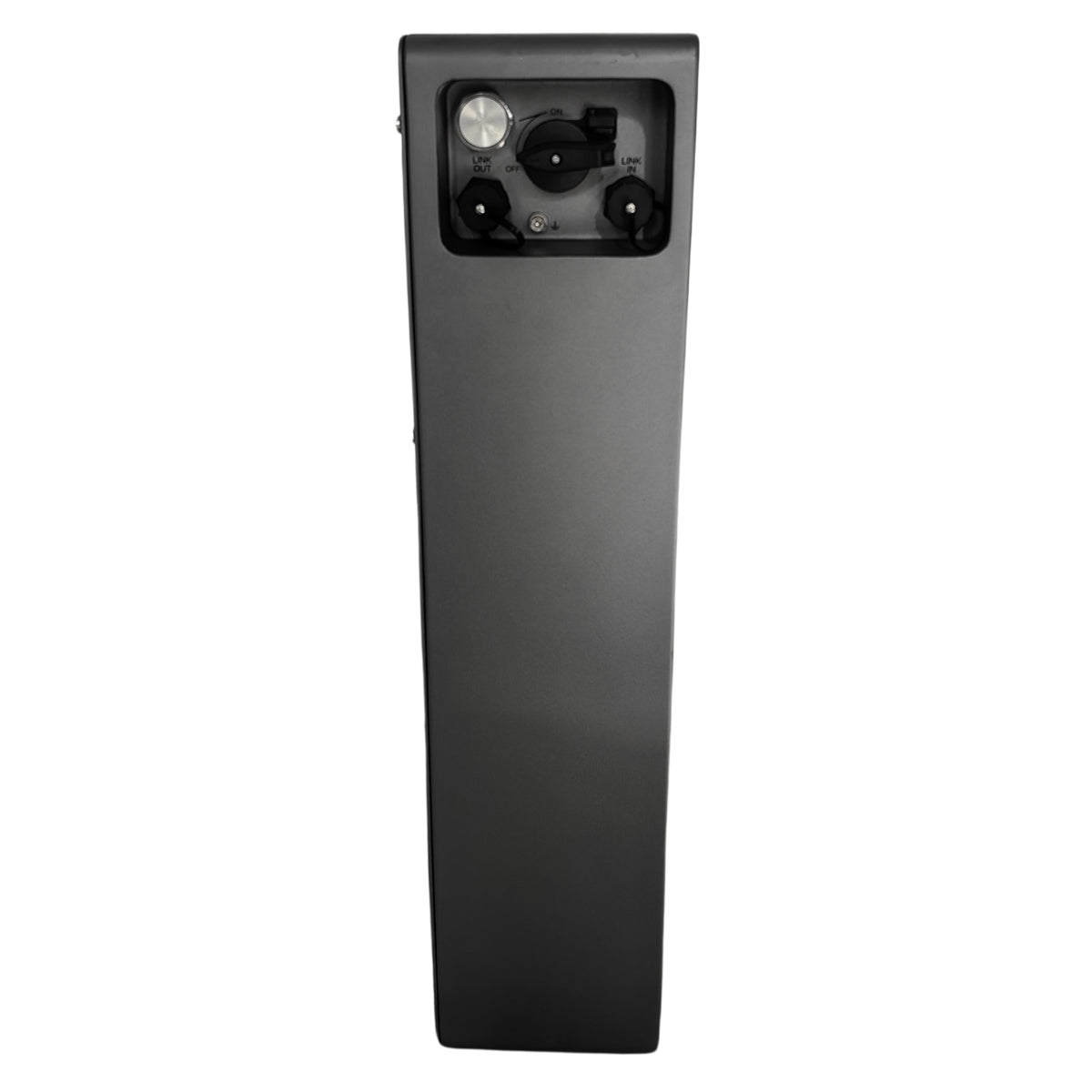

EP10 is an ultra high-performance, scalable battery storage system that allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in parallel allowing for a maximum storage capacity of 41.6kwh.



  • Scalable to 41.6 kWh
  • 90% Depth of Discharge
  • Floor or Wall Mounting
  • Compact & Easy Installation
  • IP65 Protection Level
  • High Voltage and High Efficiency



Fox ESS EP10 High Voltage Storage Battery Specifications

Specification EP10
Compatible PCS All Series of H1, KH, H3, H3-Pro, US
Battery Type LiFePO4 Prismatic Cell
Nominal Energy [kWh] 10.36
Nominal Voltage [V] 384
Operating Voltage [V] 348 - 438
Max. Charge/Discharge Current [A] 27
Recommend Charge Current [A] 13.5
Peak Discharge Current [A] 65 @60s
Peak Charge Current [A] 32.4 @5s
Battery Pack Round-Trip Efficiency [%] >95
Depth of Discharge [%] 90
Cycle Life >4000
Communication CAN
Display LED*5
Scalability Max. 4 Units in Parallel
Operating Conditions
Installation Location Outdoor/Indoor
Operating Temperature [°C] Charge: 0 - 55, Discharge: -10 - 55
Storage Temperature [°C] 0 - 35
Cooling Method Natural Convection
Humidity [%] 5 - 95 (No Condensing)
Altitude [m] Max. 2000
Mechanical Characteristics
Dimensions (WHD) [mm] 710625147
Weight [kg] 99±2
Certificates
Safety IEC 62619
EMC EN IEC 61000-6-1/3
Transportation UN38.3
Ingress Protection IP65

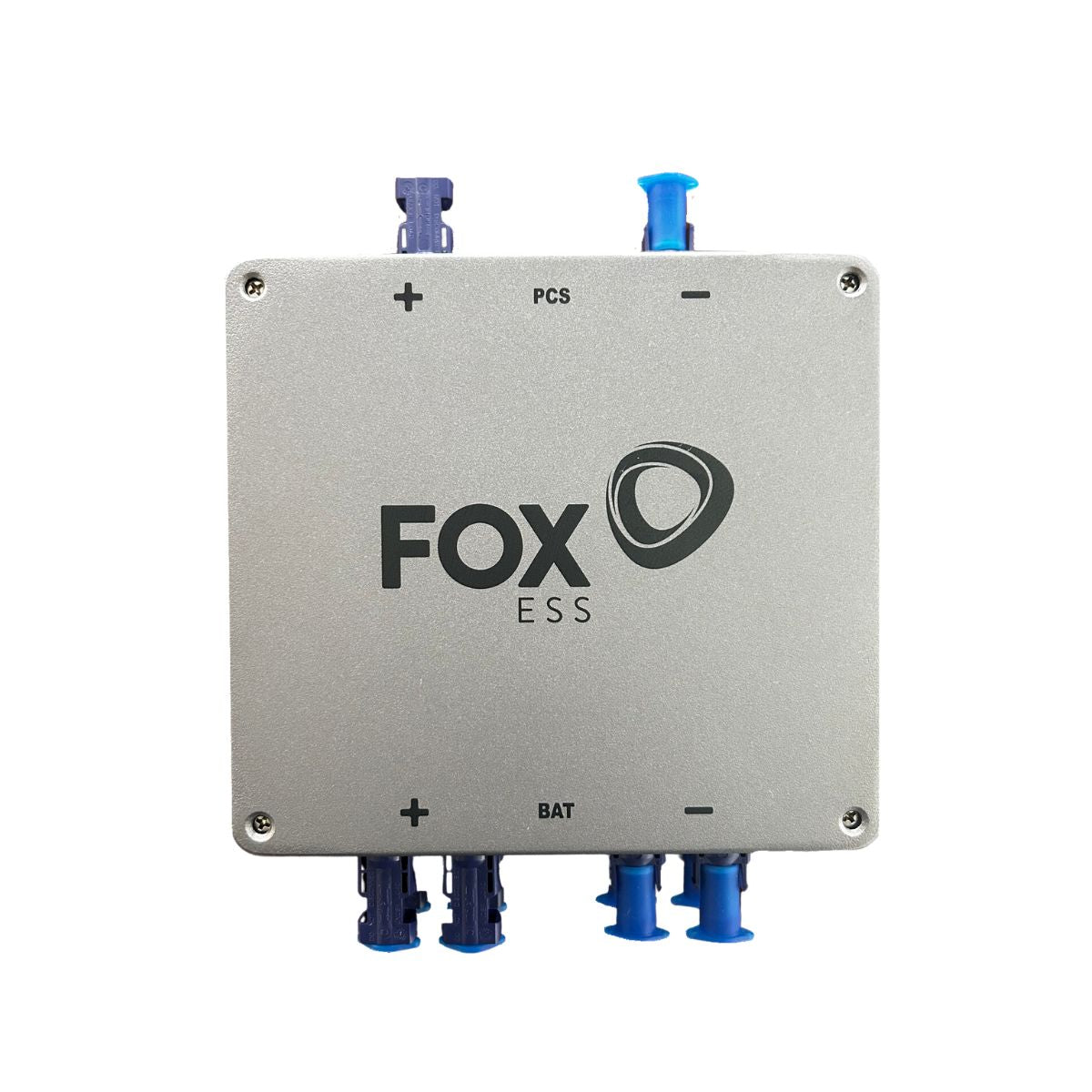

The Foxess Junction Box facilitates the parallel connection of EP batteries. This device allows for the safe linking of a maximum of 4 batteries. Adhering to the manufacturer's instructions ensures safety and optimal performance when paralleling batteries.

MODEL HV-Junction Box-50
Compatible PCS K, H1(G2), H3, H3 PRO, US Series
Nominal Voltage [V] 500
Max. Continuous Current [A] 50
Peak Current [A] 65 @60S
Storage Temperature [°C] -20 ~ 55
Operating Temperature [°C] -20 ~ 70
Optimum Operating Temperature [°C] 15 ~ 30
Humidity [%] 5 ~ 95 (No Condensing)
Dimensions (W*H*D) [mm] 223*246*89
Weight [kg] 2.2
System Parallel Description Supports 4 battery inputs and 1 load output
Cooling Method Natural Cooling
Installation Location Indoor, Outdoor
Installation Method Wall-mounted
Altitude [m] ≤2000
Ingress Protection IP65
Environmental Requirements ROHS, REACH



Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
