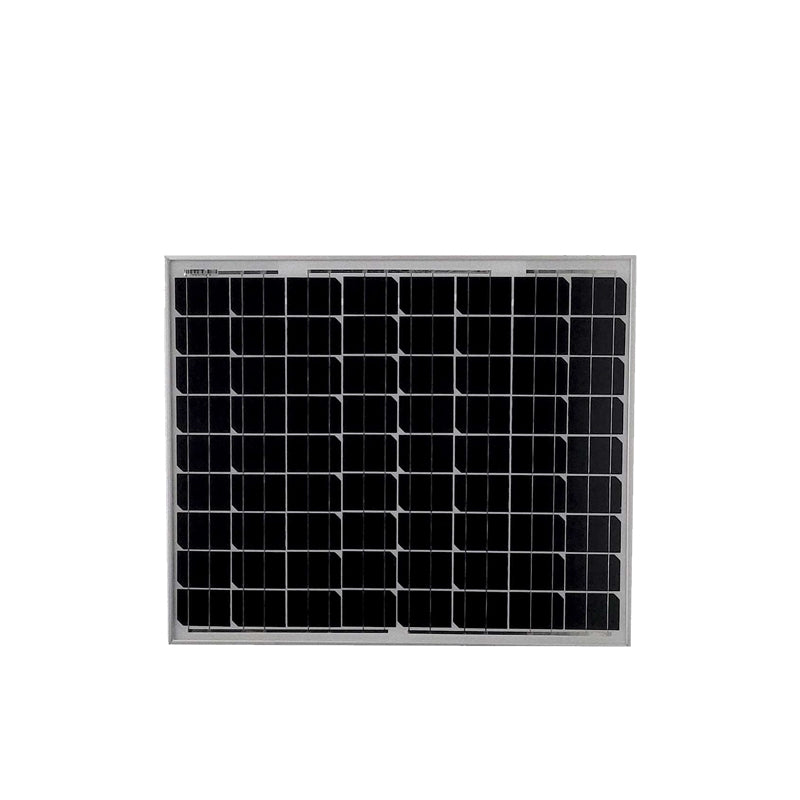

Enersol 60W Poly-Crystalline Solar Panel

Enersol 60W Poly-Crystalline Solar Panel

Enersol 60W Poly-Crystalline Solar Panel

Regular price R 690.00 incl. VAT Sale price R 575.00 incl. VATSave R 115
R 50000 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Product Description

Poly Crystalline: When we combine two of the best technologies in the market, they provide even higher energy efficiency of up to 22% and justifies high capital expenditure of a retail solar power system. Mono PERC Solar Panels are ideal for Commercial and Utility-scale Projects due to the technology that combines rear wafer surface passivation and local rear contacts to maximise light capture.

Features

  • Off-Grid
  • Anti Reflective- Shock Resistant tempered glass
  • Suitable for AC and DC applications
  • Reliable and Flexible product range
  • 5 Year Warranty

Mechanical Parameters

  • Cell Orientation: 72(18*4)
  • Junction Box IP65: 1 bypass-diodes
  • Output Cable: 520m
  • Glass: 3,2mm solar glass
  • Frame Anodized aluminium
  • Weight: 4kg
  • Dimensions: (mm) 570 x 680 x 25

 Electrical Characteristics:

  • Module Type: 60WP
  • Testing Condition: STC
  • Maxim Power: 60
  • Open Circuit Vintage (V): 22.65
  • Short Circuit current (A): 3.46
  • Voltage at Maximum Power (V):18.31
  • Current at Maximum Power (A):3.28
  • Module Efficiency: 15, 48%: 15.58%

 Operating Parameters:

  • Operational Temp: Minus 40C to 85C
  • Operation Temp: 40C to 85%
  • Power Output Tolerance: 0-+Wp
  • Maximum System Voltage: 1500V
  • Maximum Series Fuse Rating: 20A
  • Nominal Operating Cell Temperature: 48C + 2C

Temperature Ratings STC

  • Temperature Coeffecient of is (+) 0,04%/K
  • Temperature Coeffecient of is (+) 0,30%/K
  • Temperature Coffecient of Pmax (-) 40%/K

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
