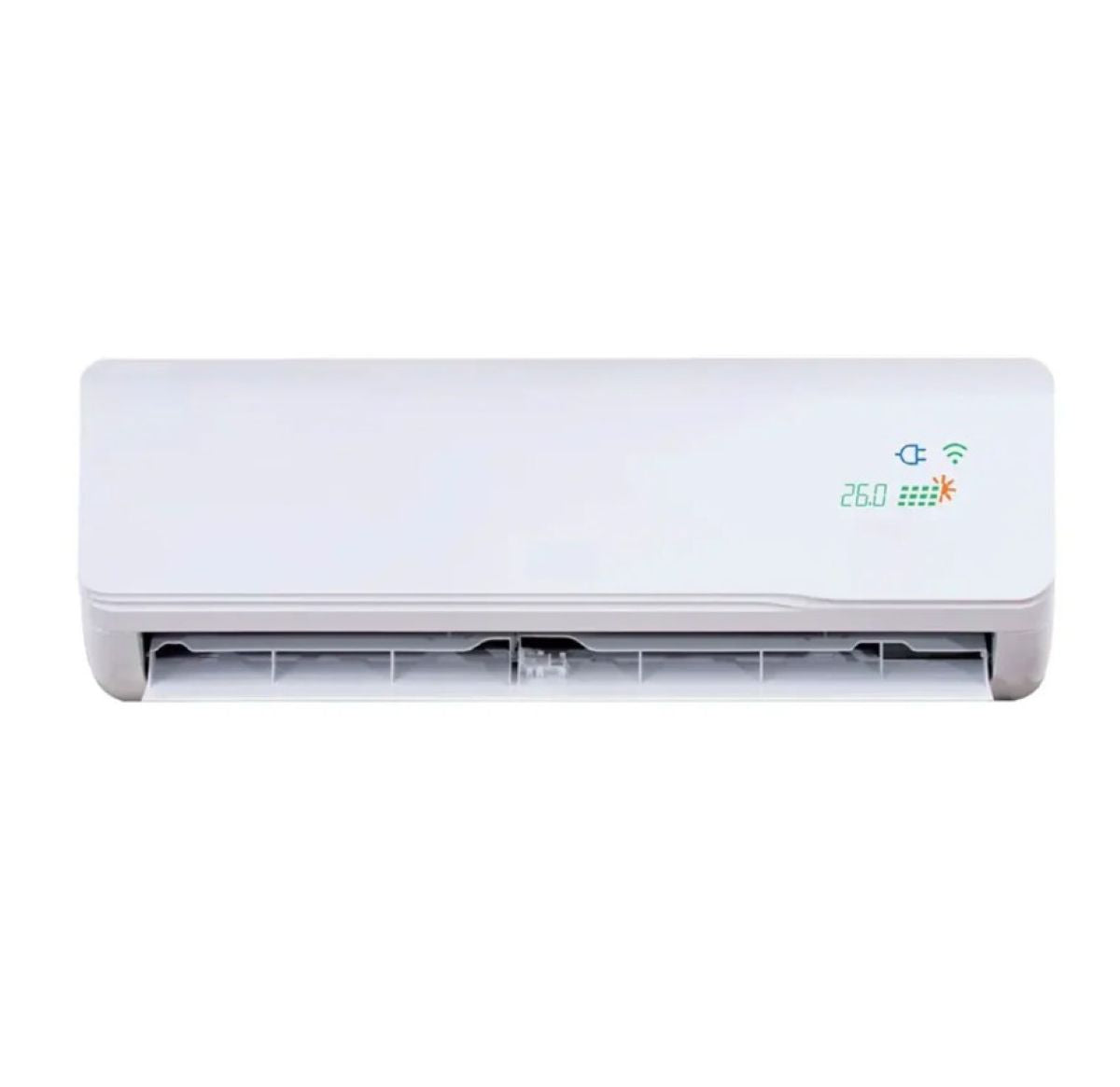

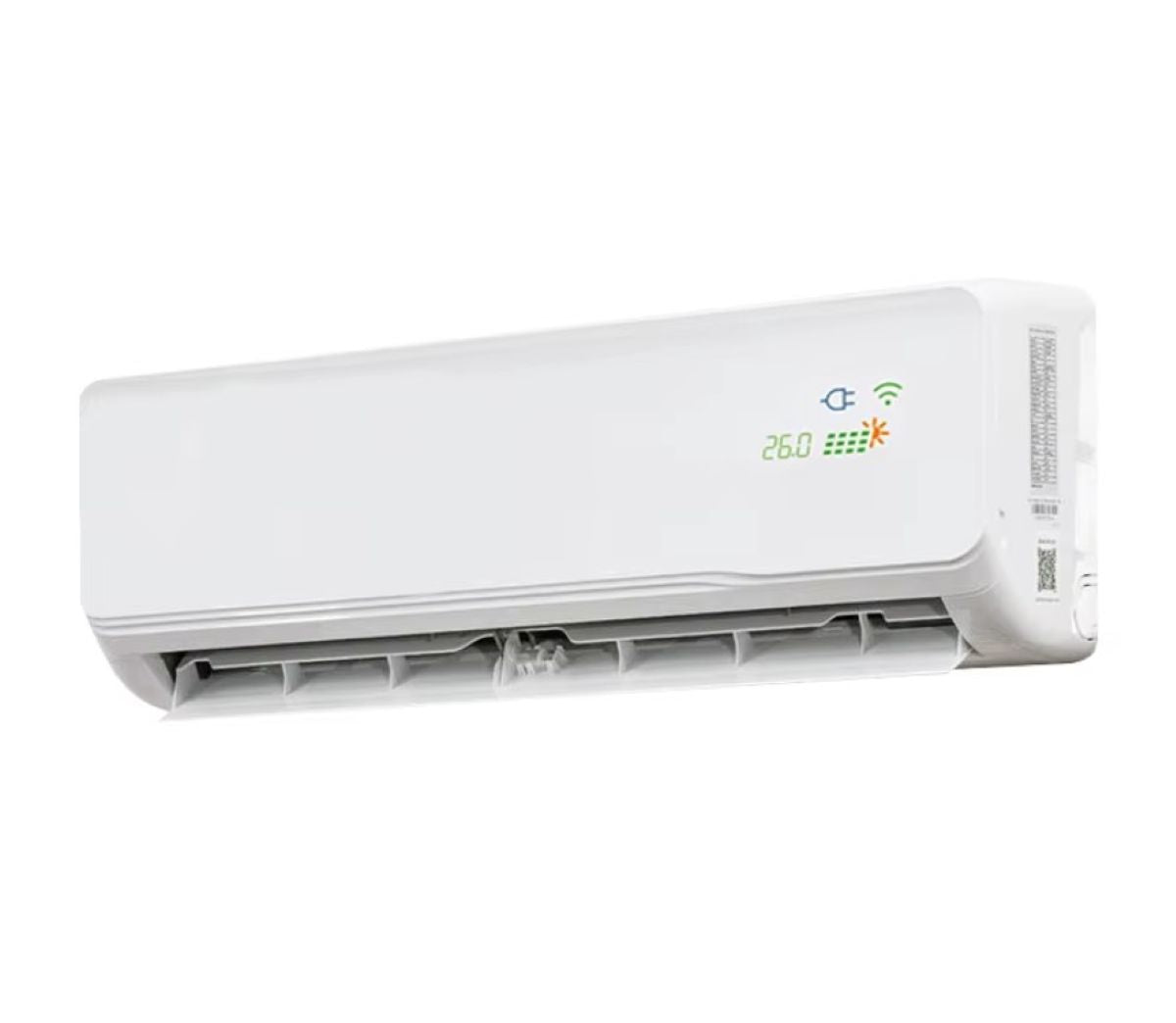

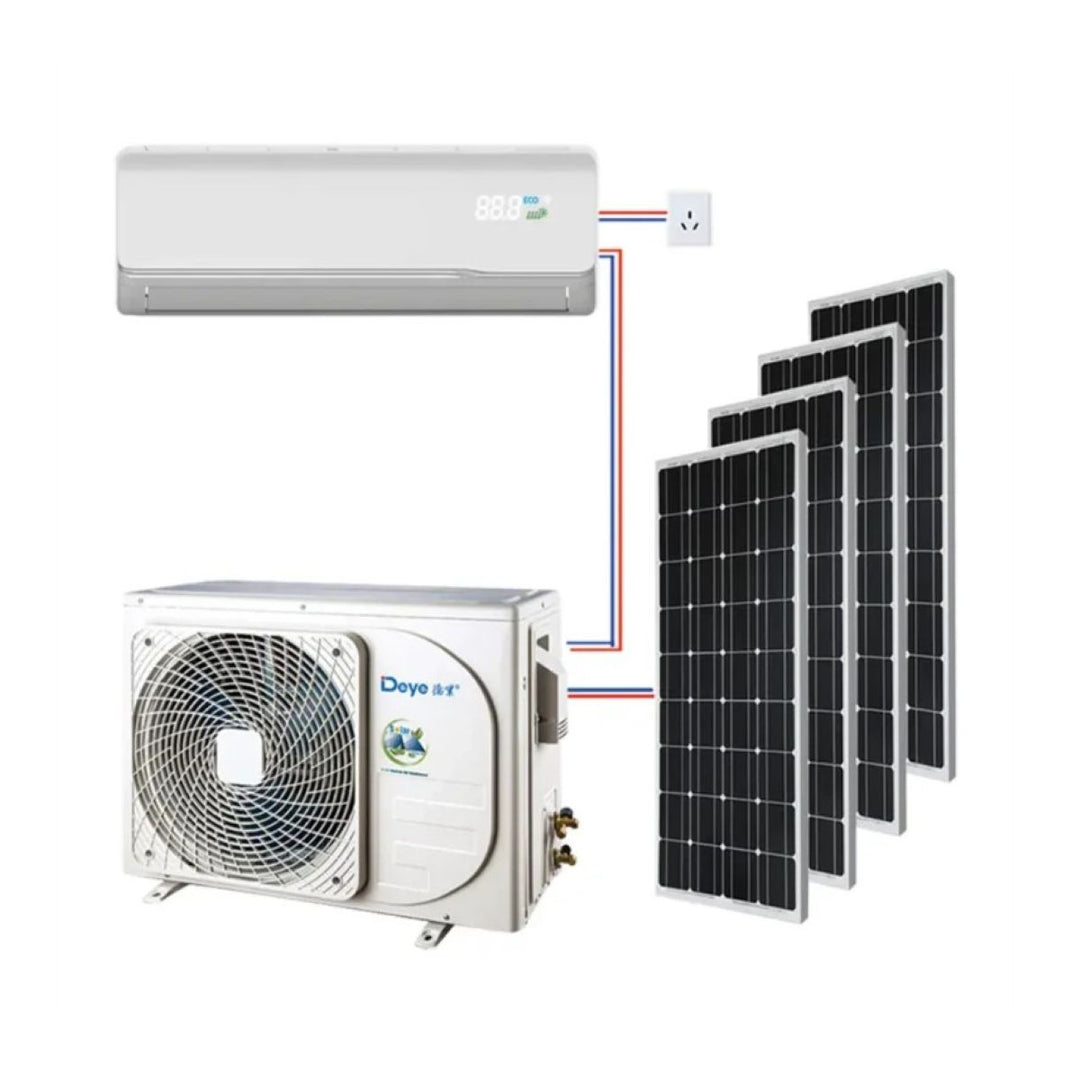

Keep your home cool in the summer and warm in the winter with this energy-efficient hybrid air conditioner. The Deye Hybrid ACDC Solar Air Conditioner requires no batteries and only a few photovoltaic (PV) panels to deliver significant energy savings.

During the day, when cooling is most needed, the unit can operate partially or entirely on solar power, achieving maximum efficiency. At night, its advanced energy-saving technology continues to reduce power consumption.

The built-in Wi-Fi functionality allows you to control the unit remotely, set daily and weekly timers, and view AC/DC energy usage and historical data.

Key Features

• 100% energy savings during daytime with solar panel-only operation
• T3 compressor for reliable performance in high temperatures
• AC grid power limiter (adjustable from 0–600W)
• Three operation modes: AC power, DC power, and AC+DC mix (Auto Balance)
• No inverter, battery, or charge controller required
• Fully DC-driven system
• Wide operating temperature range: -10℃ to 58℃
• Wi-Fi enabled with remote control, scheduling, and full power consumption monitoring
• Long warranty for extended peace of mind

Technical Specifications

• AC Power Supply: 1Ph 208V–240V / 50–60Hz
• DC Power Input (PV in Series): 80–380V
• DC Power Current: ≤12A
• Recommended Solar Panels: 3–8 × 330W in series
• Cooling Capacity: 6450W (1800–7900W) / 22,000 BTU (6100–27000 BTU)
• Cooling Power Input: 1790W (300–3200W)
• Heating Capacity: 7800W (1800–9100W)
• Heating Power Input: 2290W (300–3500W)
• EER: 3.60 W/W (12.30 BTU/W)
• COP: 3.40 W/W (11.60 BTU/W)
• Dehumidification Capacity: 2.5 L/h
• Compressor: Model 5RD198, 2× Rotary Inverter, Panasonic
• Indoor Fan Motor: BLDC-45W
• Indoor Noise Level (Turbo): 50 dB(A)
• Indoor Dimensions (W×H×D): 1080 × 330 × 237 mm
• Indoor Packing Dimensions: 1140 × 300 × 382 mm
• Indoor Weight (Net/Gross): 15.0 / 18.5 kg
• Outdoor Fan Motor: BLDC-75W
• Outdoor Noise Level: 58 dB(A)
• Outdoor Dimensions (W×H×D): 900 × 700 × 337 mm
• Outdoor Packing Dimensions: 1006 × 755 × 418 mm
• Outdoor Weight (Net/Gross): 50 / 54.5 kg
• Refrigerant Type: R410A
• Max Design Pressure: 4.3 / 1.5 MPa
• Refrigerant Pipe Size (Gas / Liquid): 1/2" / 1/4"
• Max Refrigerant Pipe Length: 25 m
• Max Height Difference: 10 m
• Included Copper Pipe Length: 4 m
• Connection Wire Length: 5 m
• Electronic Expansion Valve: Yes
• Loading Quantity (40" HQ / 20" GP): 115 / 50 sets
