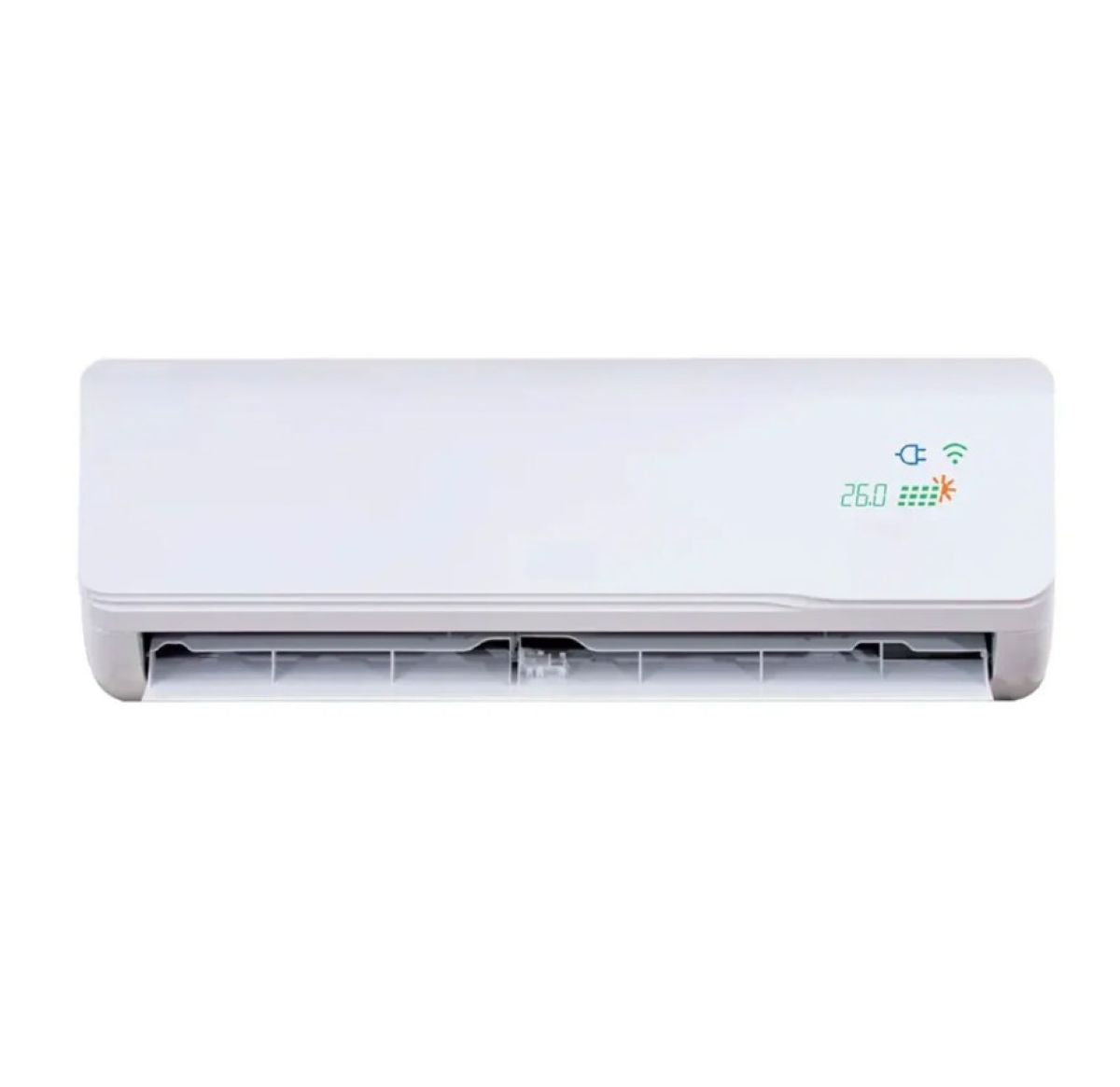

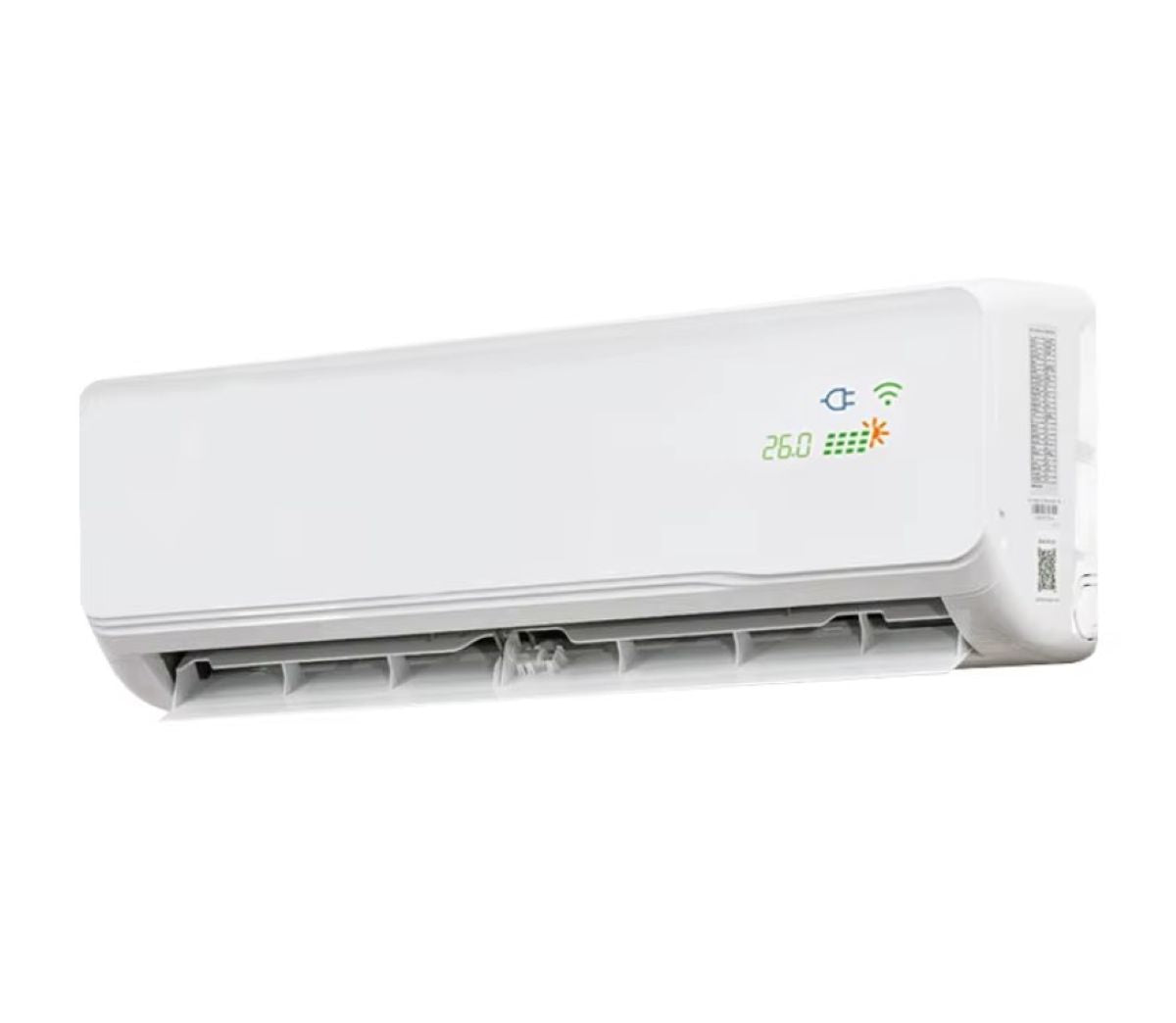

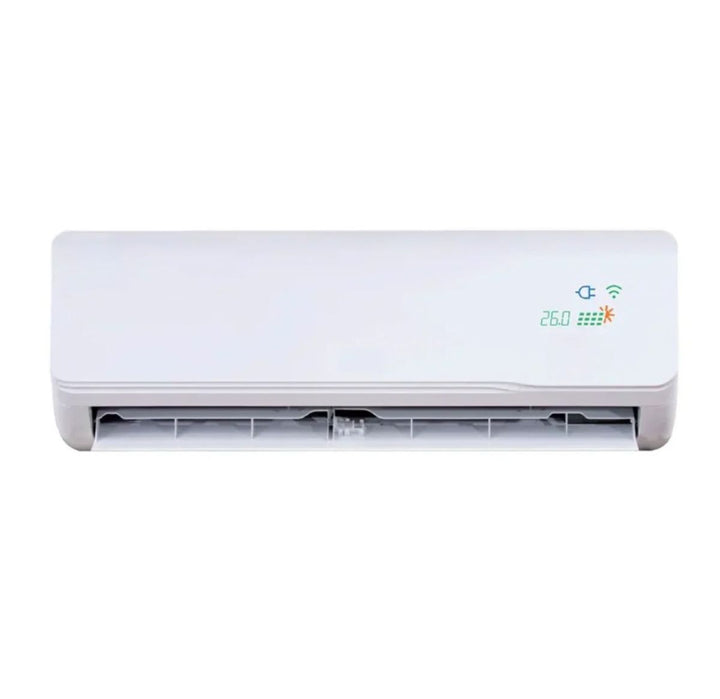

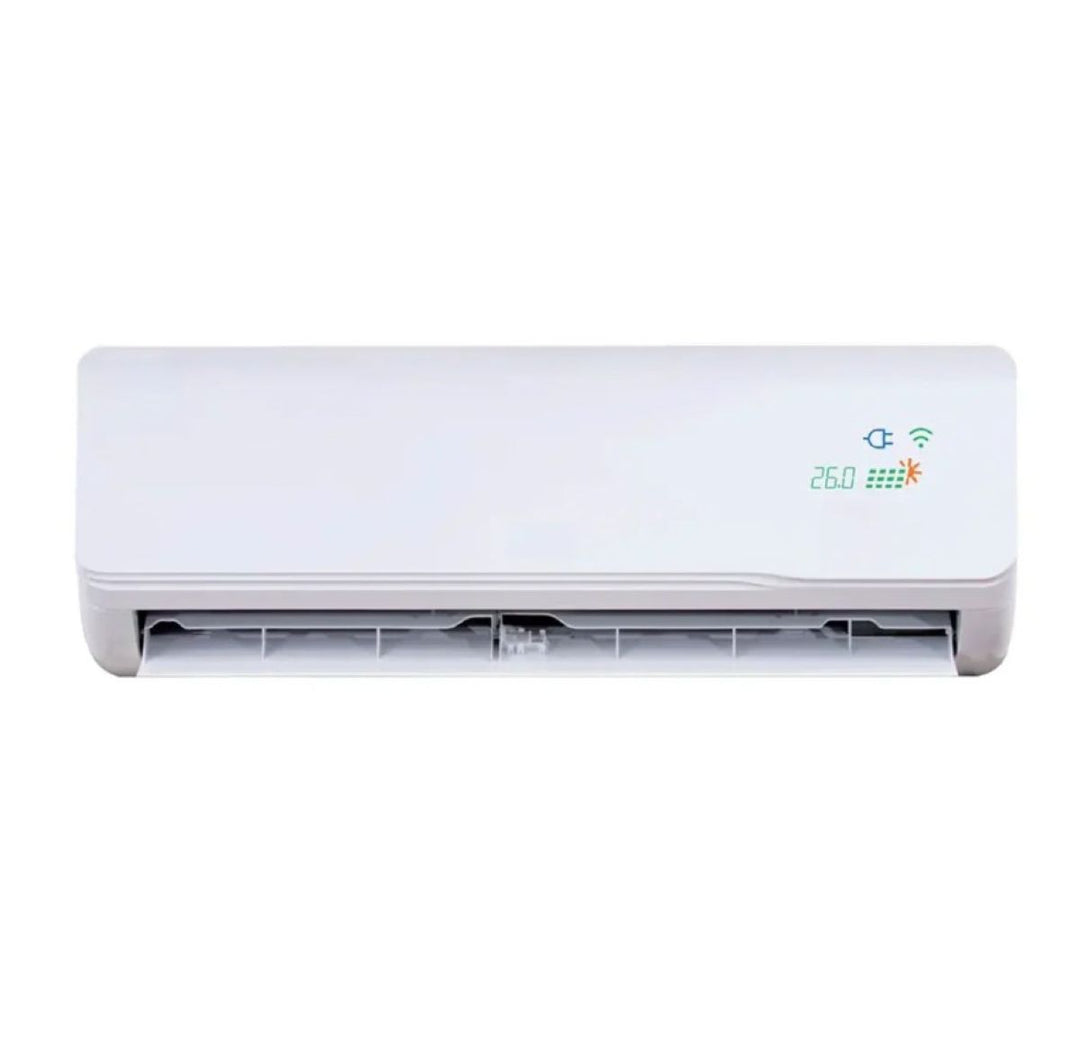

Keep your home cool in summer and warm in winter with this energy-efficient hybrid air conditioner. The Deye Hybrid ACDC Solar Air Conditioner requires no batteries and only a few solar panels to significantly reduce your energy bills.

During daylight hours-when cooling is needed the most-it can operate partially or fully on solar power, making it extremely cost-effective and eco-friendly. At night, it continues to save energy by drawing minimal grid power.

Smart Features

• Daily and weekly programmable timers
• Real-time performance monitoring
• AC & DC power consumption tracking

Key Features

• Available in 12,000 to 24,000 BTU models
• 100% energy savings during daytime (solar-only operation)
• Full DC operation with high-performance T3 compressor
• Configurable AC grid power limiter (0–600W)
• Supports AC, DC, and hybrid AC+DC modes (auto balance)
• No inverter, battery, or charge controller required
• Wide operating temperature range: -10℃ to 58℃
• Long warranty coverage for peace of mind

Technical Specifications

• Model: 12,000 BTU
• AC Power Supply: 1Ph 208V–240V / 50–60Hz
• DC Power Input (PV in Series): 80–380V
• DC Power Current: ≤12A

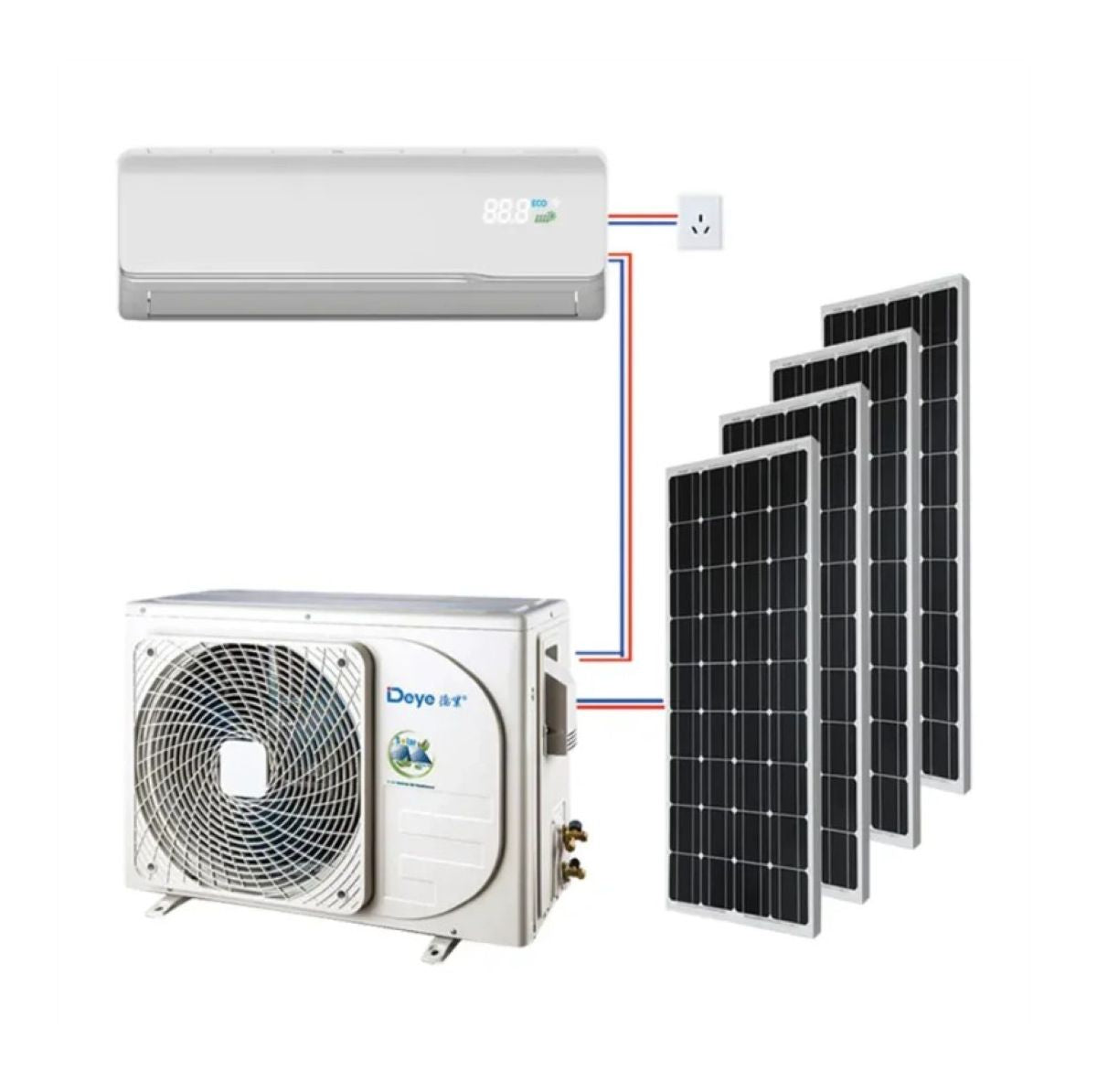

• Advised Solar Panel Setup: 3–4 × 330W in series
• Cooling Capacity: 3510W (900–3900W) / 12,000 BTU (3000–13300 BTU)
• Cooling Power Input: 940W (190–1270W)
• Heating Capacity: 4100W (1000–4500W)
• Heating Power Input: 1170W (190–1700W)
• EER: 3.75 W/W (12.75 BTU/W)
• COP: 3.50 W/W (11.95 BTU/W)
• Dehumidification Capacity: 1.3 L/h
• Compressor Model: WHP04200
• Compressor Type: 2× Rotary Inverter
• Compressor Brand: Highly
• Indoor Fan Motor: BLDC-15W
• Indoor Noise Level (Turbo): 42.5 dB(A)
• Indoor Unit Dimensions (W×H×D): 840 × 205 × 295 mm
• Indoor Packing Dimensions: 920 × 290 × 360 mm
• Indoor Unit Weight (Net/Gross): 9.0 / 12.5 kg
• Outdoor Fan Motor: BLDC-40W
• Outdoor Noise Level: 52 dB(A)
• Outdoor Unit Dimensions (W×H×D): 802 × 564 × 323 mm
• Outdoor Packing Dimensions: 910 × 622 × 405 mm
• Outdoor Unit Weight (Net/Gross): 33.5 / 37.5 kg
• Refrigerant Type: R410A
• Max Design Pressure: 4.3 / 1.5 MPa
• Refrigerant Pipe Size (Gas / Liquid): 3/8" / 1/4"
• Max Refrigerant Pipe Length: 15 m
• Max Height Difference: 8 m
• Included Copper Pipe Length: 3 m
• Connection Wire Length: 4 m
• Electronic Expansion Valve: Yes
• Loading Quantity (40" HQ / 20" GP): 200 / 85 sets
