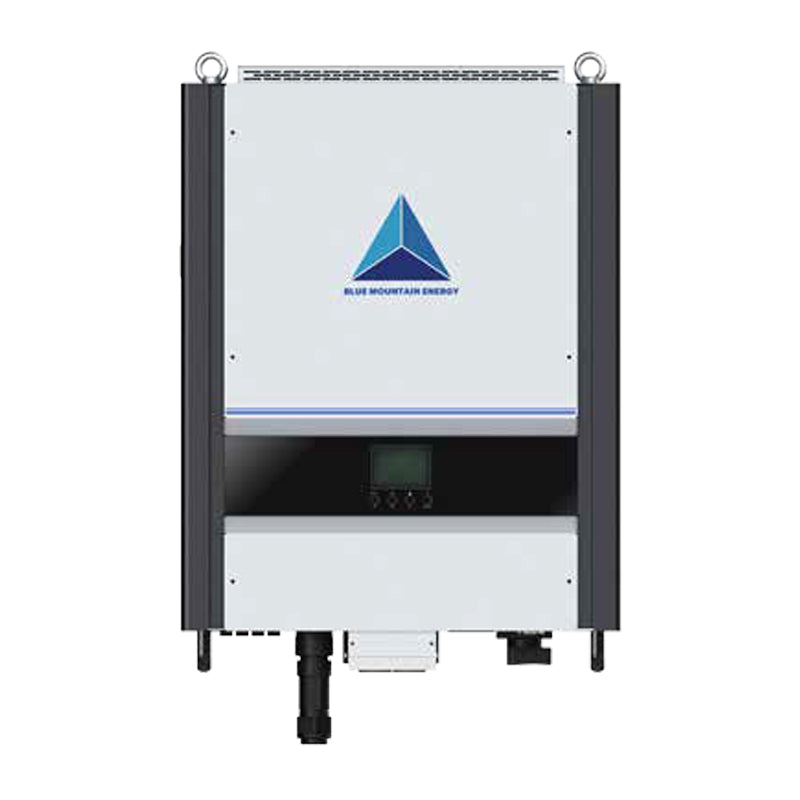

Blue Mountain 15kW 48V 3-Phase Hybrid Inverter

Blue Mountain 15kW 48V 3-Phase Hybrid Inverter

Regular price R 73,321.00 incl. VAT Sale price R 58,656.99 incl. VATSave R 14,664.01
R 51,00608 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Features

  • Self-consumption and feed-in to the grid.
  • Programmable supply priority for PV, Battery or Grid.
  • Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup.
  • User-adjustable battery charging current suits different types of batteries.
  • Built-in Timer for various mode of on/off operation.
  • Multiple communication for USB, RS-232, Modbus and SNMP.
  • Monitoring software for real time status display and control.
  • Custom-made firmware by ODM contract.
  • Parallel operation up to 6 units.
  • SA: NRS 097 certified and COCT Certified

Specifications

  • Phase: 3-phase in / 3-phase out
  • Maximum PV Input Power: 22500 W
  • Rated Output Power: 15000 W
  • Maximum Charging Power: 15000 W

Grid-tie Operation
PV Input (DC)

  • Nominal DC Voltage / Maximum DC Voltage: 720 VDC / 900 VDC
  • Start-up Voltage / Initial Feeding Voltage: 320 VDC / 350 VDC
  • MPP Voltage Range: 400 VDC ~ 800 VDC
  • Number of MPP Trackers / Maximum Input Current: 2 / a: 37.65A; b: 18.6A

Grid Output (AC)

  • Nominal Output Voltage: 230 VAC (p-n) / 400 VAC (p-p)
  • Output Voltage Range: 184 - 264.5 VAC per phase
  • Nominal Output Current: 21.7 A per phase
  • Power Factor > 0.99

Efficiency

  • Maximum Conversion Efficiency (DC/AC): 96%
  • European Efficiency @ vnominal: 95%

Off-grid Operation
AC Input

  • AC Start-up Voltage/Auto Restart Voltage 120 - 140 VAC per phase / 180 VAC per phase
  • Acceptable Input Voltage Range: 170 - 280 VAC per phase
  • Maximum AC Input Current: 40 AC

PV Input (DC)

  • Maximum DC Voltage: 900 VDC
  • MPP Voltage Range: 350 VDC ~ 850 VDC
  • Number of MPP Trackers/Maximum Input Current: 2 / a: 37.65A; b: 18.6A

Battery Mode Output (AC)

  • Nominal Output Voltage: 230 VAC (p-n) / 400 VAC (p-p)
  • Output Waveform: Pure Sinewave
  • Efficiency (DC to AC): 91%

Hybrid Operation
PV Input (DC)

  • Nominal DC Voltage / Maximum DC Voltage: 720 VDC / 900 VDC
  • Start-up Voltage / Initial Feeding Voltage: 320 VDC / 350 VDC
  • MPP Voltage Range: 350 VDC ~ 850 VDC
  • Number of MPP Trackers/ Maximum Input Current: 2 / a: 37.65A; b: 18.6A

Grid Output (AC)

  • Nominal Output Voltage: 230 vac (p-n) / 400 VAC (p-p)
  • Output Voltage Range: 184 - 264.5 VAC per phase
  • Nominal Output Current: 21.7A per phase

AC Input
AC Input

  • AC Start-up Voltage/Auto Restart Voltage 120 - 140 VAC per phase / 180 VAC per phase
  • Acceptable Input Voltage Range: 170 - 280 VAC per phase
  • Maximum AC Input Current: 40 AC

Battery Mode Output (AC)

  • Nominal Output Voltage: 230 VAC (p-n) / 400 VAC (p-p)
  • Efficiency (DC to AC): 91%

Battery & Charger

  • Nominal DC Voltage: 48 VDC
  • Maximum Charging Current default: default 60A, 5A - 300A (adjustable)

General
Physical

  • Dimension, d x w x h (mm): 219 x 650 x 820
  • Net Weight (kgs): 62

Interface

  • Communication Port Intelligent Slot: rs-232, usb and dry contact, optional bms box available, optional snmp, modbus, wifi, bms and as-400 cards available

Environment

  • Humidity: 0 ~ 90% rh (non-condensing)
  • Operating Temperature: -10 to 55°c
  • Altitude: 0 ~ 1000 m

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
