Description

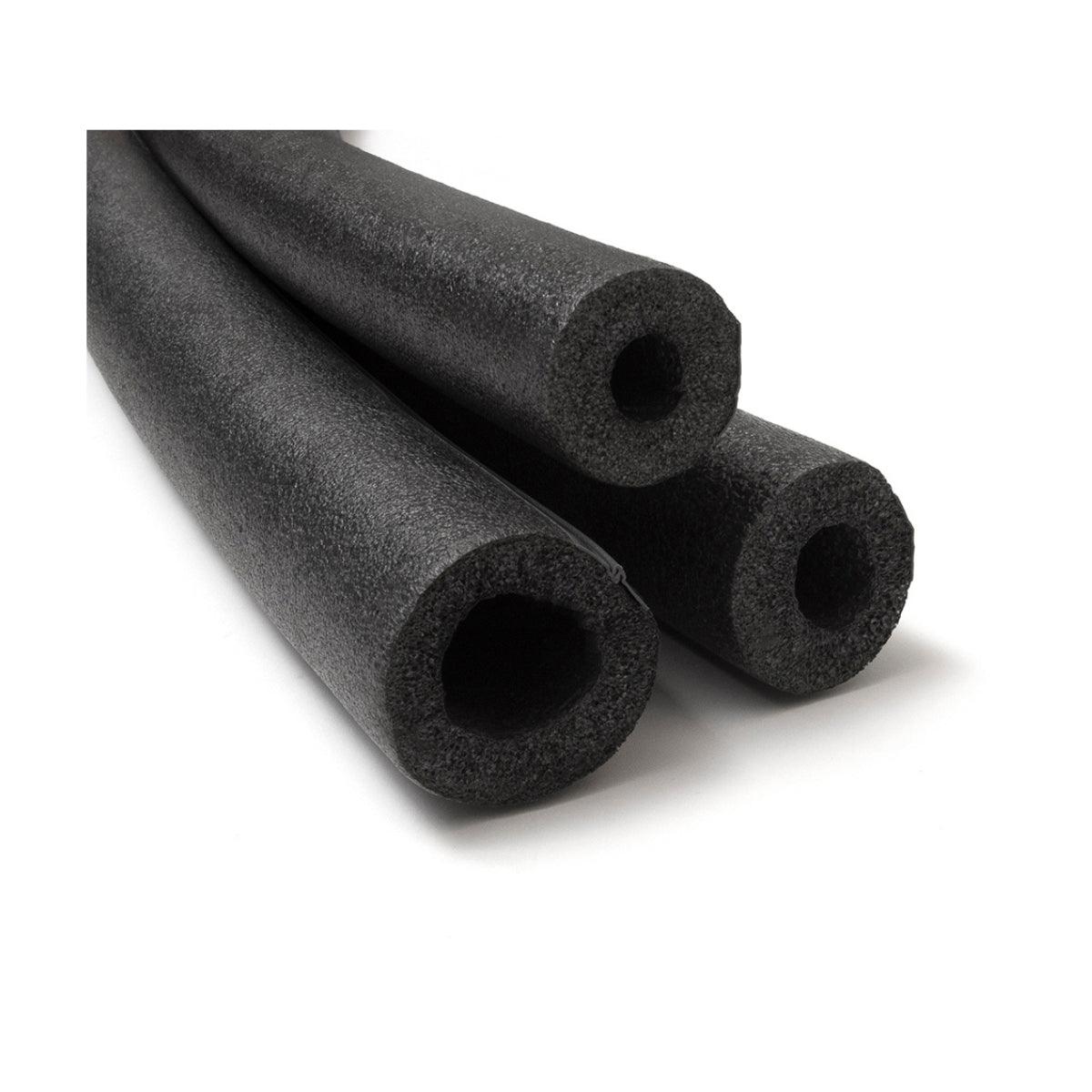

Ziplag pipe Insulation lagging is manufactured from non cross-linked flexible expanded polyethylene with quick locking system.

Non cross-linked expanded polyethylene foams do not weather well over extended periods of time if exposed to direct UV light. It is recommended that the product should be covered or painted with a suitable PVA paint if exposed to direct UV light.

Applications

• Used for pipe insulation in hot and cold liquid applications. Commercial, Home, Industrial (Geyser pipes, Solar water Heating, Refrigeration).

Features

• Materials: Non cross-linked expanded polyethylene foam.
• Colour: Grey
• Fully closed-cell foam.
• Helps to maintain the core temperature of liquids over extended periods of time in hot and cold piping applications.
• Effective solution to reducing electricity and energy costs.
• Noticeably slows down the time water pipes take to freeze [external temperature dependent].
• Noticeably slows down the time water pipes take to cool down in hot water applications [solar & geyser etc.]
• Acoustic barrier to reduce noise in pipe applications.
• Low thermal conductivity, vapor transmission & water absorption.
• Non-toxic & does not attract rodents.
• Fully recyclable & environmental friendly.
• Supplied in various diameters to meet your insulation requirements.
• Flexible and easy to cut and install.

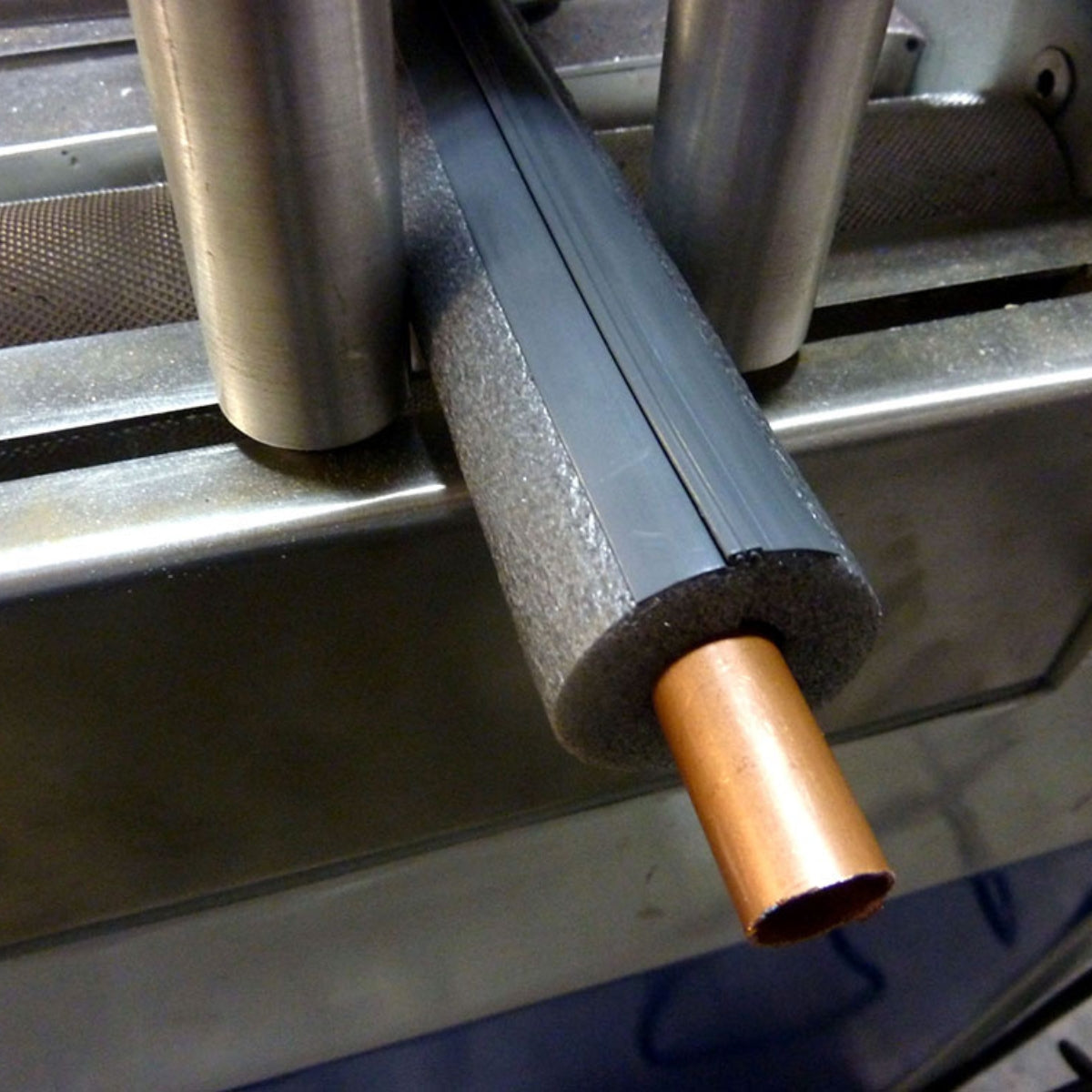

• Supplied with quick zip lock closing system.
• Product Dimensions(MM): Wall with Internal diameters of 15mm, 22mm, 25 mm , 28 mm, 35 mm or 42 mm / 2m length only.
• Product Dimensions(MM): Wall with Outer diameters of 45mm, 52mm, 55mm, 58mm, 65mm and 72mm
• Steel Pipes: 6NB, 15NB, 18NB, 20NB, 25NB, 32NB

Technical Specification

• Temperature Range:+80°C to -40°C
• Thermal Conductivity Test Method SABS:ASTM C518
• R-Value: 10mm *0.210m2 .K/W
• K-Value: 10mm *0.049 W/m.K
• R-Value: 15mm **0.302m2 .K/W
• K-Value: 15mm **0.051 W/m.K
• R-Value: 20mm *0.393m2 .K/W
• K-Value: 20mm *0.052 W/m.K
