Materials
- Pump housing: Grey cast iron (EN-GJL-200).
- Impeller: Plastic (PP - 40% GF).
- Pump shaft: Stainless steel (X40Cr13).
- Bearing: Carbon, metal impregnated
Operating data
- Fluid to be pumped: Water 100 %.
- Fluid temperature: 20 °C.
- Min. fluid temperature: -10 °C.
- Max. fluid temperature: 110 °C.
- Maximum operating pressure: 10 bar.
- Minimum suction head: @50 °C/ 0,5 m; @ 95 °C/3 m; 110 °C: /10 m.
Motor/electronics
- Electromagnetic compatibility: EN 61800-3.
- Emitted interference: EN 61000-6-3.
- Interference resistance: EN 61000-6-2.
- Mains connection: 1~230V/50 Hz.

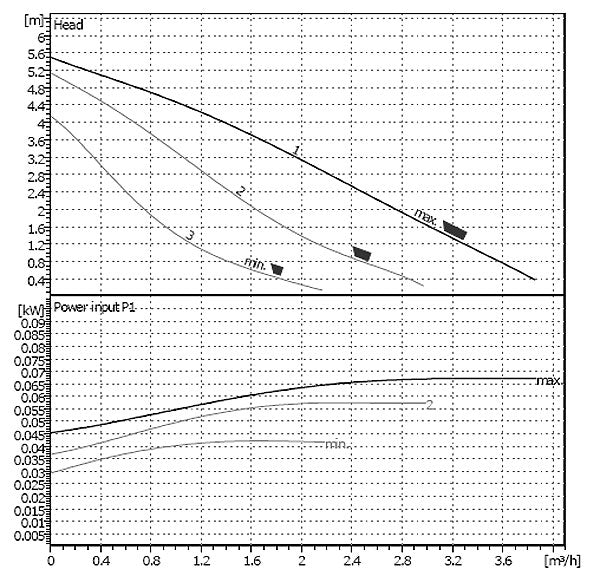

- Power consumption P1: 0,03 kW ... 0,084 kW.
- Max. speed: 2510 l/min ... 2840 l/min.
- Current consumption: 0,2 A ... 0,36 A.
- Protection class: IP 44.
- Threaded cable connection: PG 1x11.
Fitting dimensions
- Pipe connection: G 1½ PN 10.
- Overall length: 180 mm.
- Weight approx.: 2,7 kg.
Includes 22mm Cast Iron Unions
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
