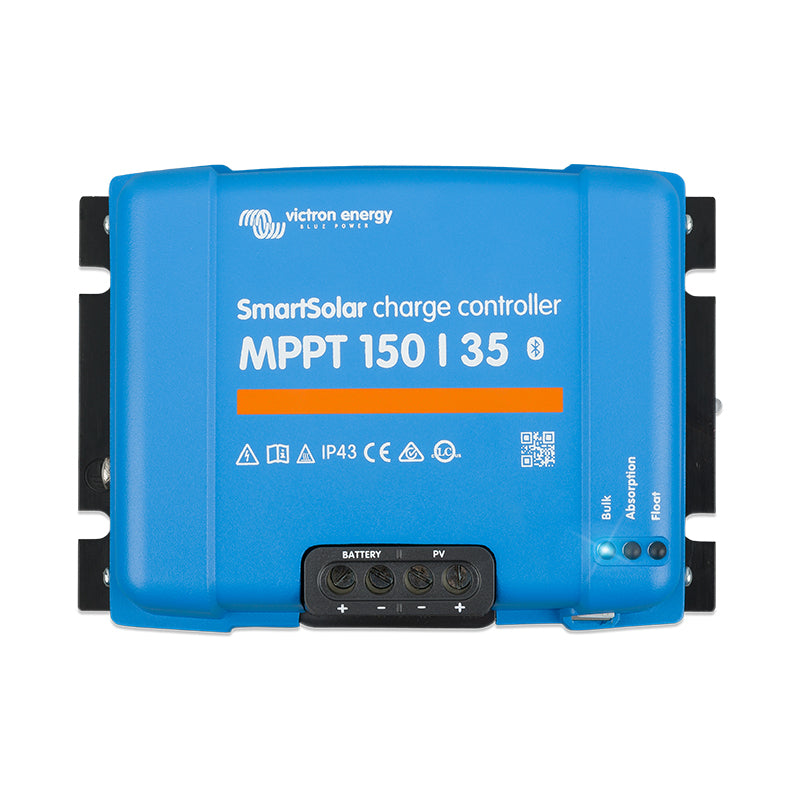

Victron SmartSolar 150V-35A MPPT Charge Controller
Technical Specifications
SmartSolar Charge Controller: 150/35
- Battery voltage: 12/24/48V Auto Select (software tool needed to select 36V).
- Rated charge current: 35A.
- Nominal PV power, 12V: 500W.
- Nominal PV power, 24V: 1000W.
- Nominal PV power, 36V: 1500W.
- Nominal PV power, 48V: 2000W.
- Max. PV short circuit current: 40A.
- Maximum PV open circuit voltage: 150V absolute maximum coldest conditions (145V start-up and operating maximum).
- Maximum efficiency: 98%.
- Self-consumption: < 20mA @ 12V / 15mA @ 48V.
- Charge voltage 'absorption' Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth).
- Charge voltage 'float' Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth).
- Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm.
- Temperature compensation: -16 mV / -32 mV / -64 mV / °C.
- Operating temperature: -30 to +60°C (full rated output up to 40°C).
- Humidity: 95%, non-condensing.
- Maximum altitude: 5000m (full rated output up to 2000m).
- Environmental condition: Indoor, unconditioned.
- Data communication port: VE. Direct.
Enclosure
- Colour: Blue (RAL 5012).
- PV terminals: 16 mm² / AWG6
- Protection category: IP43 (electronic components), IP22 (connection area).
- Weight: 1.25 kg.
- Dimensions (h x w x d): 130mm x 186mm x 70mm.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
