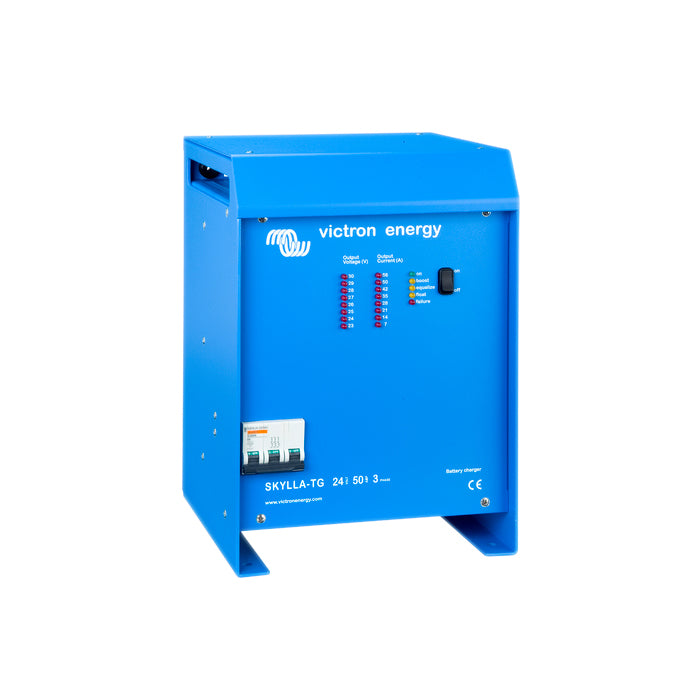

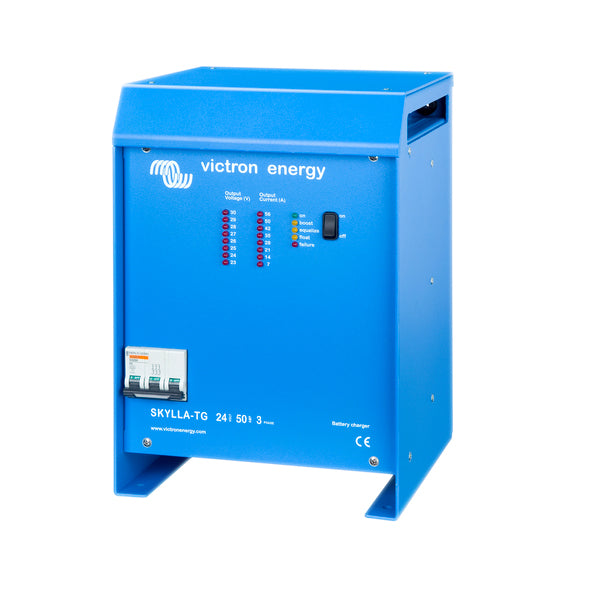

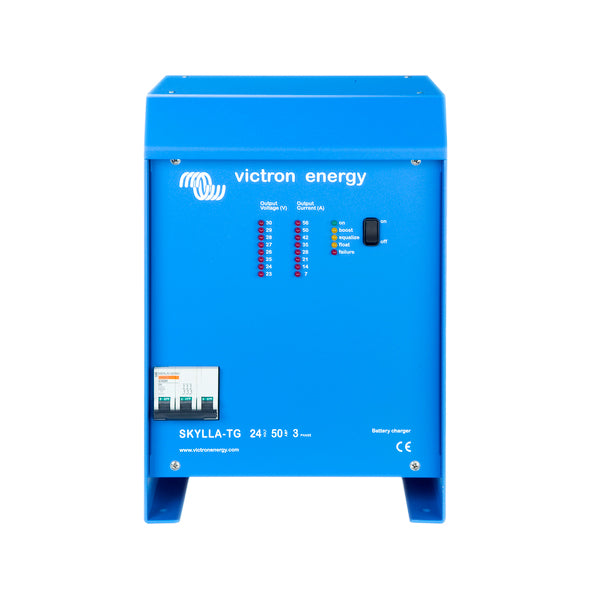

Victron Skylla-TG 24/50 Battery Charger

Technical Data

• Model: Skylla TG 24/50 TG
• Input voltage (VAC): 230 V.
• Input voltage range (VAC): 185-264 V.
• Input voltage range (VDC): 180-400 V.
• Frequency: 45-65
• Power factor: 1
• Charge voltage 'absorption' (V DC): 28.5
• Charge voltage 'float' (V DC): 26.5
• Charge current house batt. (A) (2): 50
• Charge current house batt. at 110 VAC (A) (3): 30
• Charge current starter batt. (A): 4
• Charge characteristic: IUoUo (three step)
• Battery capacity (Ah): 150-500
• Temperature sensor: Yes
• Can be used as power supply: Yes
• Remote alarm: Potential free contacts 60V / 1A (1x NO and 1x NC)
• Forced cooling: Yes
• Protection (1): a,b,c,d
• Operating temp. range: -40 to +50°C (-40 - 122°F)
• Humidity (non-condensing): max 95%

Enclosure

• Material & Colour: Aluminium (blue RAL 5012).
• Battery-connection: M8 studs
• 230 VAC-connection screw-clamp: 10mm² (AWG 6).
• Protection category: IP 21.
• Weight kg: 5.5 kg.
• Dimensions (hxwxd in mm): 365mm x 250mm x 147
