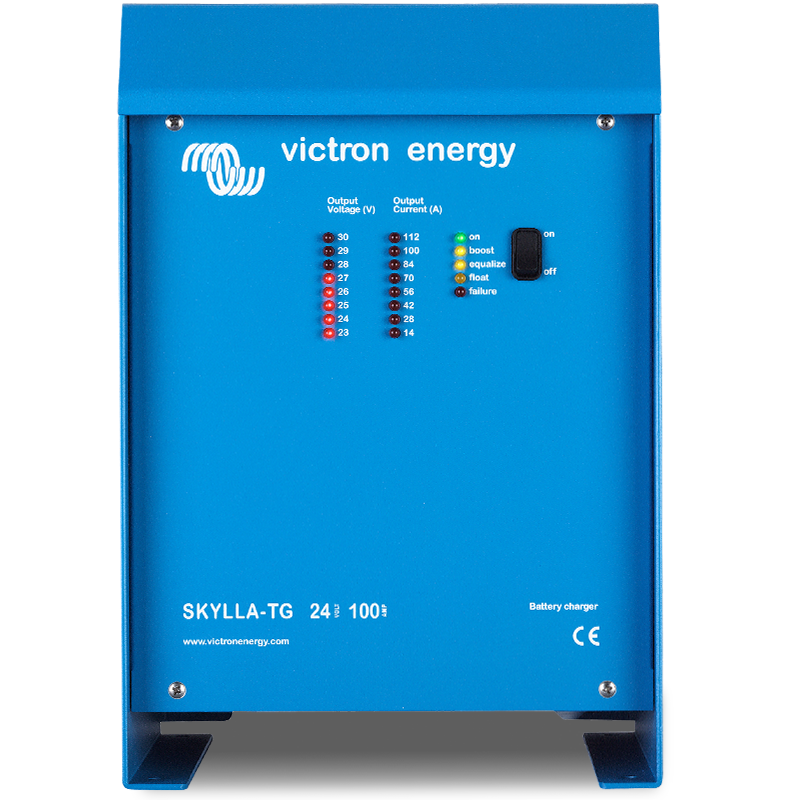

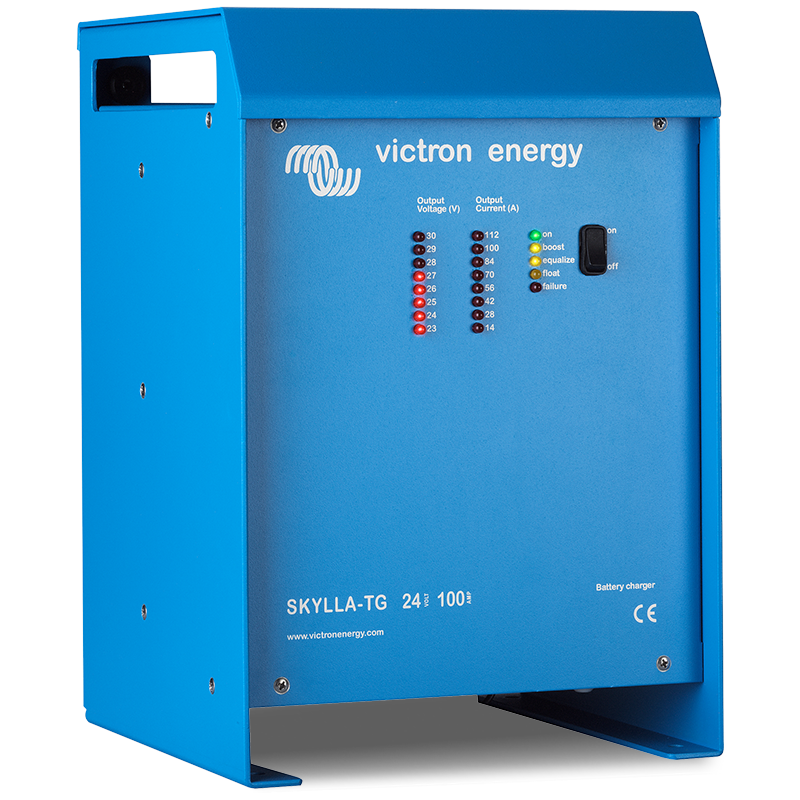

Victron Skylla-TG 24-100 100A 24V Battery Charger

Victron Skylla-TG 24-100 100A 24V Battery Charger

Regular price R 31,317.00 incl. VAT Sale price R 21,351.95 incl. VATSave R 9,965.05
R 18,56691 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Features

  • Perfect chargers for any type of battery.
  • Suitable for AC and DC supply (AC-DC and DC-DC operation).
  • Controlled charging.
  • Use of TG Chargers as a power supply.
  • To increase battery life: temperature compensation.
  • Battery voltage sense.

Technical Data

  • Model: Skylla 24/100 TG.
  • Input voltage (VAC): 230V.
  • Input voltage range (VAC): 185-264 V.
  • Input voltage range (VDC): 180-400 V.
  • Frequency (Hz): 45-65 Hz.
  • Power factor: 1.
  • Charge voltage 'absorption' (VDC): 28.5 V.
  • Charge voltage 'float' (VDC): 26.5 V.
  • Charge Current house battery (A): 100 A.
  • Charge Current starter battery (A): 4 A.
  • Battery capacity (Ah): 500-1000 Ah.
  • Temperature sensor: Yes.
  • Can be used as power supply: Yes.

Enclosure

  • Material & Colour: Aluminium (blue RAL 5012).
  • Battery-connection: M8 studs.
  • 230 VAC-connection screw-clamp: 2,5mm² (AWG 6).
  • Protection category: IP 21.
  • Weight kg: 10 kg.
  • Dimensions (hxwxd in mm): 365mm x 250mm x 257mm.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
