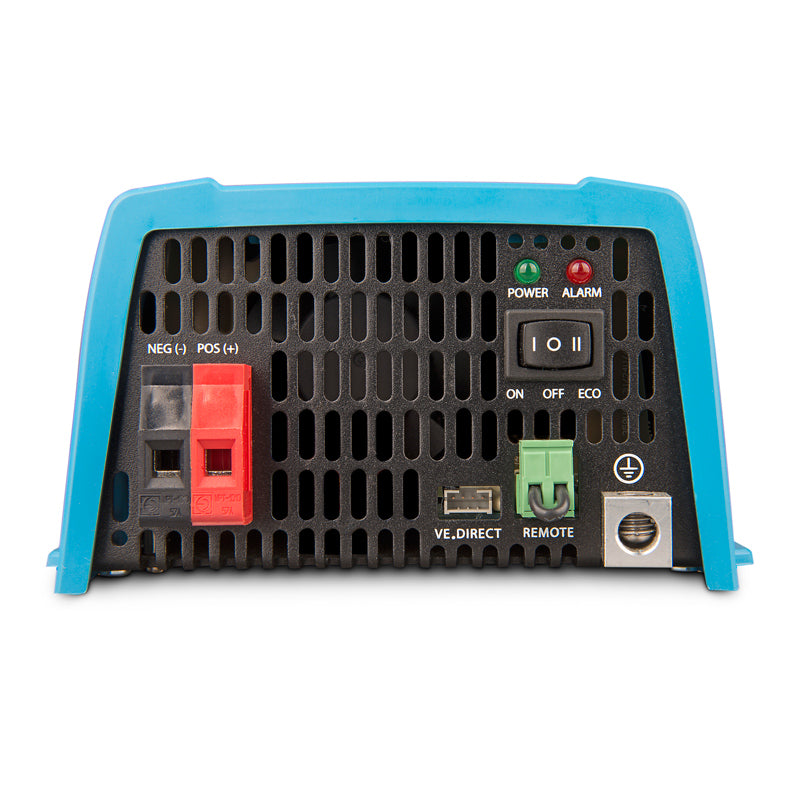

The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed), Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed).
Features
- Fully configurable
- Low battery voltage alarm trip and reset levels.
- Low battery voltage cut-off and restart levels.
- ECO mode: On/off and ECO mode sense level.
- Monitoring: In- and output voltage and current alarms.
Technical Specifications
- Cont. power at 25°C (1): 250VA.
- Cont. power at 25°C / 40°C: 200 / 175W.
- Peak power: 400W.
- Output AC voltage / frequency (adjustable): 230VAC +/- 3% 50Hz or 60Hz +/- 0, 1%.
- Input voltage range: 9, 2 - 17 / 18, 4 - 34, 0 / 36, 8 - 62,0V.
- DC low shut down (adjustable): 9, 3 / 18, 6 / 37,2V.
- DC low restart and alarm (adjustable): 10, 9 / 21, 8 / 43,6V.
- Battery charged detect (adjustable): 14, 0 / 28, 0 / 56,0V.
- Max. Efficiency: 87 / 88 / 88%.
- Zero-load power: 4, 2 / 5, 2 / 7,9W.
- Default zero-load power in ECO mode (default retry interval: 2, 5 s, adjustable): 0, 8 / 1, 3 / 2,5W.
- ECO mode stop and start power setting: Adjustable.
- Protection (2): a - f.
- Operating temperature range: -40 to +65°C (fan assisted cooling); (derate 1, 25% per °C above 25°C).
- Humidity (non-condensing): max 95%.
Enclosure
- Material & Colour: Steel chassis and plastic cover (blue Ral 5012).
- Battery-connection: Screw terminals.
- Maximum cable cross-section: 10 mm² / AWG8.
- Standard AC outlets: IEC-320 (male plug included).
- Protection category: IP 21.
- Weight 2,4kg.
- Dimensions (h x w x d) (mm): 86 x 165 x 260.
