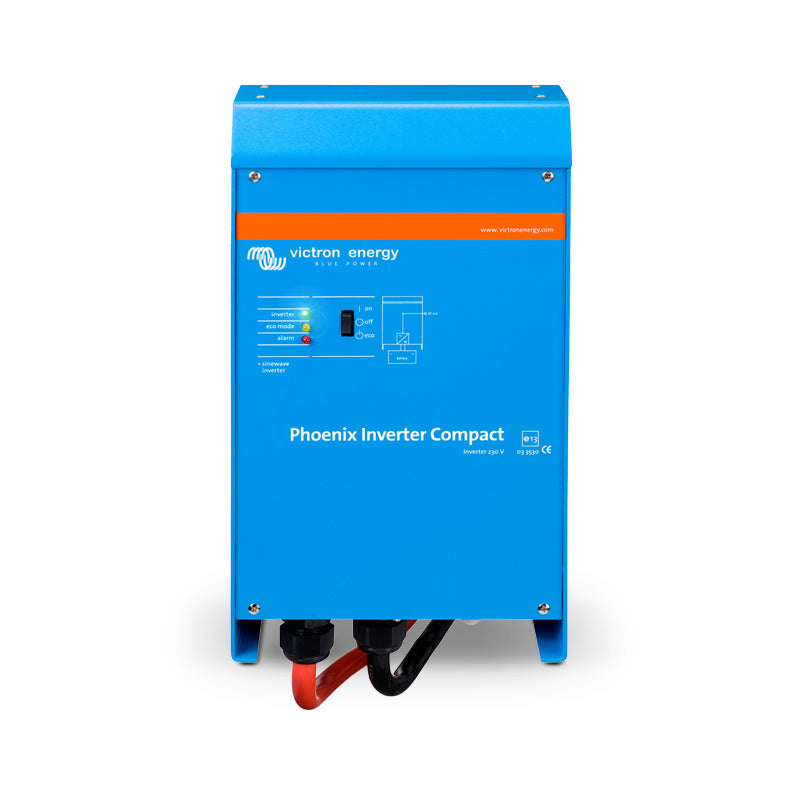

Victron Phoenix Compact 2kVA 1.6kW 12V-24V Inverter

Victron Phoenix Compact 2kVA 1.6kW 12V/24V Inverter - Sustainable.co.za
Victron Phoenix Compact 2kVA 1.6kW 12V-24V Inverter

Victron Phoenix Compact 2kVA 1.6kW 12V-24V Inverter

Regular price R 12,756.00 incl. VAT Sale price R 11,812.00 incl. VAT Save R 944
R 10,27130 excl. VAT
incl. VAT /
Volts


Tax included. Shipping calculated at checkout.
  • Secure online payments

TECHNICAL
Cont. AC power at 25 °C (VA): 1200
Cont. power at 25 °C / 40 °C (W): 1000 / 900
Peak power (W): 2400
Output AC voltage / frequency: 110VAC or 230VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Input voltage range (V DC): 9,2 - 17,3 / 18,4 - 34,0 / 36,8 - 68,0
Low battery alarm (V DC): 10,9 / 21,8 / 43,6
Low battery shut down (V DC): 9,2 / 18,4 / 36,8
Low battery auto recovery (V DC): 12,5 / 25 / 50 12,5 / 25 / 50
Max. efficiency (%): 92 / 94 / 94
Zero-load power (W): 6 / 5 / 6
Zero-load power in search mode: 2
Protection: a - e
Operating temperature range: -40 to +50°C (fan assisted cooling)
Humidity (non condensing): max 95%

ENCLOSURE
Material & Colour: aluminium (blue Ral 5012)
Battery-connection: 1)
Standard AC outlets: 230V: IEC-320 (IEC-320 plug included)
Protection category: IP 20
Weight (kg / lbs): 6,5
Dimensions (hxwxd in mm): 520x255x125.

STANDARDS
Safety: EN 60335-1
Emission Immunity: EN55014-1 / EN 55014-2/ EN 61000-6-2 / EN 61000-6-3

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
