Product Overview

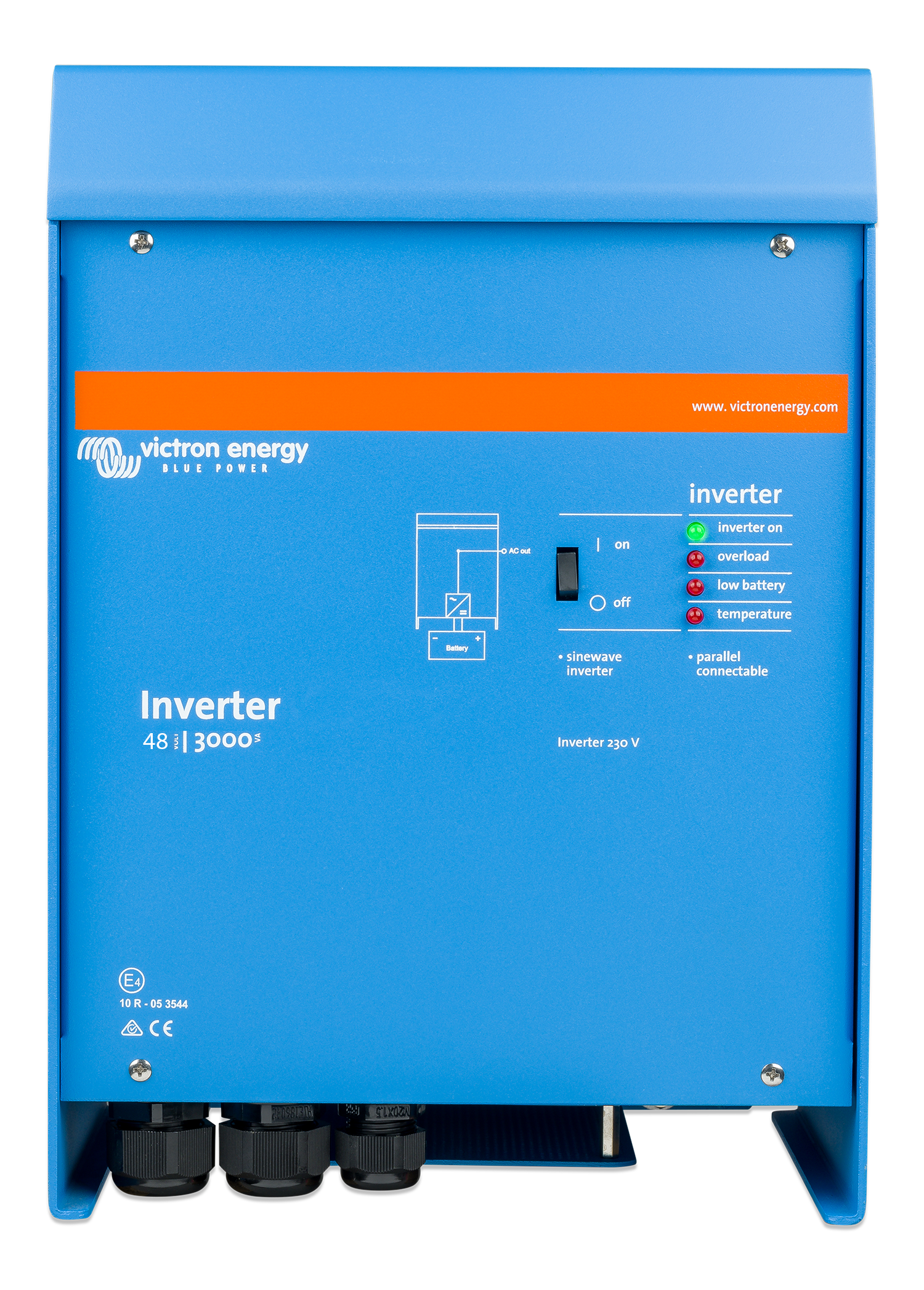

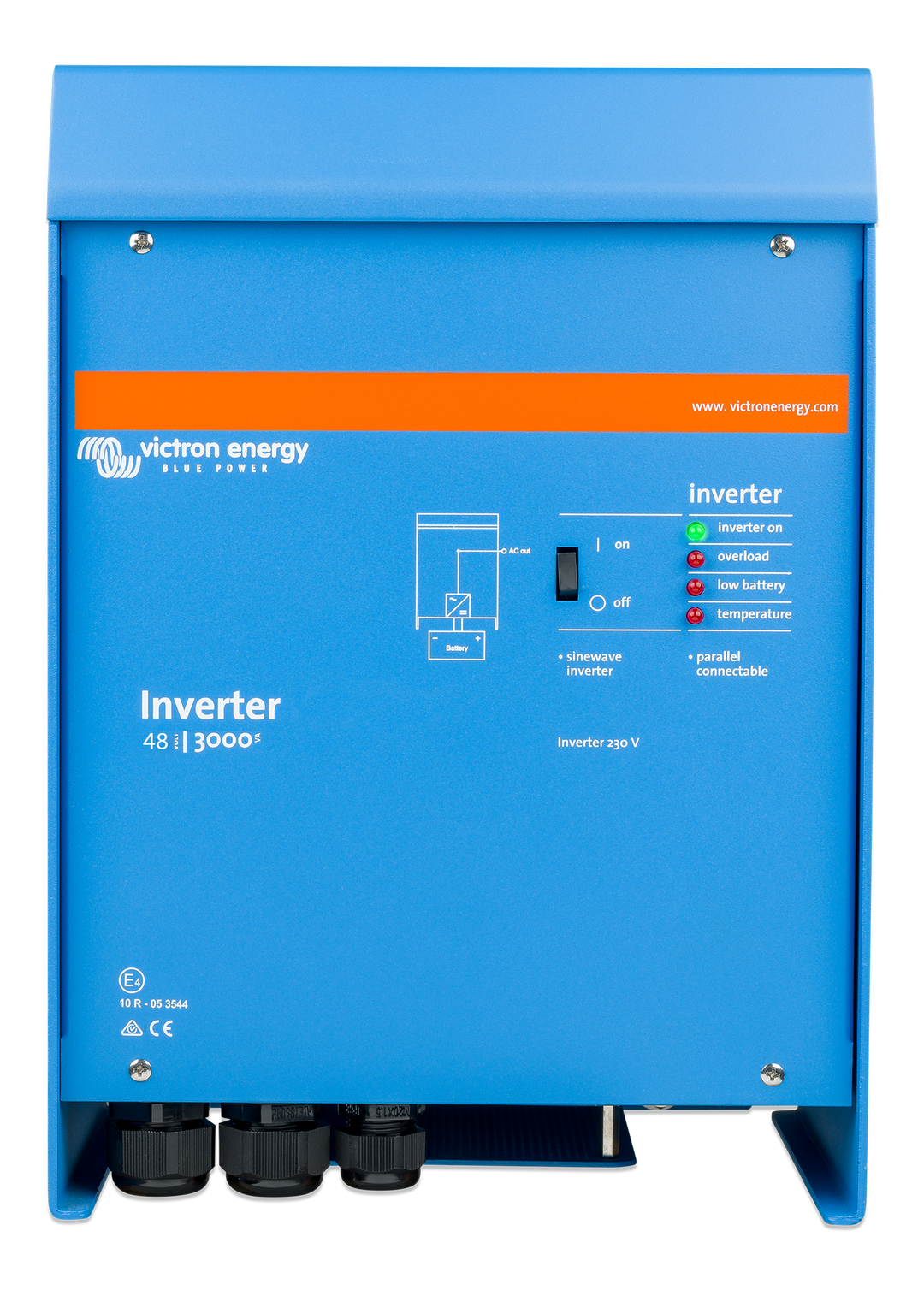

The Victron Phoenix 3kVA 48V VE.Bus Inverter is a 48V, 3000VA inverter designed to supply 230V sinewave AC from a suitable battery system. Its VE.Bus interface makes it suitable for correctly designed Victron-based power installations.
Key Features
- 48V DC inverter model with a 3000VA rating.
- 230V sinewave AC output.
- VE.Bus interface.
- 362 x 258 x 218mm enclosure.
- 18kg unit weight.
Applications
- 48V battery-based backup and off-grid power systems.
- Applications requiring 230V AC for loads sized within the inverter rating.
- Victron installations designed around VE.Bus equipment.
Why Choose This Product?
This model provides a 3kVA inverter option for 48V systems where 230V sinewave output and VE.Bus integration are required.
Important Notes
- System design, battery sizing, protection and installation must be completed by a qualified electrician or solar installer.
- Confirm overall VE.Bus system compatibility and the selected load profile before purchase.
Technical Specifications
| Specification |
Detail |
| Brand |
Victron Energy |
| Model |
Phoenix Inverter 48/3000 230V VE.Bus |
| Product Code |
PIN483020000 |
| Product Type |
230V Sinewave Inverter |
| DC System Voltage |
48V |
| Rated Size |
3000VA |
| AC Output |
230V |
| Communication |
VE.Bus |
| Dimensions |
362 x 258 x 218mm |
| Weight |
18kg |
