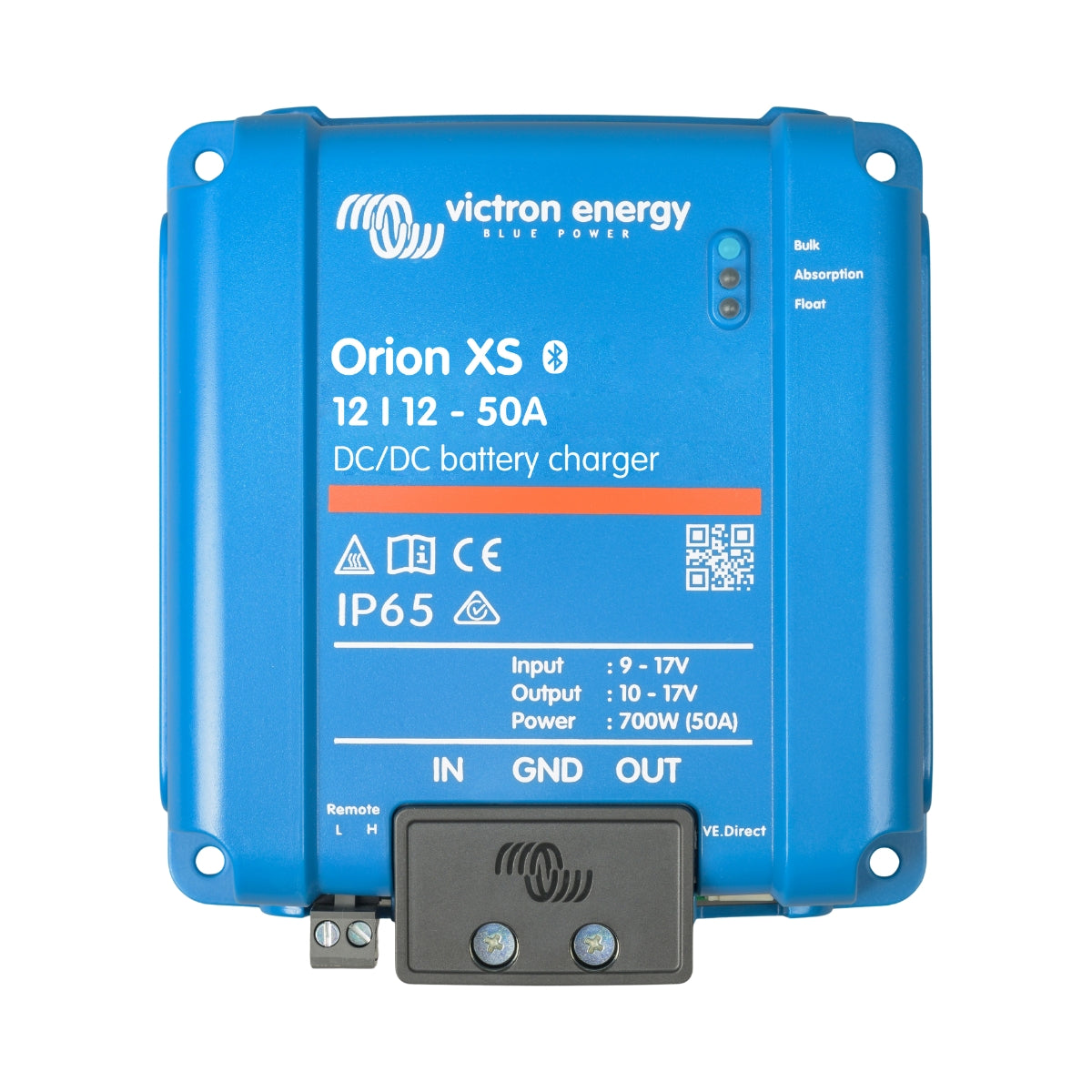

The Orion XS serves as a DC-DC battery charger or as a power supply, offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Specifications:

• Input Voltage Range: 9-17 V
• Output Voltage Adjust Range: 10-17 V
• Output Voltage Tolerance: +/- 0.25% (max)
• Output Voltage Noise: 10 mV rms
• Input and Output Current Setting Range: 1-50A
• Maximum Constant Short-Circuit Current: 50 A
• Continuous Output Power (up to 40°C): 700 W
• Maximum Efficiency: 98.5%
• No-Load Current Consumption: < 100 mA
• Standby Current Consumption: < 1.5 mA
• Can be Used as Power Supply: Yes, output voltage can be set with VictronConnect App

Communication:

• VictronConnect App / Bluetooth Smart: Yes
• VE.Smart Networking: Yes
• VE.Direct: Yes (including DVCC)

Other Features:

• Operating Temperature Range: -20 to +60°C (derating 1.5% per °C above 40°C)
• Humidity: 95%, non-condensing
• Maximum Altitude: 2000 m
• Pollution Degree: PD2
• Overvoltage Category: OVC 1
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 4AWG (21.2 mm²)
• Weight: 0.330 kg
• Dimensions (HxWxD): 137.3 x 123.1 x 40 mm
• Protection Category: IP65

Standards:

• Safety: IEC 62477-1
• EMC: EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-0033
• Automotive Directive: ECE R10-6
