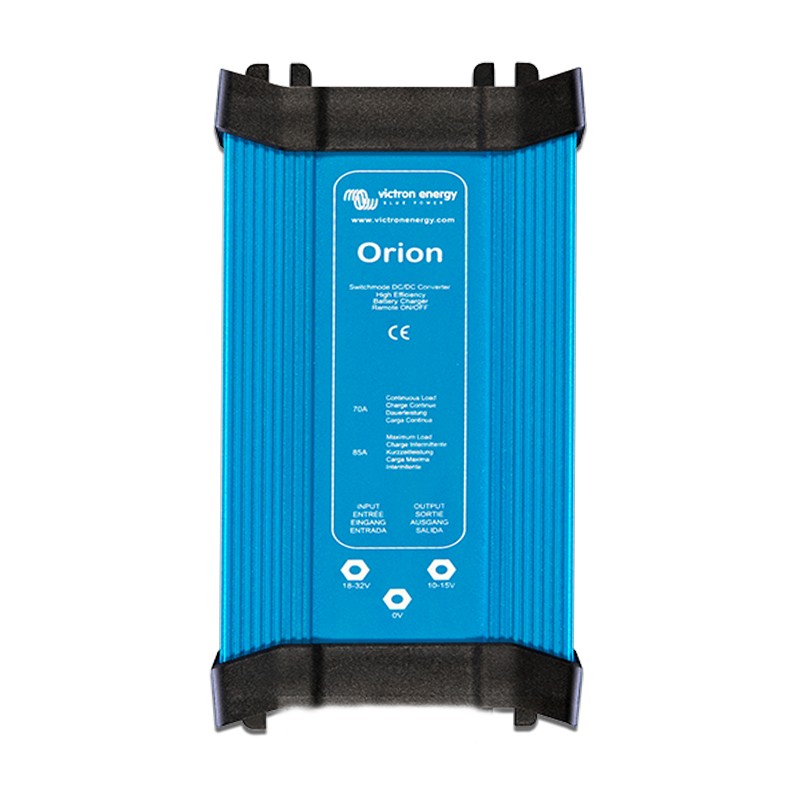

Victron Orion 24V-12V 70A (840W) High Power DC-DC Converter
All models with adjustable output can be paralleled to increase output current.
Up to five units can be connected in parallel.
Features:
- Remote on-off connector.
- All models with adjustable output can also be used as a battery charger.
- Easy to install.
- All models with adjustable output can be paralleled to increase output current.
- Low power model.
Technical Specifications:
- Input voltage: 18-35.
- Output voltage: Adjustable 10–15V F set 13,2V.
- Efficiency: 92%.
- Continuous output current: 70.
- Max. Output current: 85.
- Galvanic isolation no.
- Off load current: <20mA.
- Remote on-off: yes.
- Operating temperature range: -20 to +55°C.
- DC connection: M6 bolts.
- Weight: 0.9.
- Dimensions hxwxd: 65x88x195.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
