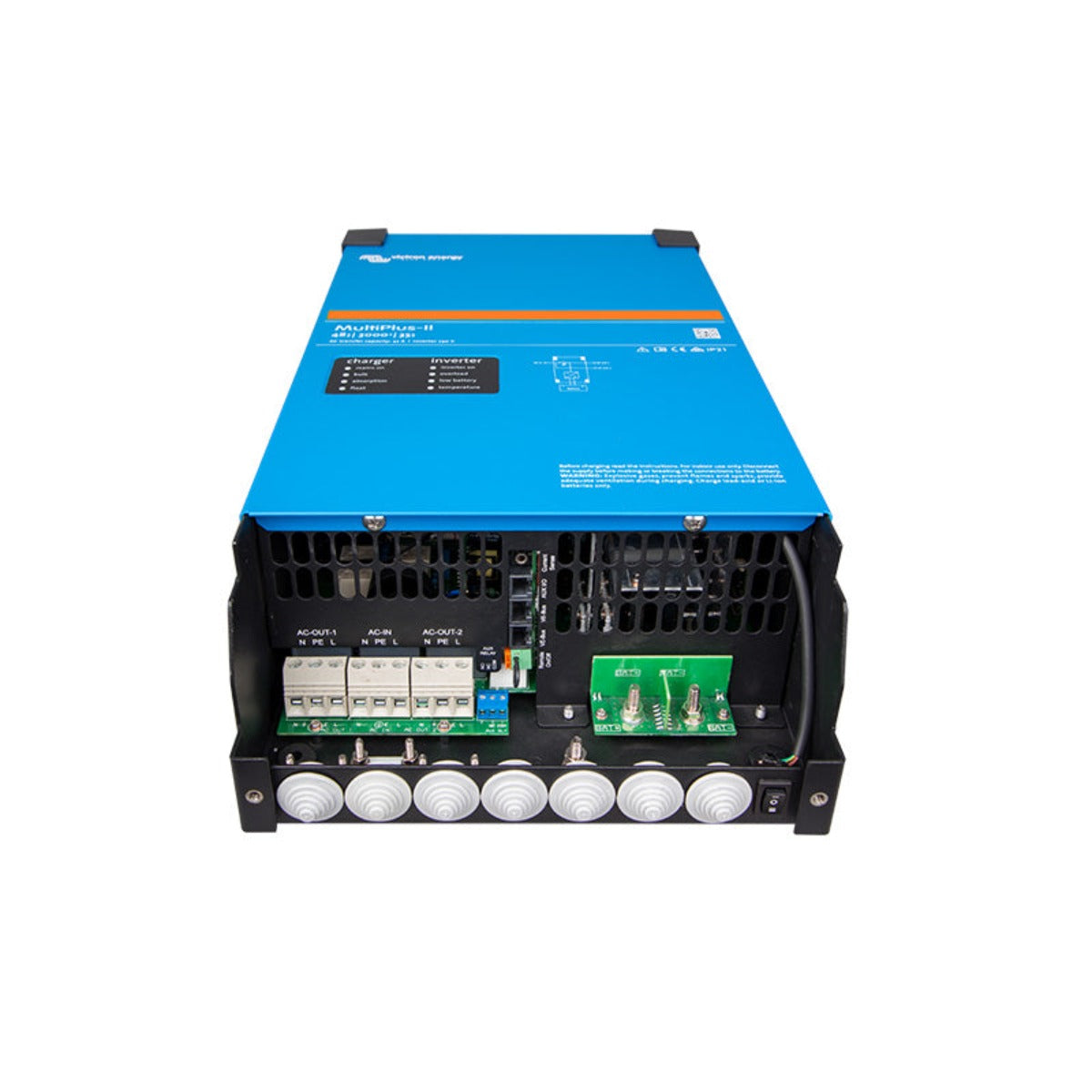

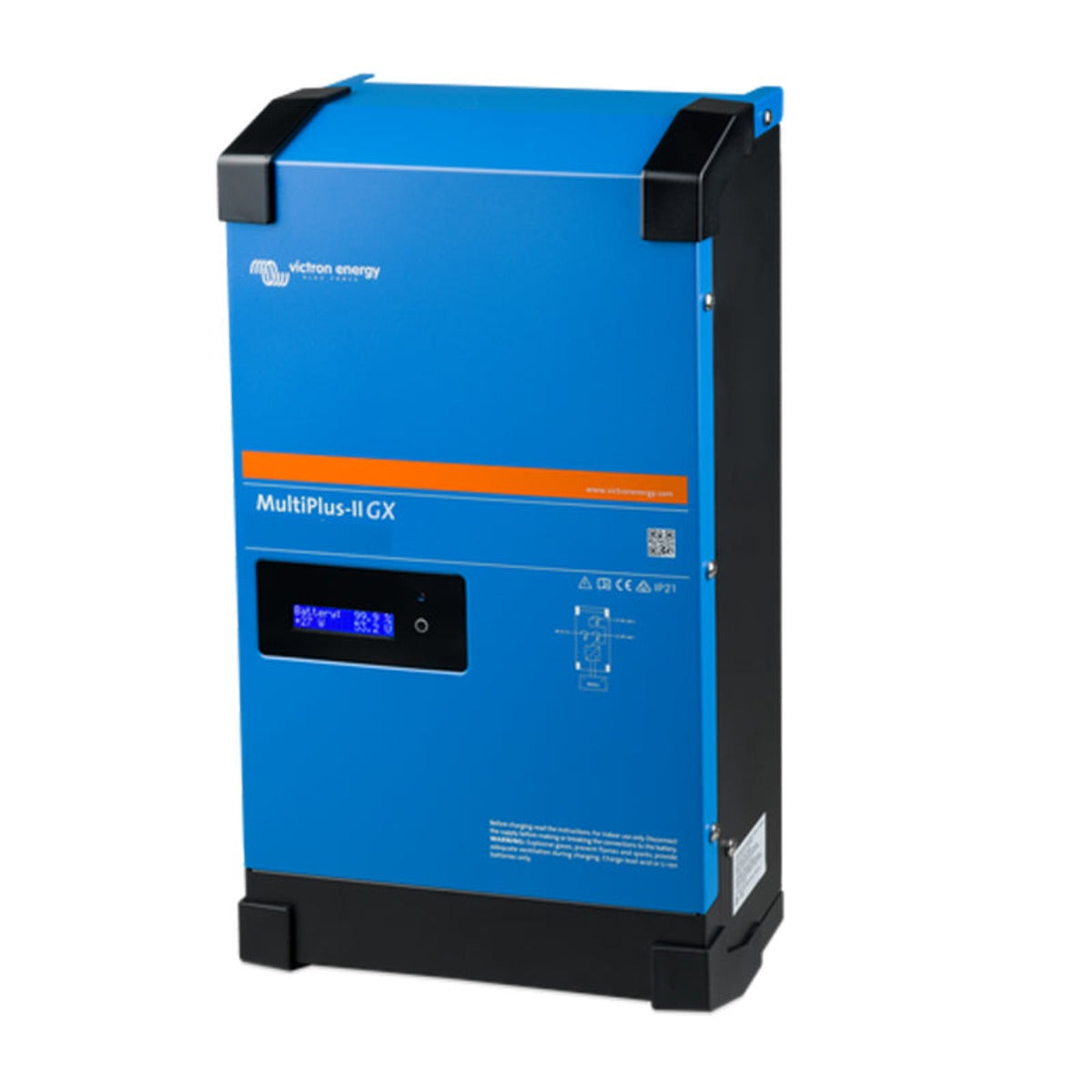

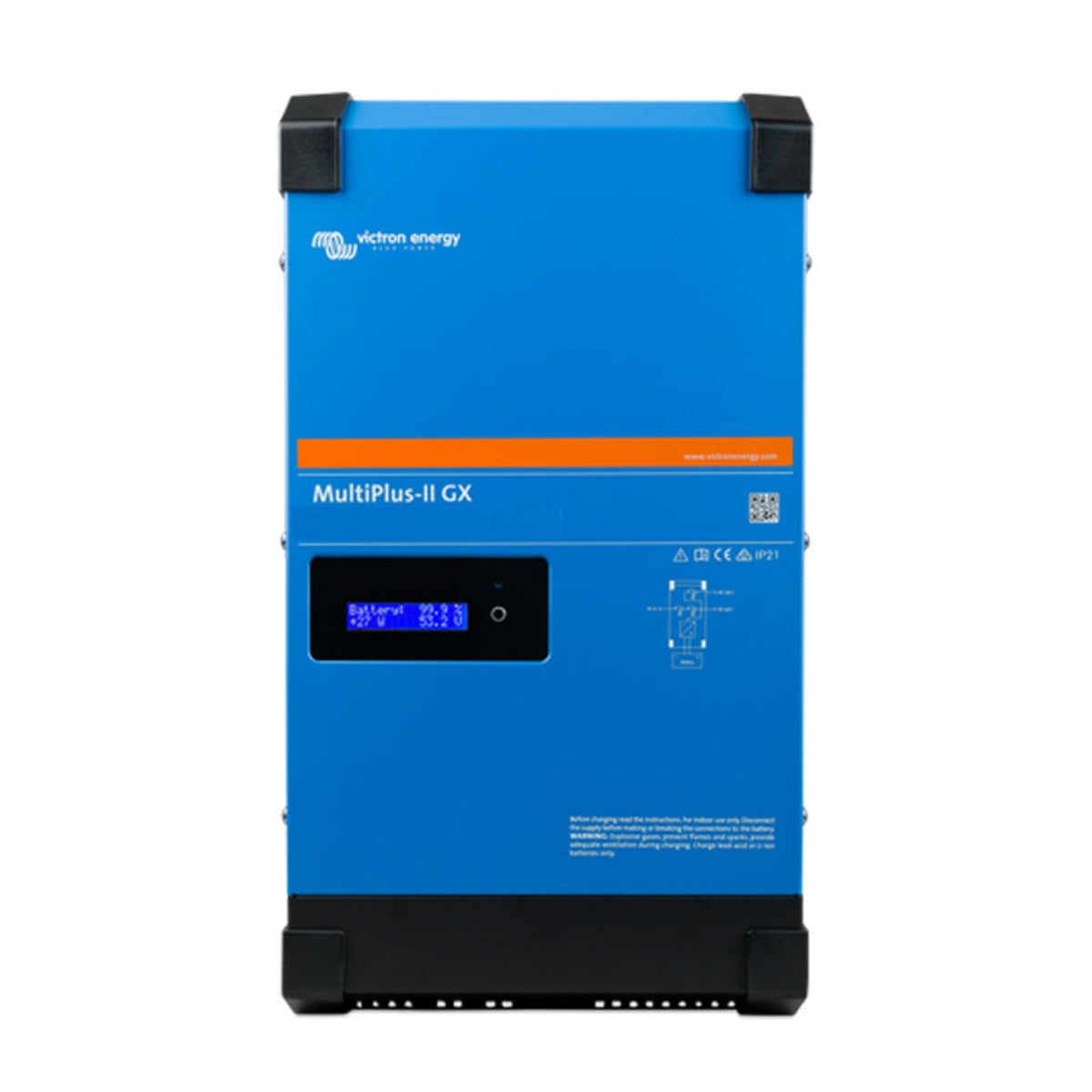

Victron Multiplus II GX 3kVA 2.4kW 48V Inverter-Charger

Victron Multiplus II GX 3kVA 2.4kW 48V Inverter-Charger

Regular price R 14,367.00 incl. VAT Sale price R 10,642.00 incl. VATSave R 3,725
R 9,25391 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Features

  • A MultiPlus-II with LCD and GX functionality.
  • Display and Wi-Fi.
  • GX device.
  • Parallel and three phase operation.
  • SA: NRS 097 certified and COCT Certified

MultiPlus-II GX - 48/3000/35-32

  • PowerControl & PowerAssist: Yes.
  • Transfer switch: 32A.
  • Maximum AC input current: 32A.
  • Auxiliary output: Yes (32A).

Inverter

  • DC Input voltage range: 38 – 66V
  • Output: Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
  • Cont. output power at 25°C: 3000VA.
  • Cont. output power at 25°C: 2400W.
  • Cont. output power at 40°C: 2200W.
  • Cont. output power at 65°C: 1700W.
  • Maximum apparent feed-in power: 2500VA.
  • Peak power: 5500W.
  • Maximum efficiency: 94%.
  • Zero load power: 13W.
  • Zero load power in AES mode: 9W.
  • Zero load power in Search mode: 2W.

Charger

  • AC Input: Input voltage range: 187-265 VAC, Input frequency: 45 – 65 Hz.
  • Charge voltage 'absorption': 57,6V.
  • Charge voltage 'float': 55,2V
  • Storage mode: 52,8V.
  • Maximum battery charge current: 35A.
  • Battery temperature sensor: Yes.

General

  • Interfaces: VE.Can, USB, Ethernet, VE.Direct, Wi-Fi
  • External AC current sensor (optional): 50A
  • Programmable relay: Yes.
  • Protection: a – g.
  • VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration.
  • General purpose com. port: Yes, 2x.
  • Remote on-off: Yes.
  • Operating temperature range: -40 to +65°C (fan assisted cooling).
  • Humidity (non-condensing): max 95%.

Enclosure

  • Material & Colour: Steel, blue RAL 5012.
  • Protection category: IP22.
  • Battery-connection: M8 bolts.
  • 230 V AC-connection: Screw terminals 13 mm² (6 AWG).
  • Weight: 19 kg.
  • Dimensions (hxwxd) mm: 506 x 275 x 147.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
