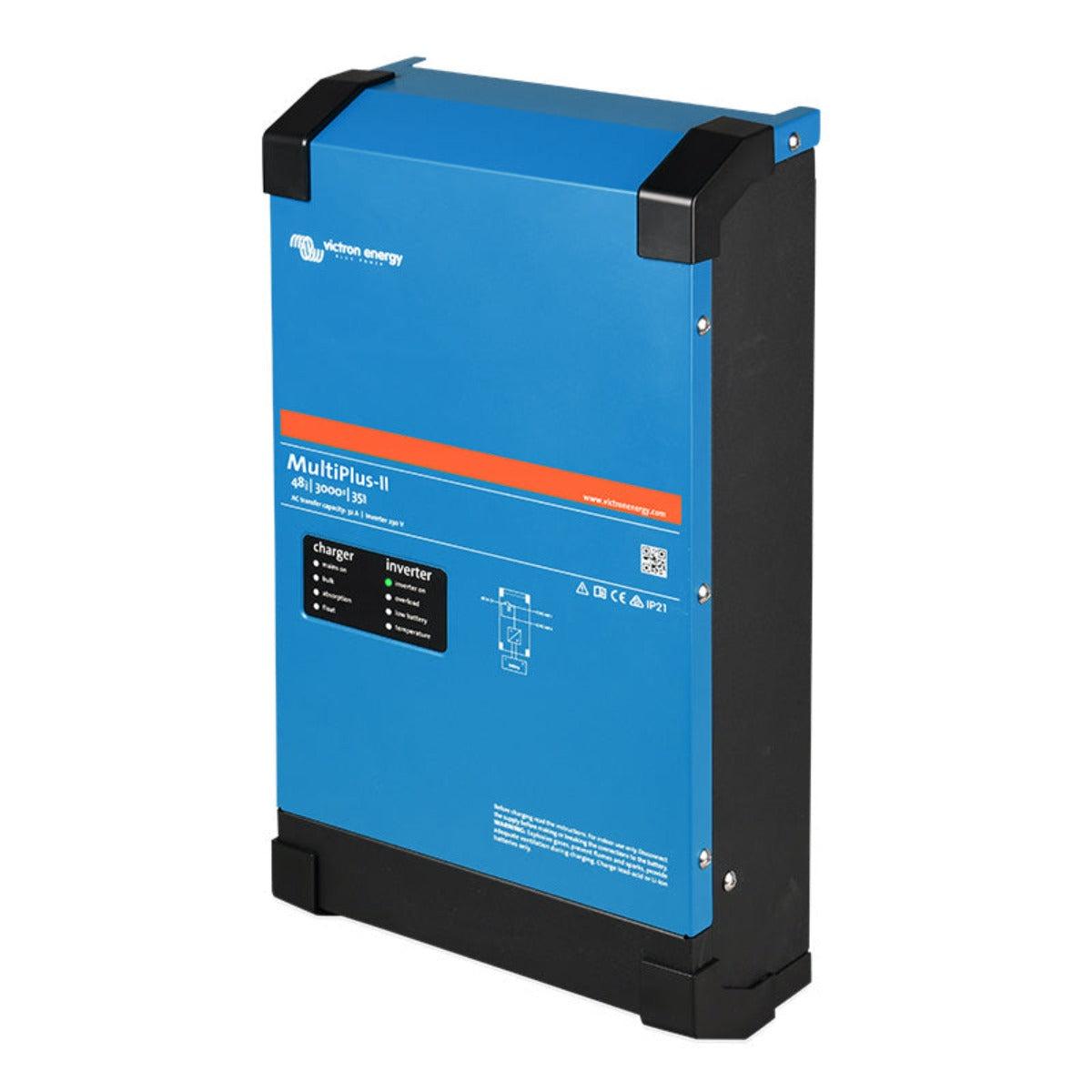

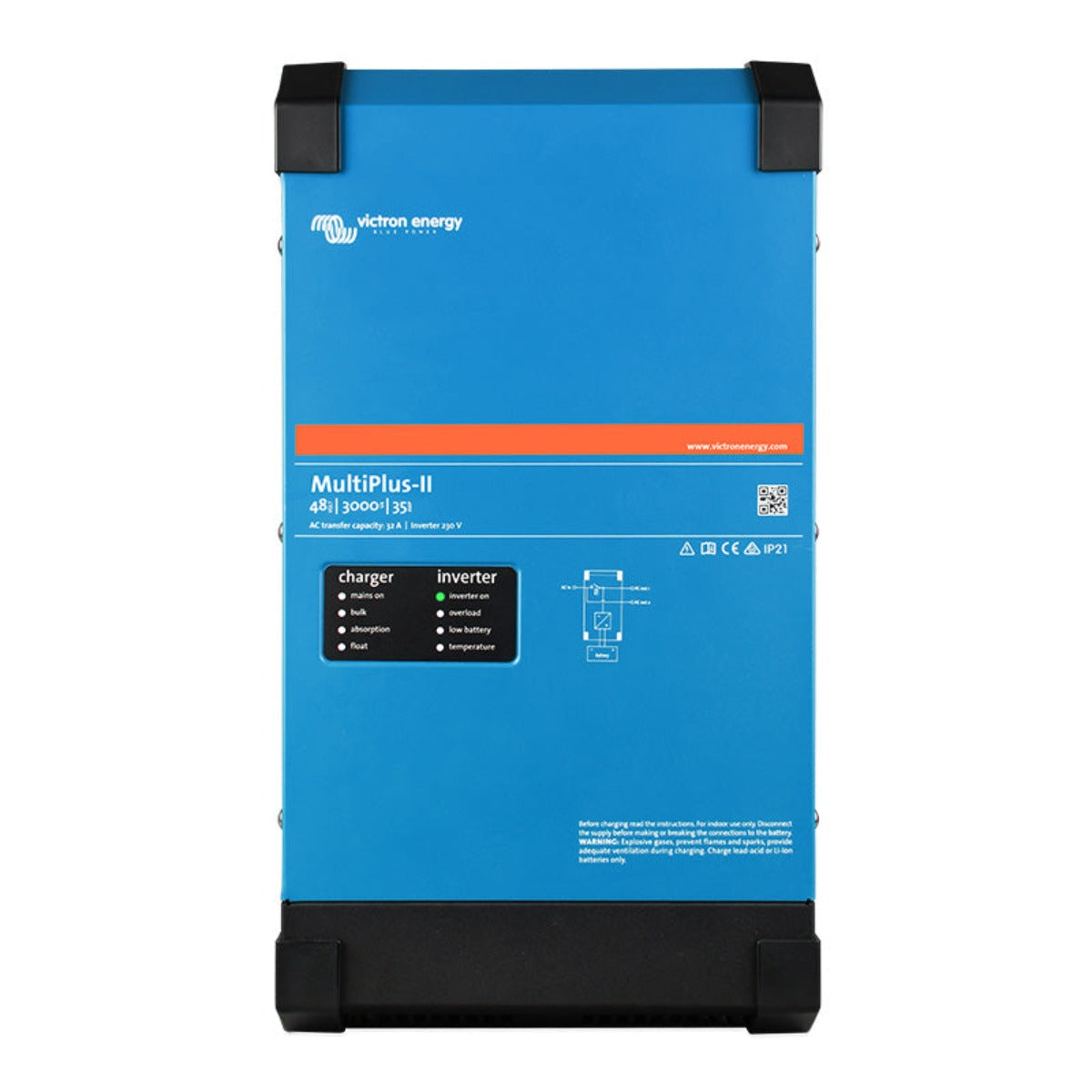

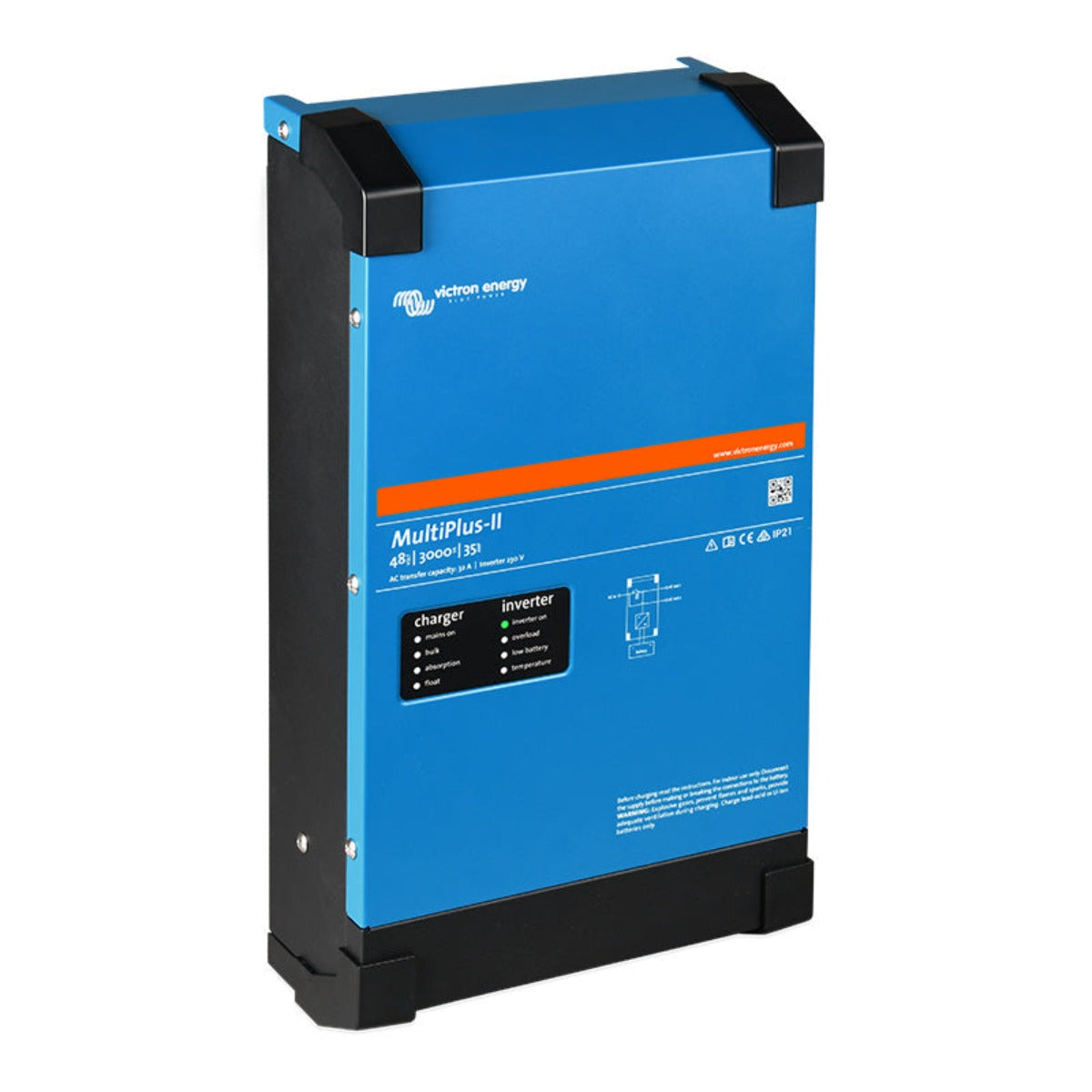

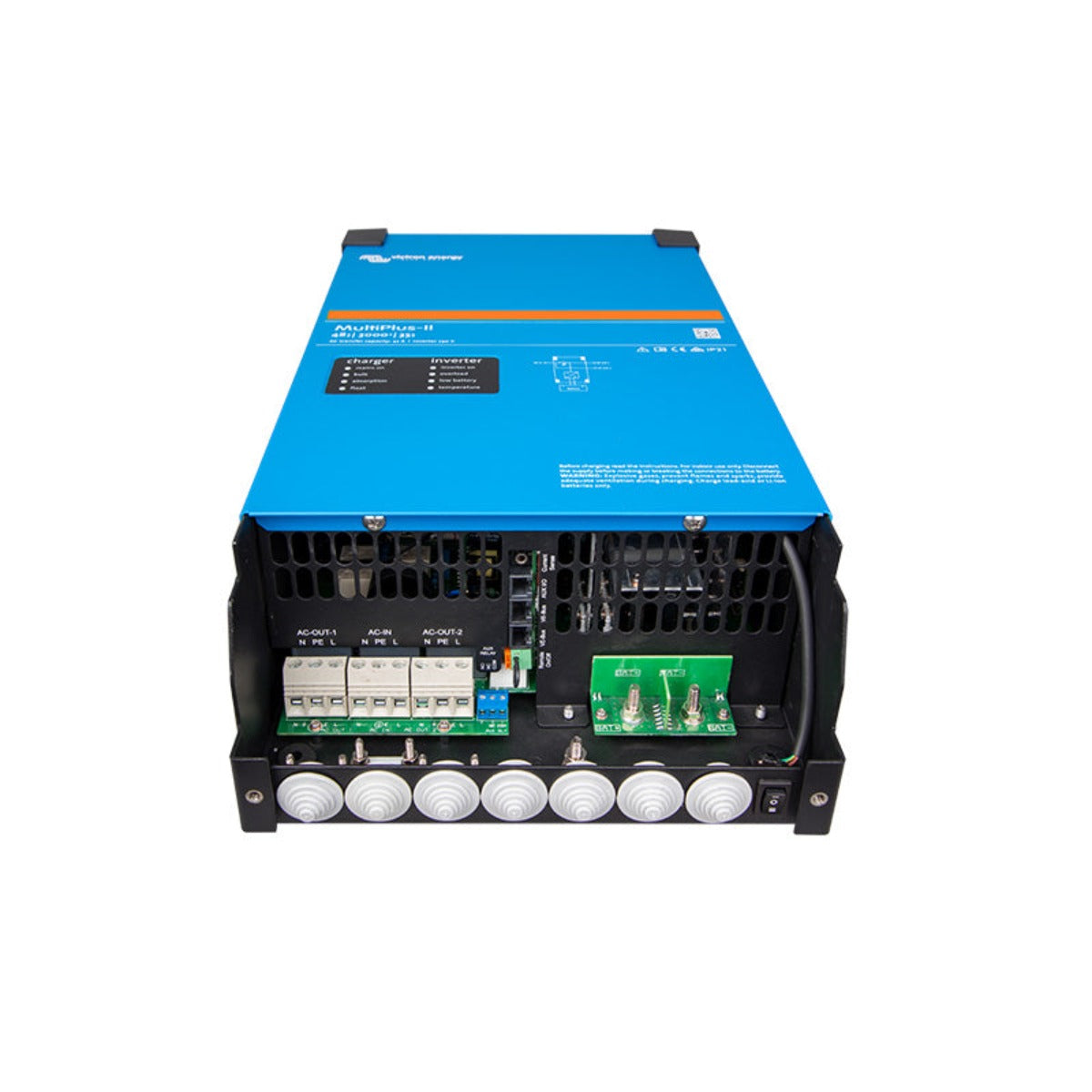

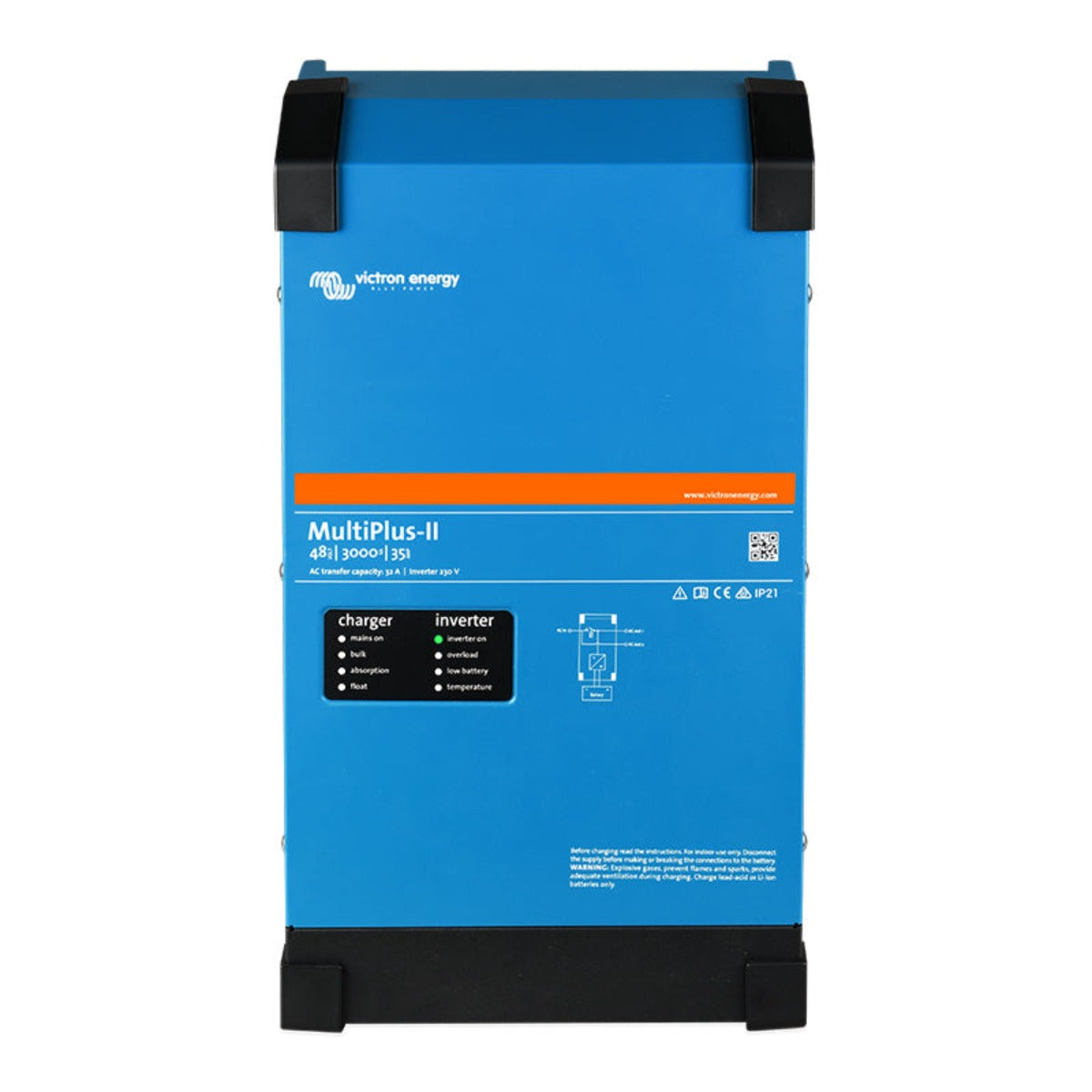

Victron Multiplus II 3kVA 2.4kW 48V Inverter-Charger

Victron Multiplus II 3kVA 2.4kW 48V Inverter/Charger - Sustainable.co.za
Victron Multiplus II 3kVA 2.4kW 48V Inverter/Charger - Sustainable.co.za
Victron Multiplus II 3kVA 2.4kW 48V Inverter/Charger - Sustainable.co.za
Victron Multiplus II 3kVA 2.4kW 48V Inverter/Charger - Sustainable.co.za
Victron Multiplus II 3kVA 2.4kW 48V Inverter/Charger - Sustainable.co.za

Victron Multiplus II 3kVA 2.4kW 48V Inverter-Charger

Regular price R 12,528.00 incl. VAT Sale price R 11,600.00 incl. VAT Save R 928
R 10,08696 excl. VAT
incl. VAT /


Tax included. Shipping calculated at checkout.
  • Secure online payments

Please note there is limited stock available and next shipment is expected to arrive between mid and end January 2024.

Features

  • A MultiPlus, plus ESS (Energy Storage System) functionality.
  • PowerControl and PowerAssist - Boosting the capacity of grid or generator power.
  • ESS: Energy Storage Systems.
  • On-site monitoring and control.
  • Remote configuring and monitoring.
  • SA: NRS 097 certified and COCT Certified

MultiPlus-II 48/3000/35 Specifications

  • PowerControl & PowerAssist: Yes
  • Transfer switch: 32A.
  • Maximum AC input current: 32A.

Inverter

  • DC Input voltage range: 38 – 66 V.
  • Output: Output voltage: 230 VAC ± 2%; Frequency: 50 Hz ± 0,1%.
  • Cont. output power at 25°C: 3000 VA.
  • Cont. output power at 25°C: 2400 W.
  • Cont. output power at 40°C: 2200 W.
  • Cont. output power at 65°C: 1700 W.
  • Maximum apparent feed-in power: 2500 VA.
  • Peak power: 5500 W.
  • Maximum efficiency: 95 %.
  • Zero load power: 11 W.
  • Zero load power in AES mode: 7 W.
  • Zero load power in Search mode: 2 W.

Charger

  • AC Input voltage range: 187 - 265 VAC.
  • Input frequency: 45 – 65 Hz.
  • Charge voltage 'absorption': 57,6 V.
  • Charge voltage 'float': 55,2 V.
  • Storage mode: 52,8 V.
  • Maximum battery charge current: 35 A.
  • Battery temperature and voltage sensor: VE.Bus Smart dongle (optional).

General

  • Auxiliary output: Yes (32 A) Directly connected to the AC input.
  • Programmable relay: Yes.
  • Protection: a - g (Please see specifications sheet.
  • VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration.
  • General purpose com. port Yes, 2x.
  • Remote on-off: Yes.
  • Operating temperature range: -40 to +65°C (fan assisted cooling).
  • Humidity (non-condensing): max 95%.

Enclosure

  • Material & Colour: Steel, blue RAL 5012.
  • Protection category: IP22.
  • Battery-connection: Two M8 bolts.
  • 230 V AC-connection Screw terminals: 13 mm² (6 AWG).
  • Weight: 18 kg.
  • Dimensions (hxwxd): 506 mm x 275 mm x 147 mm.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
