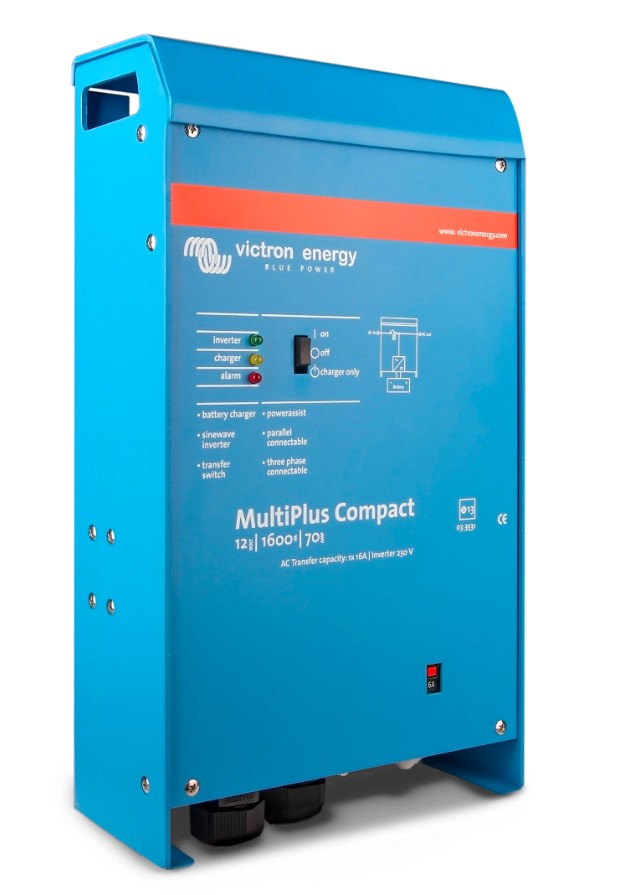

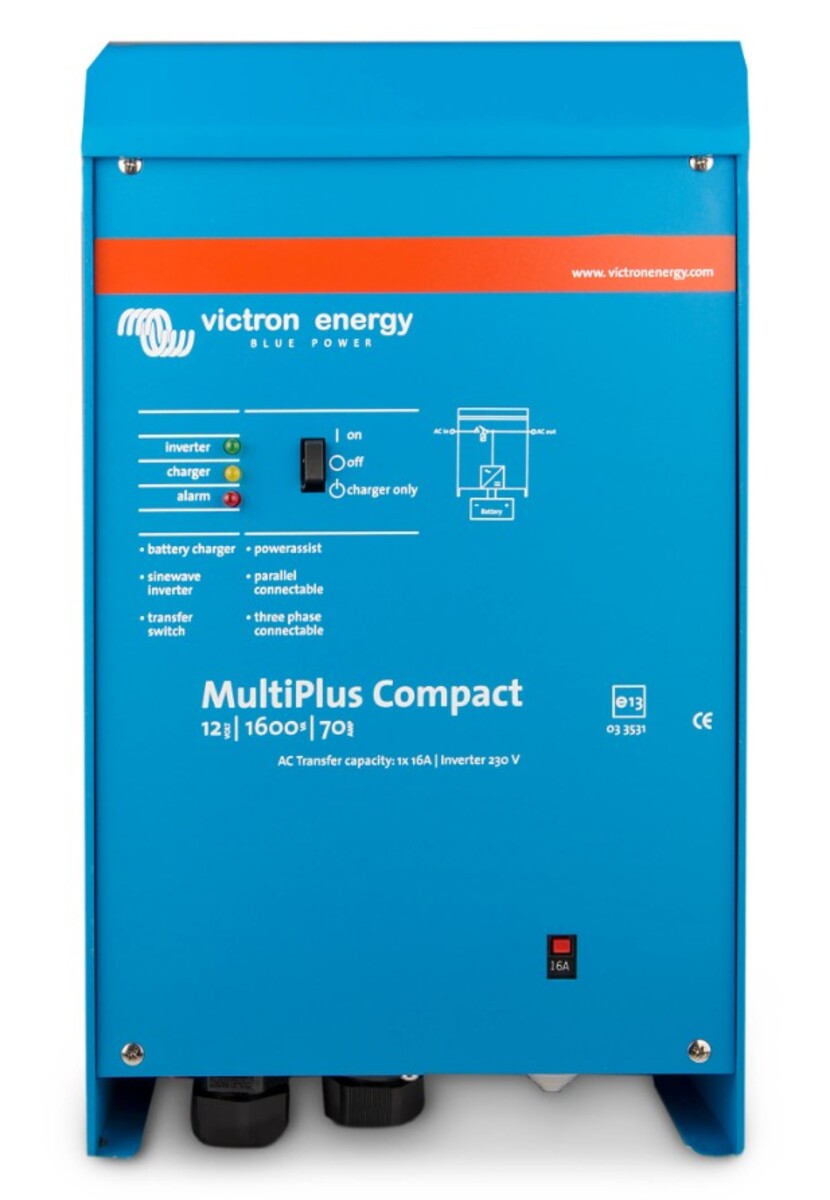

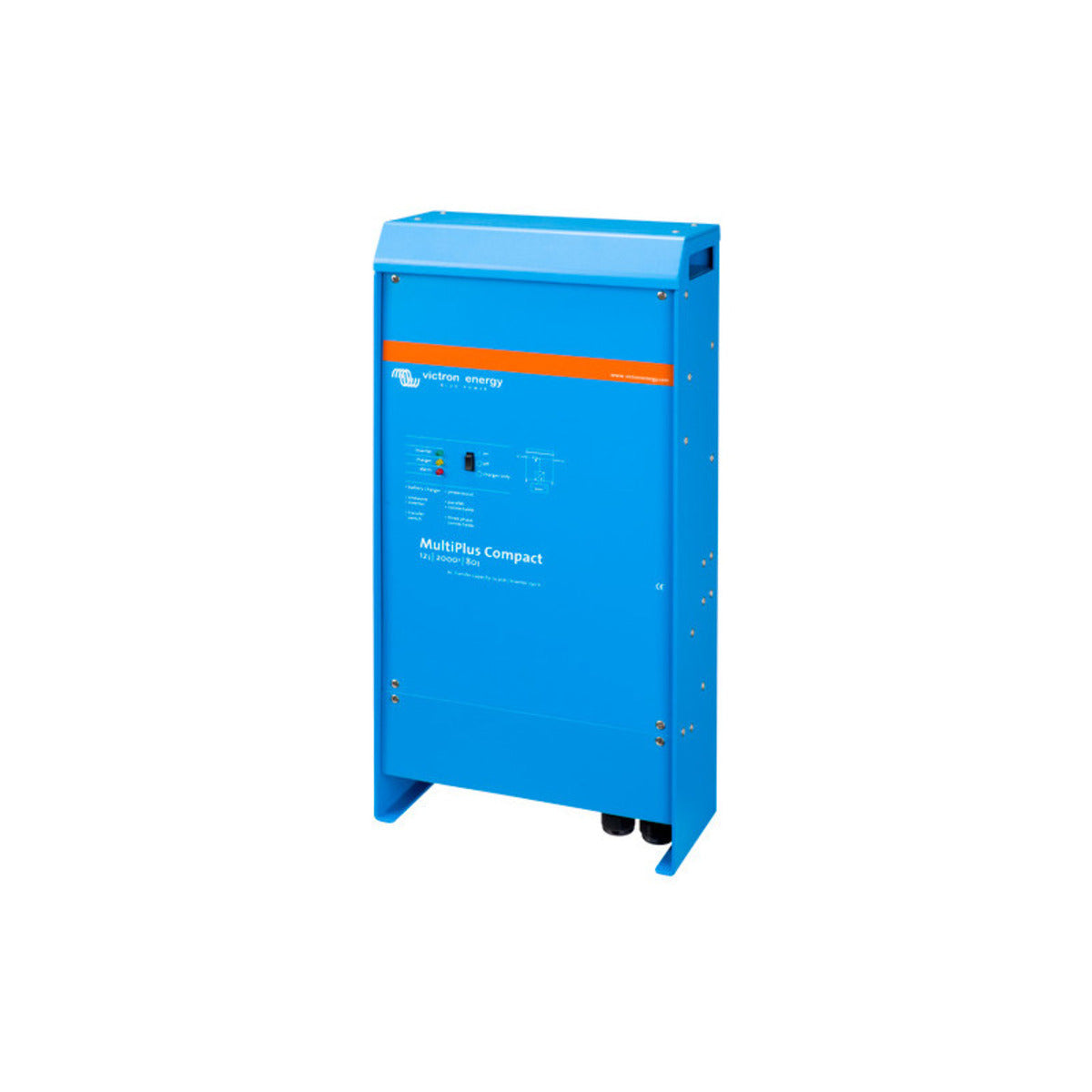

The Victron MultiPlus Compact 12/2000/80-30 230V VE.Bus is a versatile and compact power solution that integrates a powerful inverter and battery charger, featuring seamless transfer capabilities. Ideal for off-grid and backup power systems, this unit offers exceptional performance and adaptability.

Key Features

• Inverter and Charger: Combines a pure sine wave inverter with adaptive charging technology in one compact unit.
• Seamless Transfer Switch: Automatically switches between AC power sources and inverter for uninterrupted power supply.
• Power Control and Power Assist: Supports shore or generator power with battery supplementation.
• Parallel and Three-Phase Capability: Multiple units can be configured for increased output or three-phase systems.
• VE.Bus Communication: Enables integration with Victron Energy systems for advanced monitoring and control.

Specifications

Inverter

• Continuous Power Output: 2000VA (1600W at 25°C)
• Peak Power: 4000W
• Output Voltage: 230V AC ± 2%
• Frequency: 50 Hz ± 0.1% (adjustable to 60 Hz)
• Efficiency: 92%
• No-load Power Consumption: 8W

Charger

• Input Voltage Range: 187-265V AC
• Charger Current: 80A (battery voltage 12V)
• Charge Algorithm: Adaptive, four-stage
• Battery Types: Lead-acid, Lithium-ion

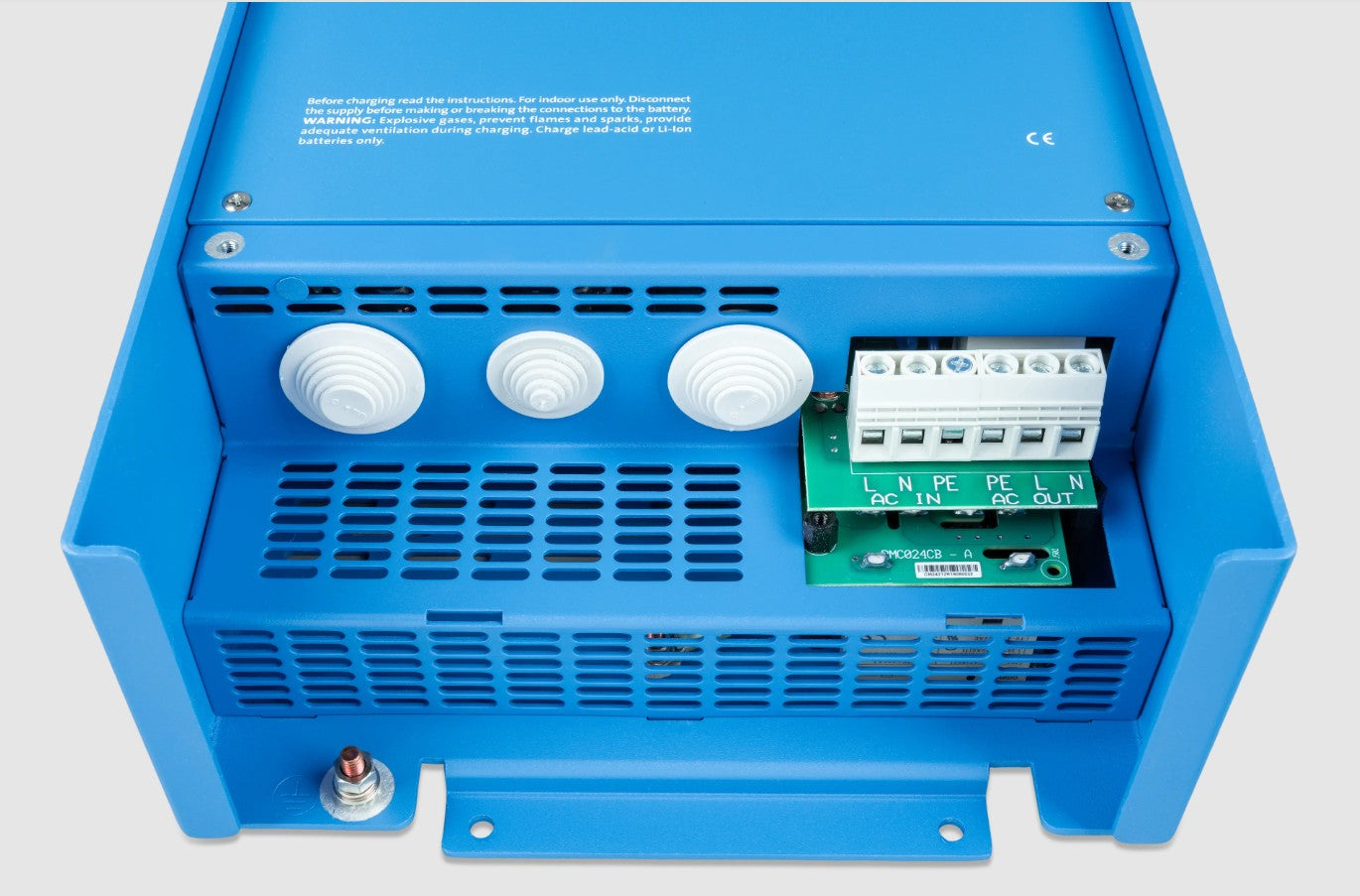

AC Input / Output

• AC Input Voltage Range: 187-265V AC
• Input Frequency: 45-65 Hz
• Output Voltage: 230V AC ± 2%
• Output Frequency: 50 Hz ± 0.1%

General

• Operating Temperature Range: -20°C to +50°C (full load up to 40°C)
• Storage Temperature: -40°C to +65°C
• Humidity: Max 95% (non-condensing)
• Enclosure: IP21
• Dimensions: 375 x 214 x 110 mm
• Weight: 10 kg

Applications

• Off-Grid Solar Systems: Delivers reliable power for remote homes, cabins, and other off-grid sites.
• Backup Power Systems: Ensures seamless power during grid outages.
• Marine and Mobile: Ideal for boats, RVs, and mobile applications.
• Industrial and Commercial: Suits businesses requiring dependable, scalable power solutions.

Advantages

• High Reliability: Built for durability and long-term performance.
• Versatility: Works with multiple battery types and applications.
• Scalability: Expandable with parallel or three-phase configuration.
• Ease of Use: Simplified system design and installation.

Integration

The VE.Bus communication feature allows seamless integration with other Victron Energy products, enabling full system monitoring and control via the Victron Remote Management (VRM) portal.
