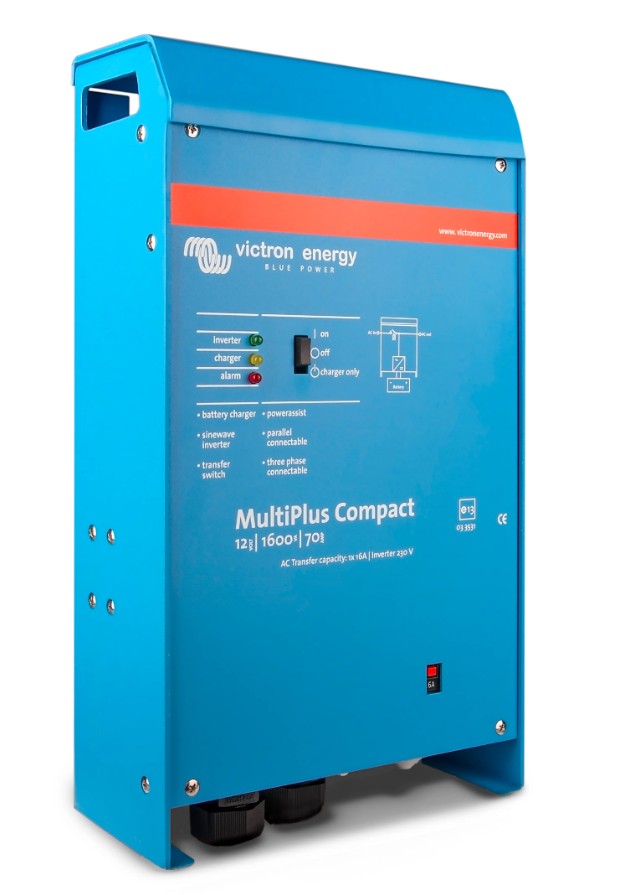

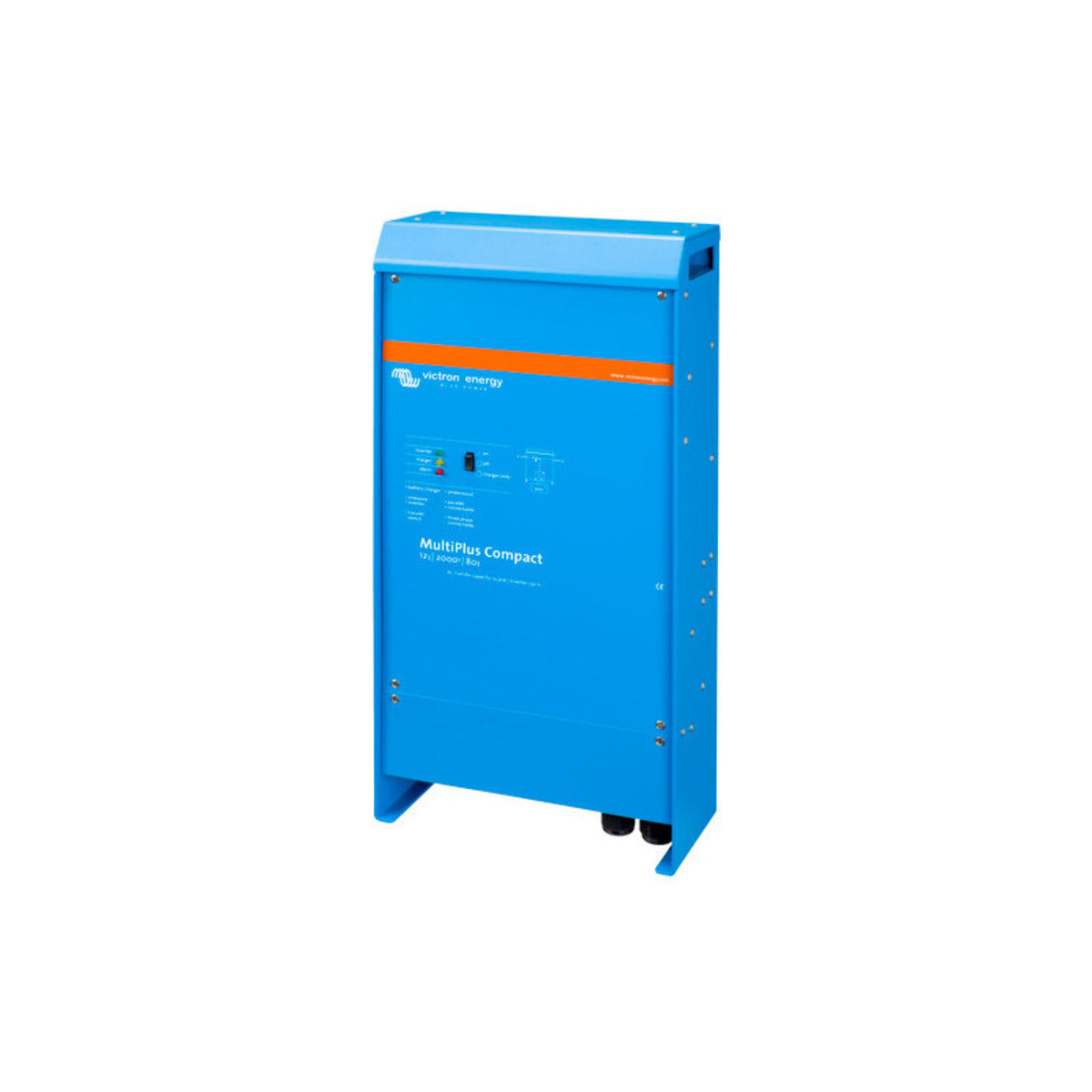

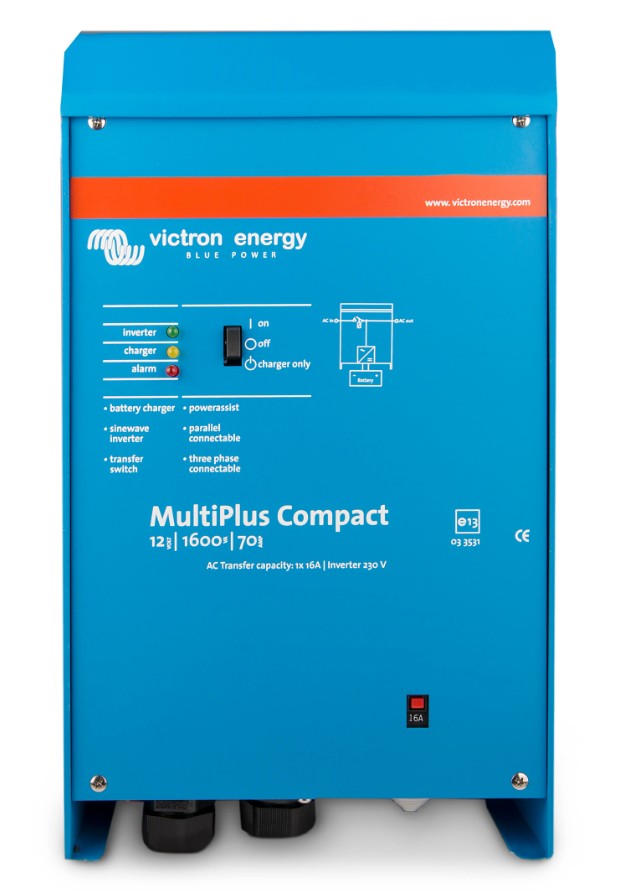

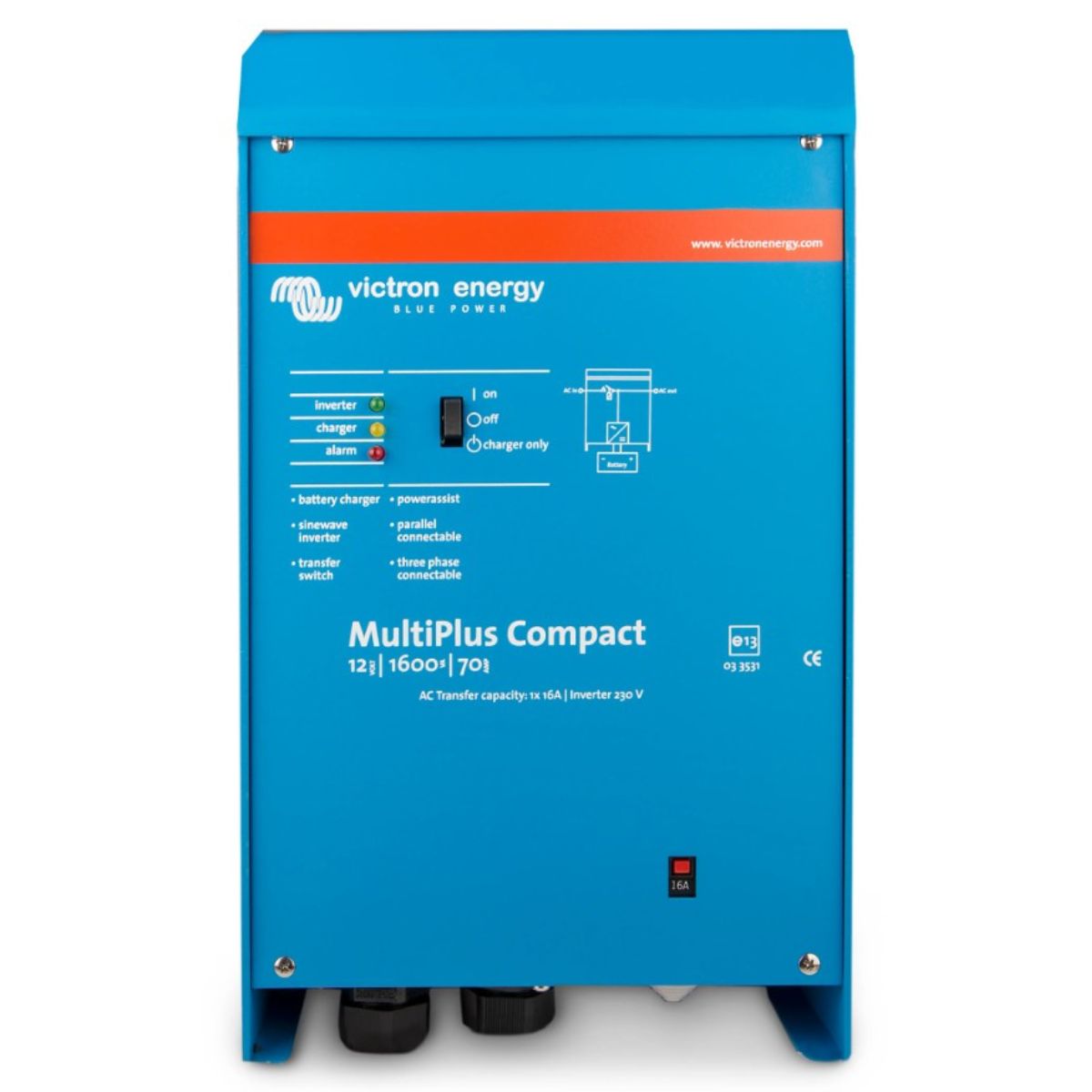

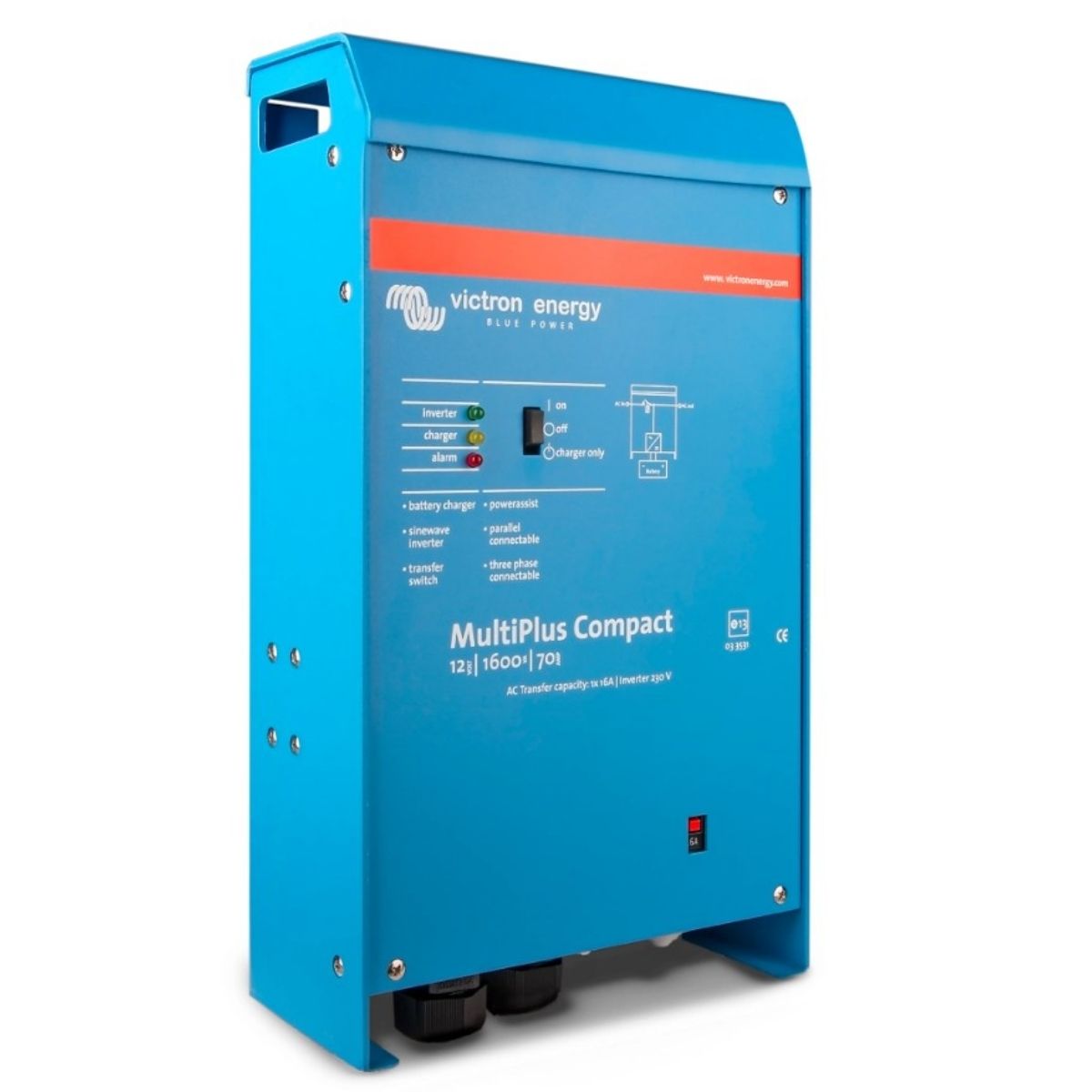

Victron Multiplus Compact 1.2kVA 1kW 12V-24V Inverter-Charger

Victron Multiplus Compact 1.2kVA 1kW 12V/24V Inverter/Charger - Sustainable.co.za

Victron Multiplus Compact 1.2kVA 1kW 12V-24V Inverter-Charger

Regular price R 17,385.00 Sale price R 13,200.00 Save R 4,185
R 15,180.00 incl. VAT
/
Volts
Shipping calculated at checkout.
  • We deliver across Africa
  • Secure online payments

Technical Specifications
Inverter

  • Input voltage range (V DC): 9.5-17V/ 19-33V/ 38-66V.
  • Output: Output voltage: 230 VAC ± 2%; Frequency: 50 Hz ± 0,1%.
  • Cont. output power at 25°C (VA): 1200.
  • Cont. output power at 25°C (W): 1000.
  • Cont. output power at 40°C (W): 950.
  • Cont. output power at 65°C (W): 600.
  • Peak power (W): 2400.
  • Maximum efficiency (%): 92/94.
  • Zero load power (W): 8/10.
  • Zero load power in AES mode (W): 5/8.
  • Zero load power in Search mode (W): 2/3.

Charger

  • AC Input: Input voltage range: 187-265 VAC; Input frequency: 45 – 65 Hz; Power factor: 1.
  • Charge voltage 'absorption' (V DC): 14.4/ 28.8/ 57.6.
  • Charge voltage 'float' (V DC): 13.8/ 27.6 / 55.2.
  • Storage mode (V DC): 13.2/ 26.4/ 52.8.
  • Charge current house battery (A): 50/25.
  • Charge current starter battery (A): 4 (12 V and 24 V models only).
  • Battery temperature sensor: Yes.

General

  • Power Control: Yes.
  • Power Assist: Yes.
  • Transfer switch (A): 16.
  • Auxiliary output: N/A.
  • Programmable relay: Yes.
  • VE. Bus communication port: For parallel and three phase operation, remote monitoring and system integration.
  • General purpose com. port: N/A.
  • Remote on-off: Yes.
  • Common Characteristics: Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95%.

Enclosure

  • Material & Colour: aluminium (blue RAL 5012).
  • Protection category: IP 21.
  • Battery-connection: battery cables of 1.5 meter.

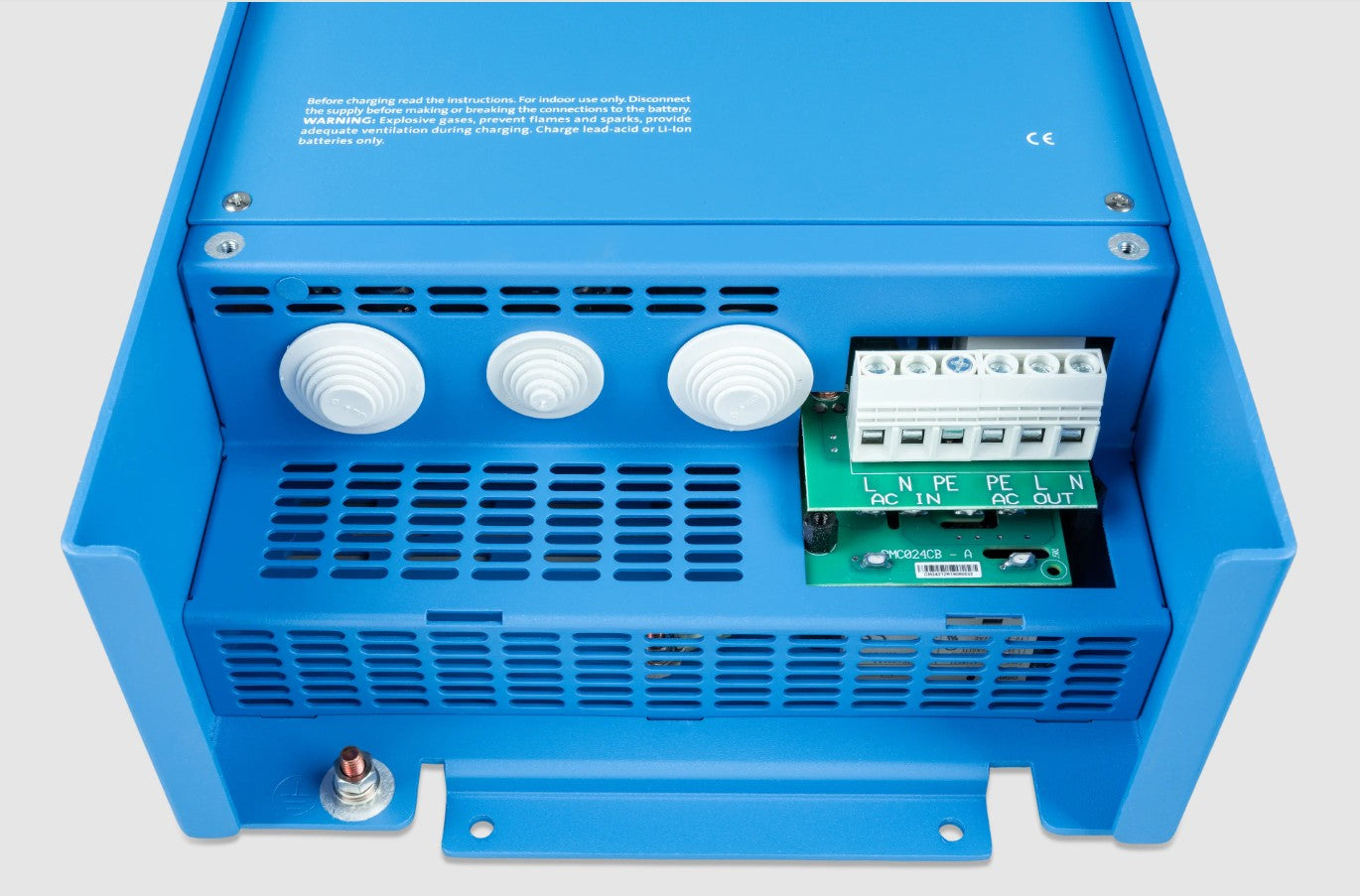

  • 230 V AC-connection: G-ST18i connector.
  • Weight (kg): 10
  • Dimensions (hxwxd)(mm): 375 x 214 x 110.
