Features
- Proven reliability.
- PowerControl - Dealing with limited generator, shore side or grid power (800VA / 1200VA).
- PowerAssist - Boosting the capacity of shore or generator power (800VA / 1200VA).
- High start-up power.
- Search Mode.
- Programmable relay.
- Remote on / off / charger on.
Technical Specifications
- PowerControl / PowerAssist: Yes.
- Three Phase and parallel operation: Yes.
- Transfer switch: 16A.
Inverter
- Input voltage range: 9,5V; 17V / 19V; 33V.
- Output voltage: 230VAC ± 2%.
- Frequency: 50Hz ± 0,1%.
- Cont. output power at 25°C (3): 800VA.
- Cont. output power at 25°C: 700W.
- Cont. output power at 40°C: 650W.
- Cont. output power at 65°C: 400W.
- Peak power: 1600W.
- Maximum efficiency: 92% / 93%.
- Zero-load power: 7W.
- Zero-load power in search mode: 2W.
Charger
- AC Input voltage range: 187VAC - 265 VAC.
- Input frequency: 45 Hz – 65 Hz.
- Charge voltage 'absorption': 14,4V / 28,8V.
- Charge voltage 'float': 13,8V / 27,6V.
- Storage mode: 13,2V / 26,4V.
- Charge current house battery: 35A / 16A.
- Charge current starter battery: 1A (12V and 24V models only)
- Battery temperature sensor: Yes.
General
- Programmable relay: Yes.
- Protection: (2) a ; g (Please see specifications sheet).
- Operating temp. range: -40 to +65°C (fan assisted cooling).
- Humidity (non-condensing): max 95%.

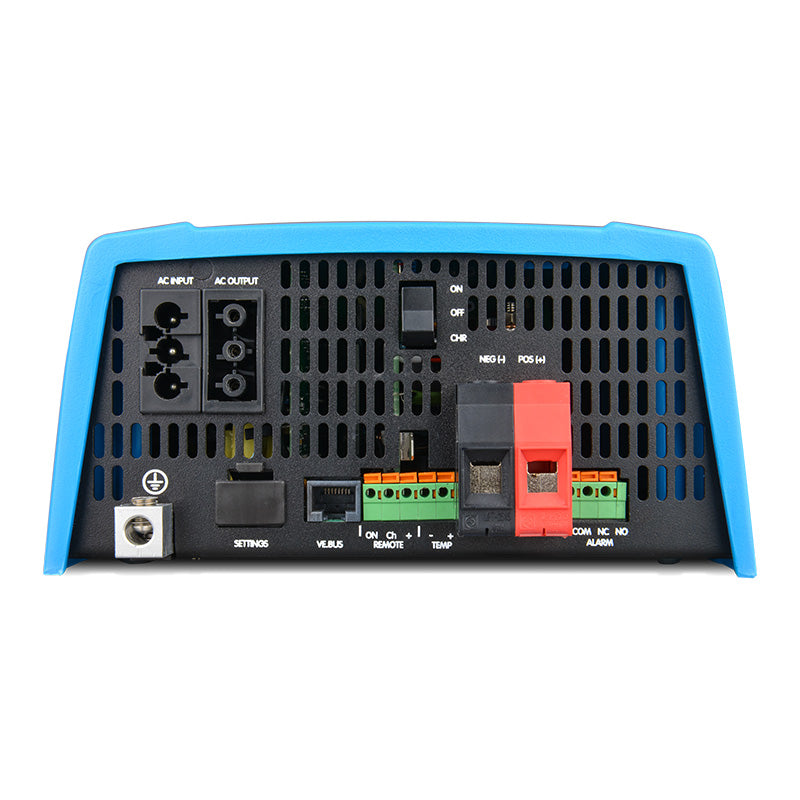

Enclosure
- Material & Colour: Steel/ABS (blue RAL 5012).
- Protection category: IP 21.
- Battery-connection: 25 mm² / 16 mm².
- 230V AC-connection: G-ST18i connector.
- Weight: 6,4 kg.
- Dimensions (h x w x d): 360 mm x 182 mm x 100 mm.
