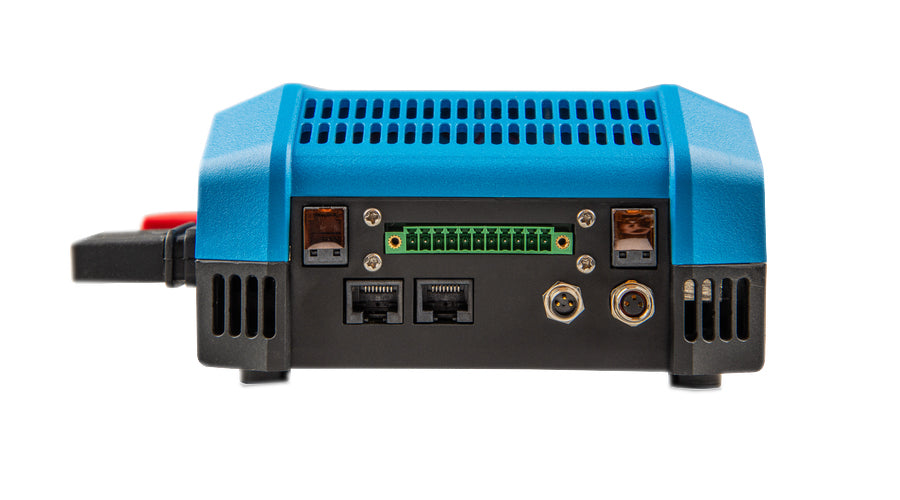

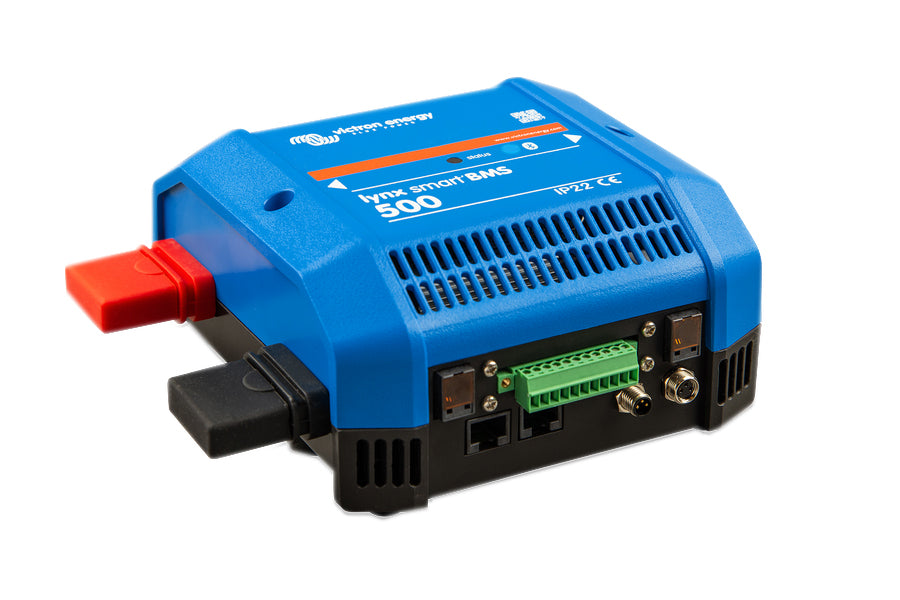

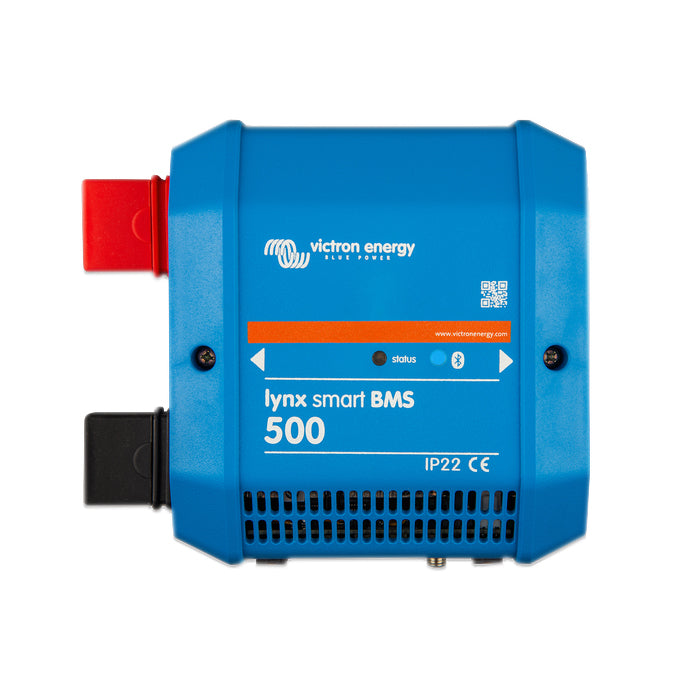

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option.
- Built-in 500A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
- Battery monitor, indicating state of charge percentage and more data.
- Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
- Local and remote monitoring using a Victron GX device.
- Supply voltage range: 9 - 58 Vdc
- Supported system voltages: 12, 24 or 48V
- Reverse polarity protection: No
- Main safety contactor continuous current rating: 500Adc continuous
- Main safety contactor peak current rating: 600A for 5 minutes
- Power consumption hibernate or standby mode: Approximately 10.4mW (0.8mA at 13V)
- Power consumption in active mode: Approximately 2.6W (200mA at 13V) depending on the state of the relays
- Minimum load resistance for pre-charging: 10Ω and above for 12V systems 20Ω and above for 24V and 48V systems
- AUX output maximum current rating: 1.1A continuous, protected by resettable fuse
- Allow-to-charge port Maximum current rating: 0.5A at 60Vdc, protected by resettable fuse
- Allow-to-discharge port Maximum current rating: 0.5A at 60Vdc, protected by resettable fuse
- Alarm relay (SPDT) Maximum current rating: 2A at 60Vdc
- Busbar: M8
- VE.Can: RJ45 and RJ45 terminator
- I/O: Screw terminals
- Battery BMS cables: Male and female circular 3-pole connector with M8 screw ring
- Lynx distributor (up to 4 modules): RJ10 (cable ships with each Lynx Distributor)
- Enclosure material: ABS
- Enclosure dimensions (h x w x d): 190 x 180 x 80 mm
- Unit weight: 1.9kg
- Busbar material: Tinned copper
- Busbar dimensions (h x w): 8 x 30mm
- Operating temperature range: -40°C to +60°
- Storage temperature range: -40°C to +60°
- Humidity: Max. 95% (non-condensing)
- Protection class: IP22
- 5 year warranty.
