Features
- The all-in-one solar power solution.
- Display and wifi.
- Solar charge controller.
- GX device.

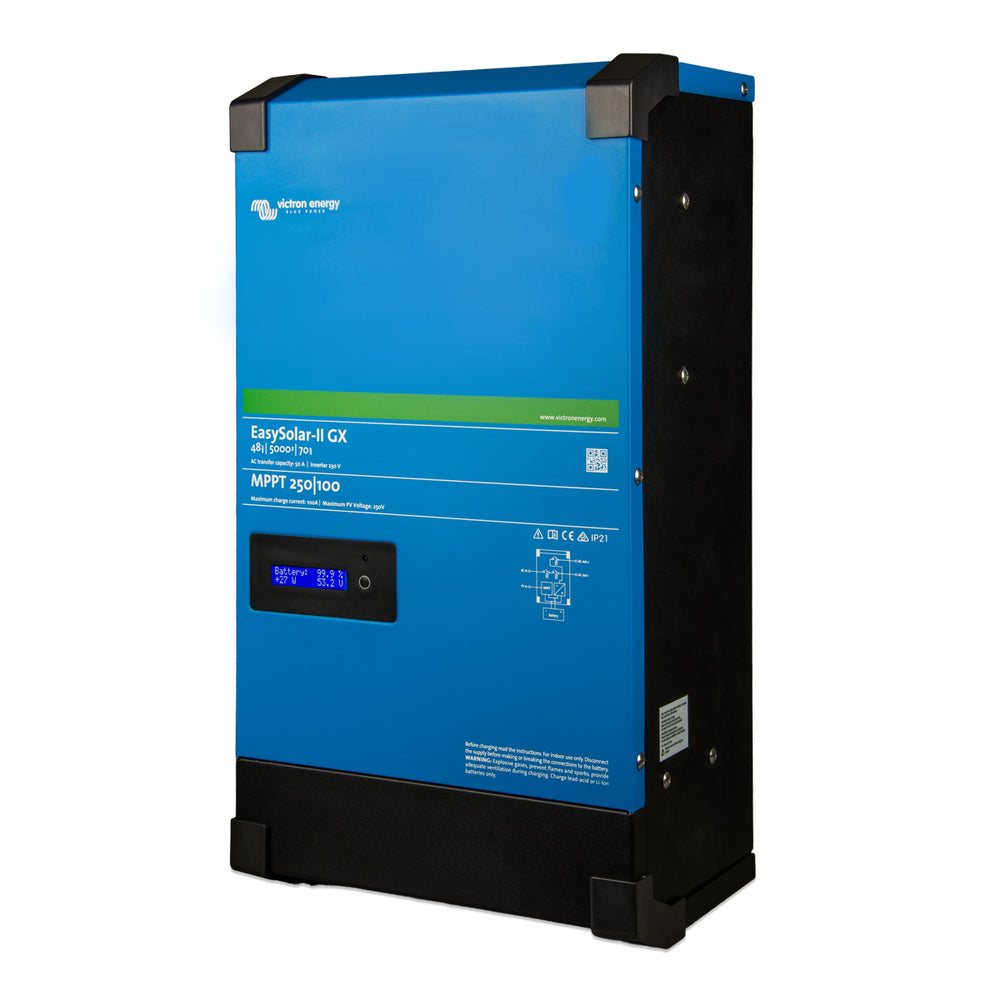

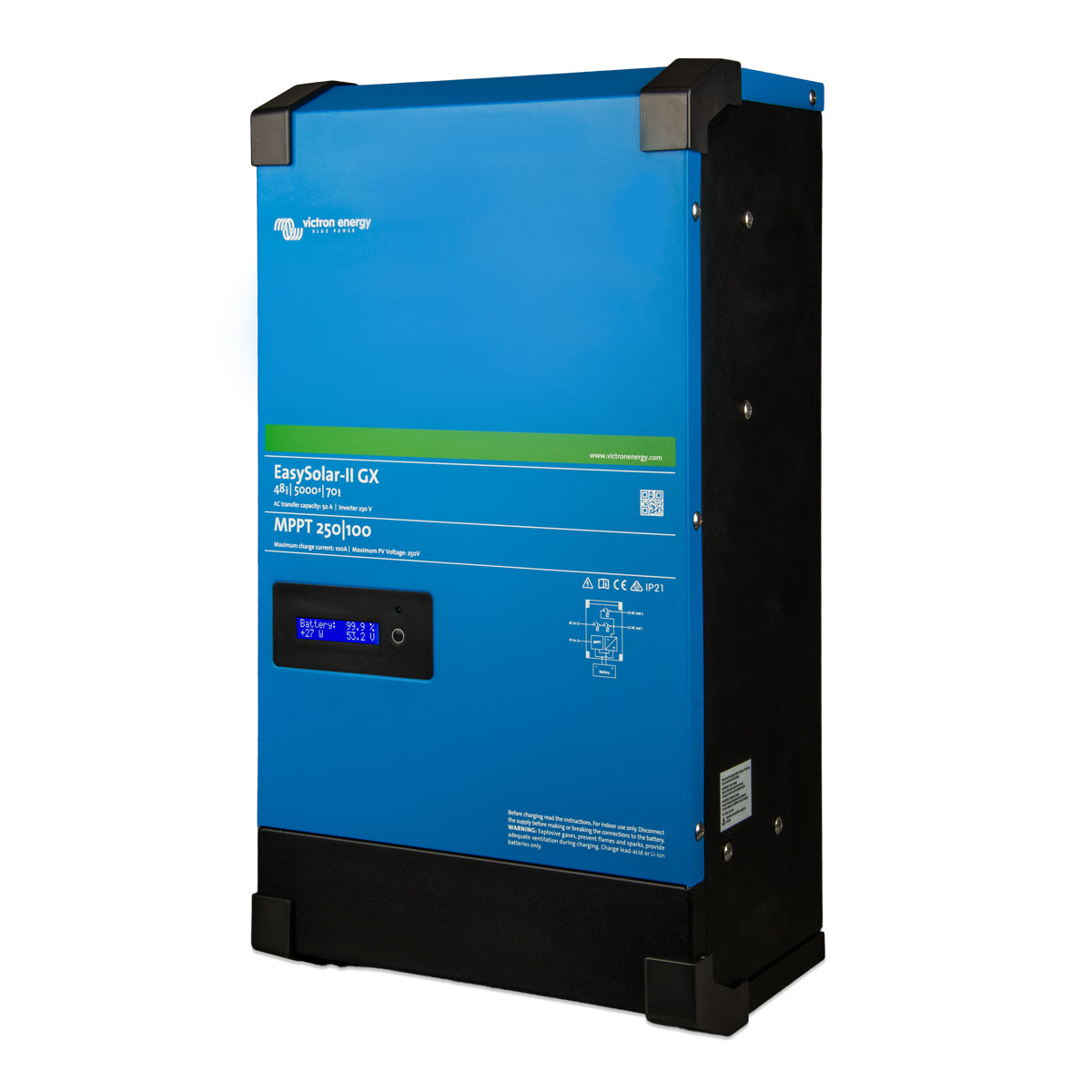

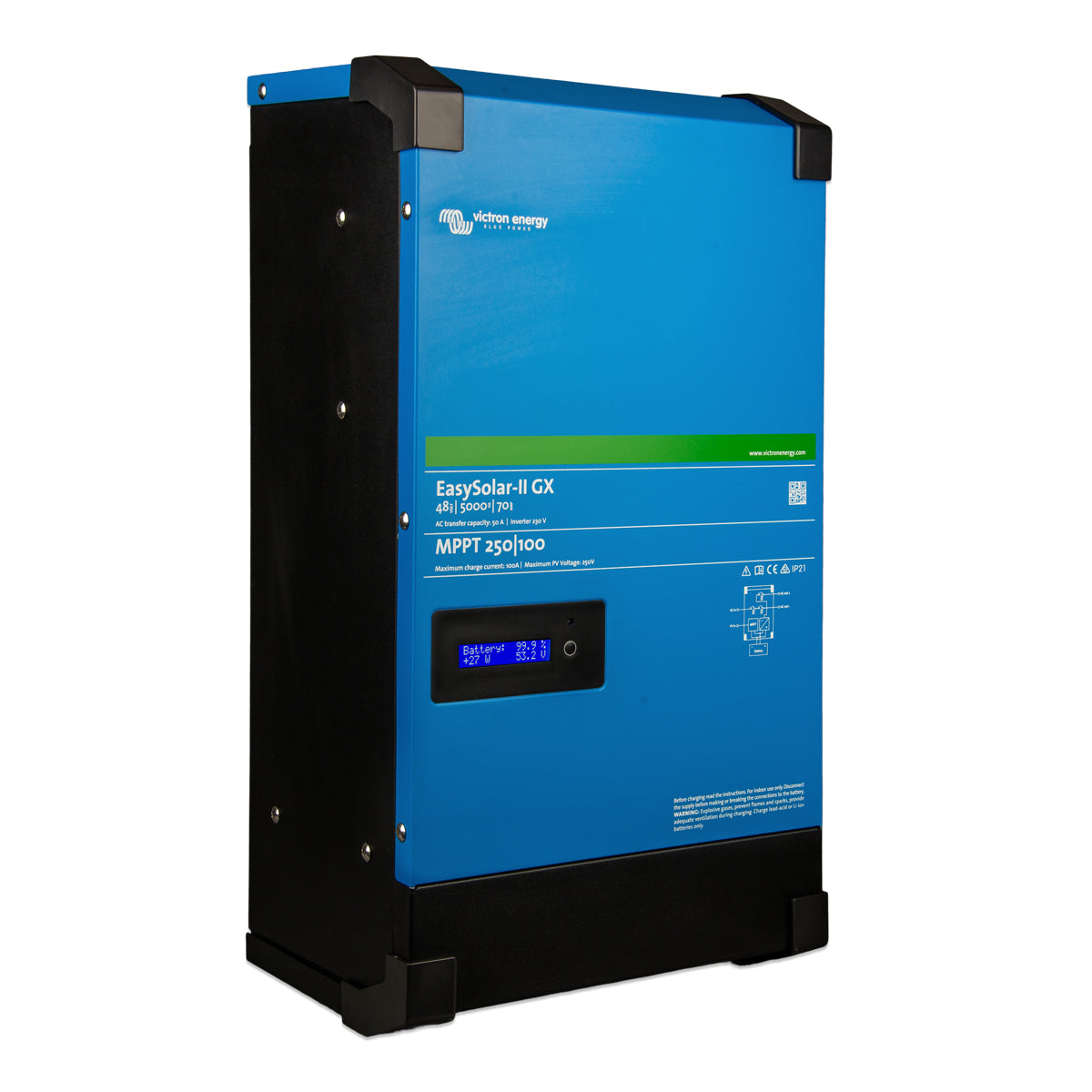

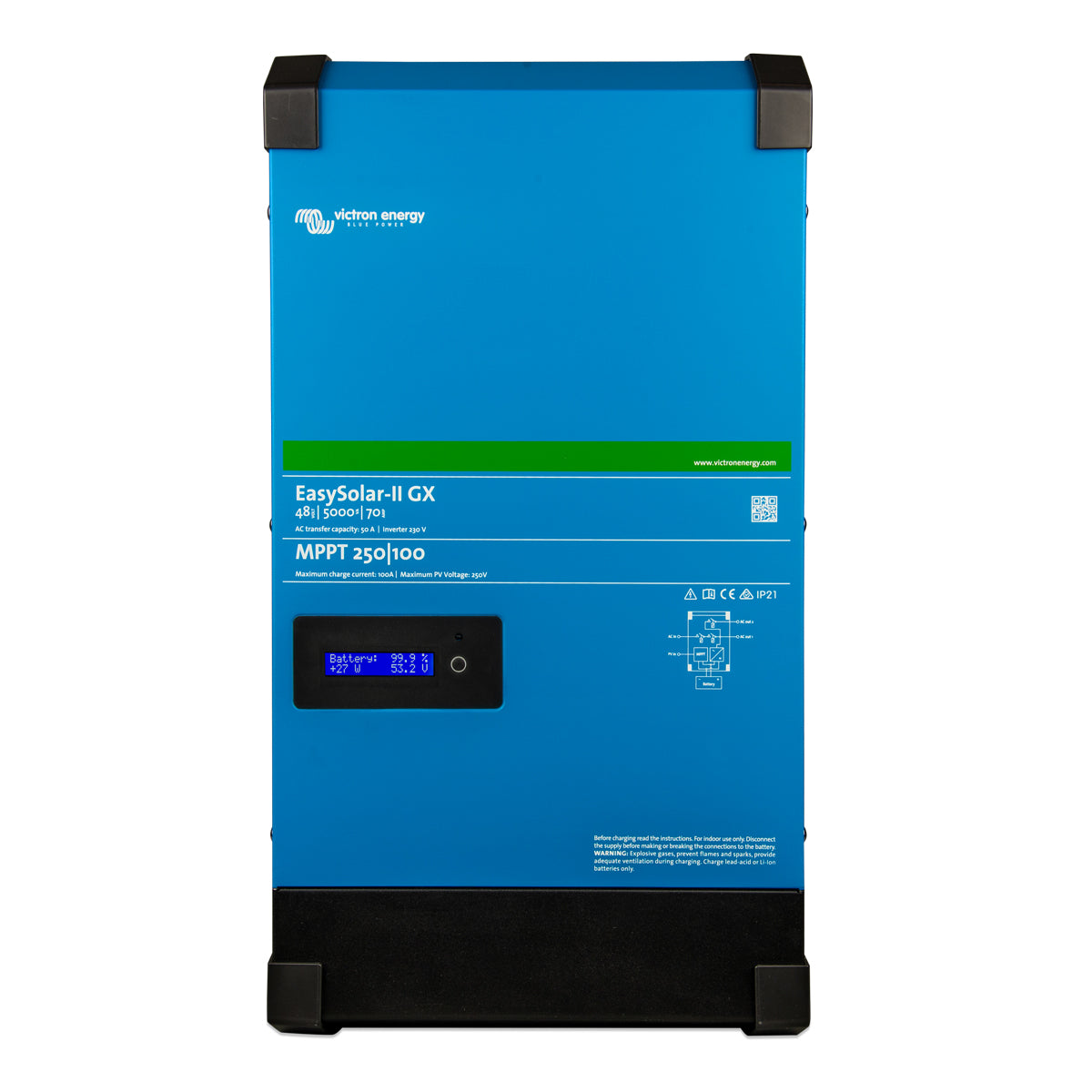

EasySolar-II - 48/5000/70-50 MPPT 250/100 GX
- PowerControl & PowerAssist: Yes.
- Transfer switch: 50A.
- Maximum AC input current: 50A.
- Auxiliary output: Yes(50A).
Inverter
- Input voltage range: 38 – 66V.
- Output: Output voltage: 230 VAC ± 2%, Frequency: 50 Hz ± 0,1% (1).
- Cont. output power at 25°C: 5000VA / 4000W.
- Cont. output power at 40°C / 65°C: 3700W / 3000W.
- Maximum apparent feed-in power: 4400 W / 5000 VA.
- Peak power: 9000W.
- Maximum efficiency: 96%.
- Zero load power: 18W.
- Zero load power in AES mode: 12W.
- Zero load power in Search mode: 2W.
Charger
- AC Input: Input voltage range: 187-265 VAC, Input frequency: 45 – 65 Hz.
- Charge voltage 'absorption': 57,6V.
- Charge voltage 'float': 55,2V.
- Storage mode: 52,8V.
- Maximum battery charge current: 70A.
- Battery temperature sensor: Yes.
- Programmable relay: Yes.
- Protection: a - g.
- VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration.
- General purpose com. port Yes, 2x.
Solar Charge Controller
- Model SmartSolar MPPT: 250/70-Tr.
- Maximum output current: 100A.
- Maximum PV power: 5800W.
- Maximum PV open circuit voltage: 250V.
- Maximum efficiency: 99%.
- Self-consumption; 20mA.
- Charge voltage 'absorption', default: 57,6V.
- Charge voltage 'float', default setting: 55,2V.
- Protection: a – e.
General
- Interfaces: VE.Can, USB, Ethernet, VE.Direct, wifi.
- Remote on-off: Yes.
- Operating temp. range: -40 to +65°C (fan assisted cooling).
- Humidity (non-condensing): max 95%.
- 5 year warranty.
Enclosure
- Material & Colour: aluminium (blue RAL 5012).
- Protection category: IP21.

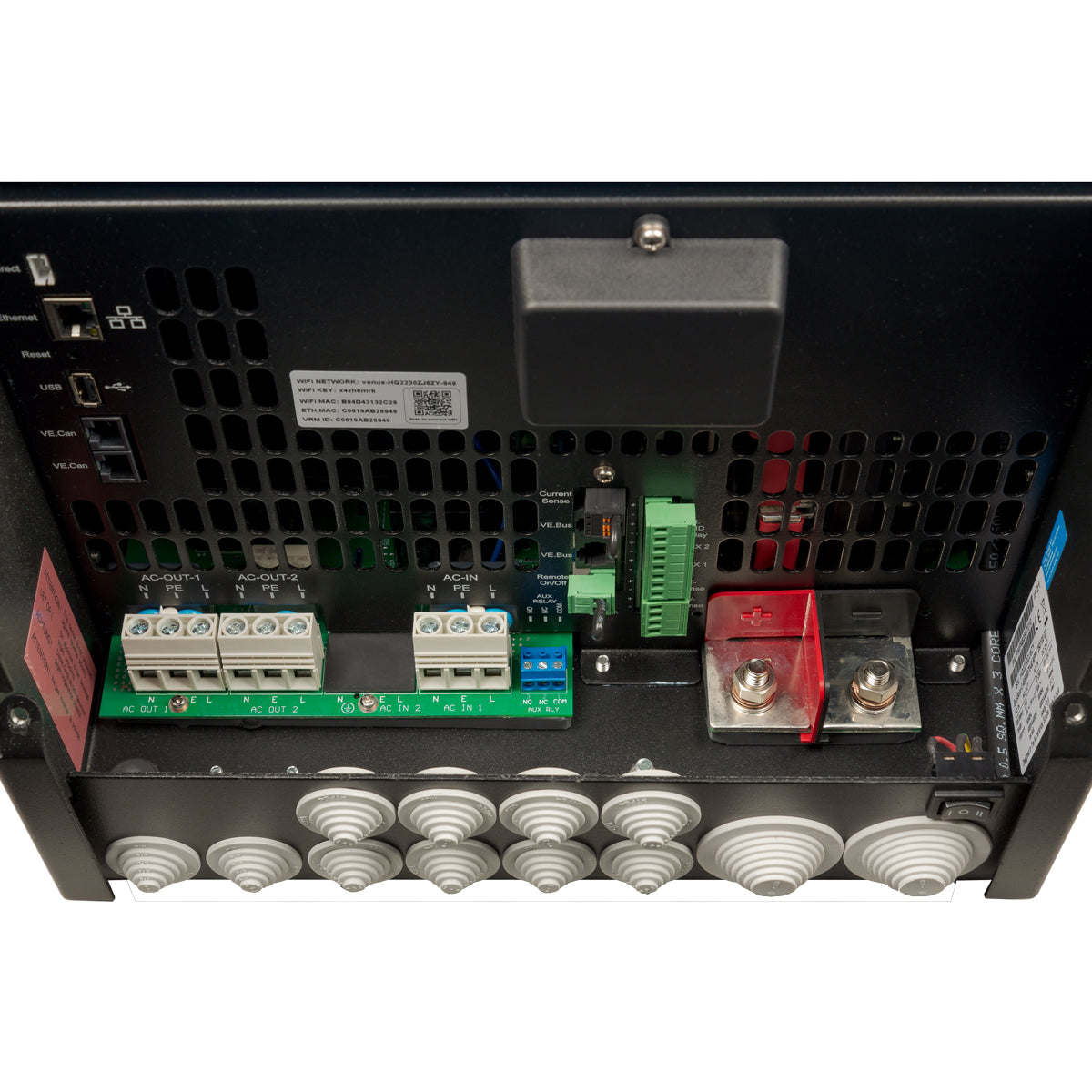

- Battery-connection: M8 bolts.
- PV connection: M6 bolts.
- 230 V AC-connection: Screw terminals 13 mm2 (6 AWG).
- Weight: 26kg.
- Dimensions (hxwxd)(mm): 604 x 323 x 253
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
