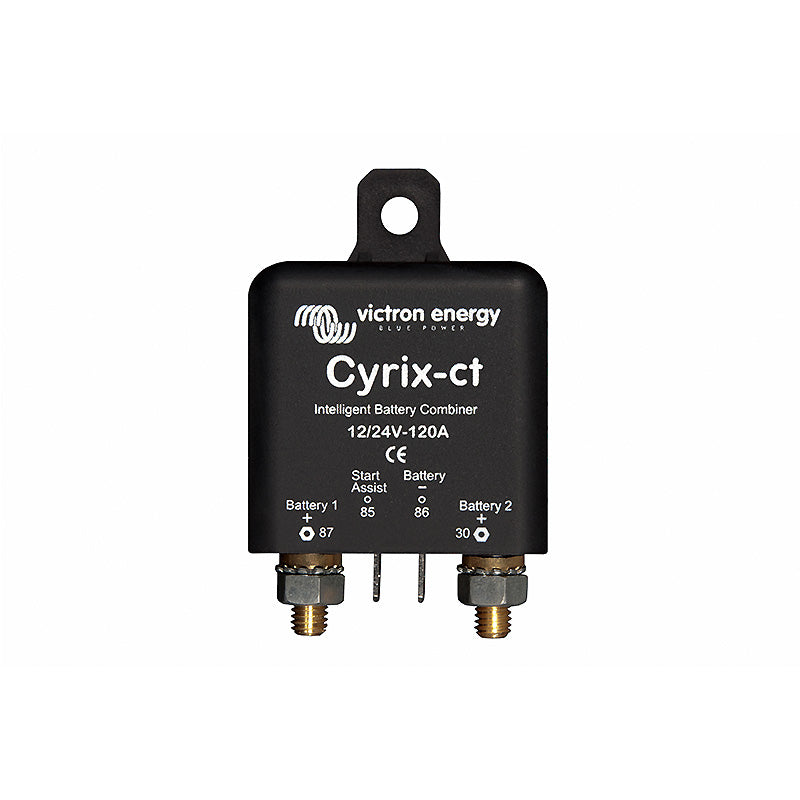

Some battery combiners (also called voltage-controlled relay, or split charge relay) will disconnect a battery in case of a short but high amperage load. A battery combiner also may fail to connect a large but discharged battery bank because the DC voltage immediately drops below the disengage value once the batteries are connected. The software of the Cyrix-ct 12/24 does more than simply connect and disconnect based on battery voltage and with a fixed time delay. The Cyrix-ct 12/24 looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period. The time delay depends on the voltage deviation from the trend.

Features

• Long bolts to allow connection of more than one power cable.
• Protection against overheating (due to a long duration overload e.g.)
• LED status indication (Cyrix 12/24 230 only).
• 12/24 V auto ranging.
• No voltage loss.
• Prioritising the starter battery.
• Bidirectional voltage sensing and power supply from both batteries.
• Parallel connection in case of emergency (Start Assist).

Technical Specifications

• LED status indication: No.
• Continuous current: 120 A.
• Cranking rating (5 seconds): 180 A.
• Connect voltage: From 13 V to 13,8 V and 26 to 27,6 V with intelligent trend detection.
• Disconnect voltage: From 11 V to 12,8 V and 22 to 25,7 V with intelligent trend detection.
• Current consumption when open: <4 mA.
• Current consumption when closed: 12 V: 220 mA 24 V: 120 mA.
• Start Assist: Yes (Cyrix remains engaged for 30 seconds).
• Control cable included (length 1 m): No.
• Protection category: IP54.
• Weight kg: 0,11.
• Dimensions (h x w x d in mm): 46 x 46 x 80.
