- 12/24V auto ranging.
- Programming made easy.
- A special setting for Li-ion batteries.
- Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion.
- Ultra-low current consumption.
- Over voltage protection.
- Ignition proof.
- Delayed alarm output.
- Delayed load disconnects and delayed reconnect.

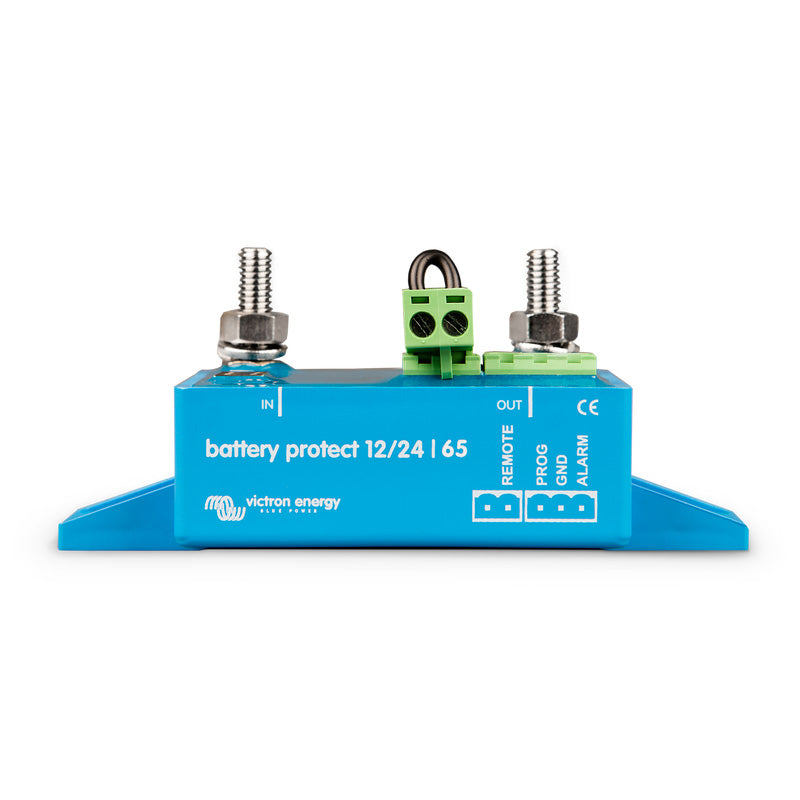

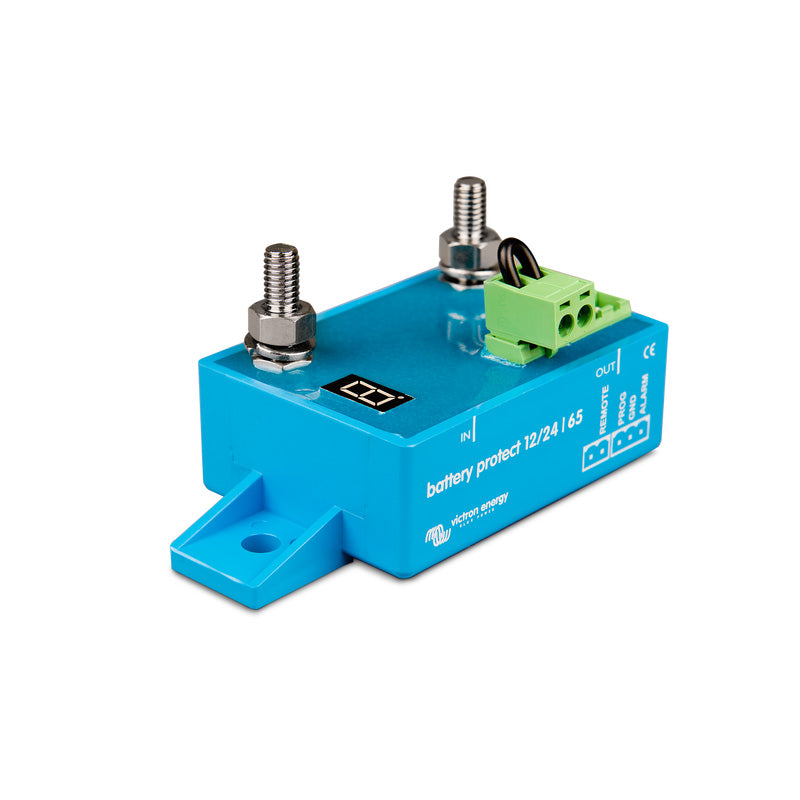

Battery Protect - BP-65
- Max. continuous load current*: 65A.
- Peak current (for 30 seconds): 250A.
- Operating voltage range: 6 –35V.
- Current consumption: When on 1,5 mA When off or low voltage shutdown: 0,6 mA.
- Alarm output delay: 12 seconds
- Maximum load on alarm output: 50 mA (short circuit proof).
- Load disconnect delay: 90 seconds (immediate if triggered by the VE. Bus BMS).
- Load reconnect delay: 30 seconds.
- Default thresholds: Disengage (10,5V or 21V); Engage (12V or 24V).
- Operating temperature range: Full load (-40°C to +40°C) (up to 60% of nominal load at 50°C)
- IP rating: Electronics (IP67) (potted) Connections (IP00).
- Connection: M6.
- Weight: 0,2 kg.
- Dimensions (hxwxd): 40 mm x 48 mm x 106 mm.
- 5 year warranty
