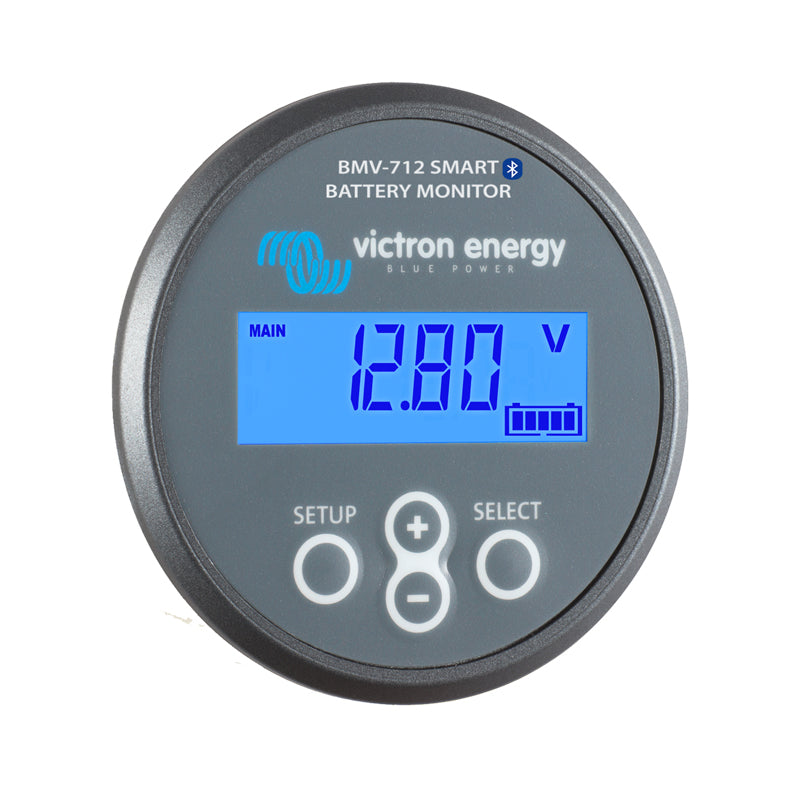

The BMV 712 has been designed to minimize power consumption. The alarm relay therefore is a bistable relay, and the current draw remains low whatever the position of the relay.

Key Features

• Easy to install.
• Midpoint voltage monitoring.
• Very low current draw from the battery.
• Bi-stable alarm relay.

Other features

• Battery voltage, current, power, ampere-hours consumed and state of charge.
• Remaining time at the current rate of discharge.
• Programmable visual and audible alarm.
• Programmable relay, to turn off non-critical loads or to run a generator when needed.
• 500 Amp quick connect shunt and connection kit.
• Shunt selection capability up to 10.000 Amps.
• VE. Direct communication port.
• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health.
• Wide input voltage range: 9,5 – 95V.
• High current measurement resolution: 10 mA (0,01A).
• Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.

Technical Specifications
Battery Monitor

• Supply voltage range: 6,5 - 95 VDC.
• Current draw, back light off: < 1mA.
• Input voltage range, auxiliary battery: 6,5 - 95 VDC.
• Battery capacity (Ah): 20 - 9999 Ah.
• Operating temperature range: -40 +50°C.
• Measures voltage of second battery, or temperature, or midpoint: Yes.
• Temperature measurement range: -20 +50°C.
• VE. Direct communication port: Yes.
• Bistable relay: 60V / 1A normally open (function can be inverted).

Installation & Dimensions

• Installation: Flush mount.
• Front: 63mm diameter.
• Front bezel: 69 x 69mm.
• Body diameter: 52mm.
• Body depth: 31mm.
