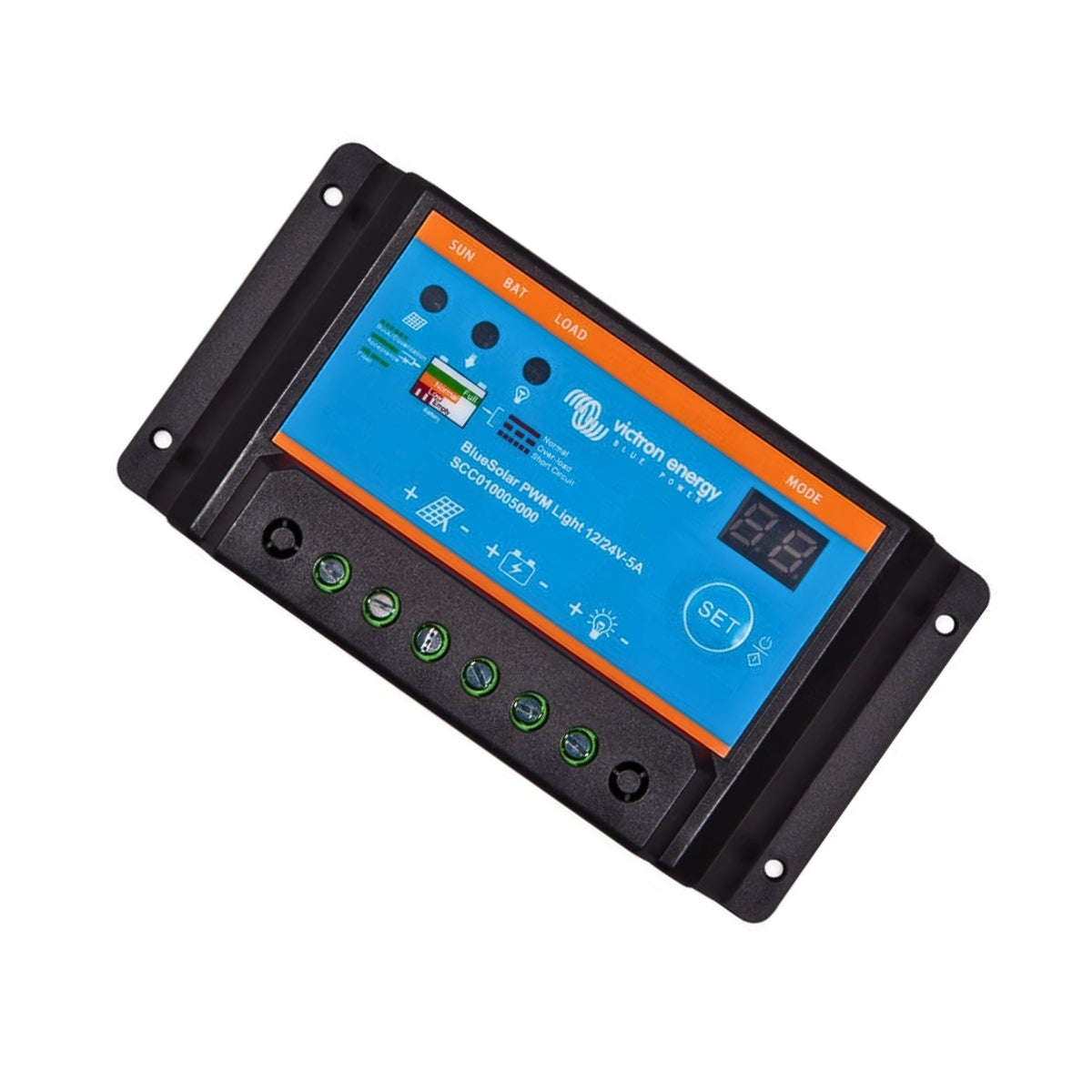

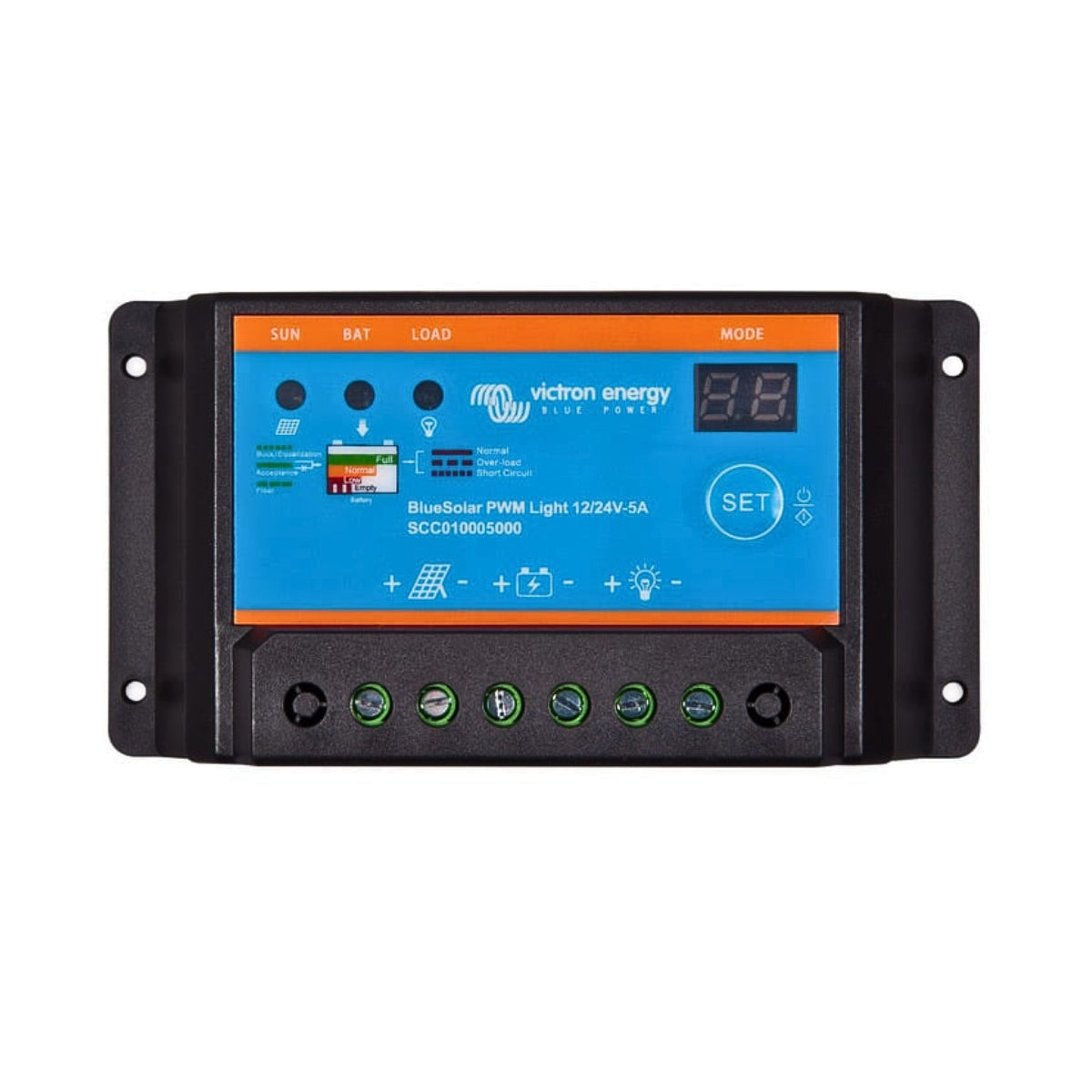

Features
- Load output with low battery voltage disconnect function.
- Lighting control function, one timer only.
- Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
- Three stage battery charging (bulk, absorption, float), not programmable.
- Load output protected against over load and short circuit.
- Protected against reverse polarity connection of the solar array and/or battery.
- Day/night timing options.
Technical Specifications
- Battery Voltage: 12/24 V with automatic system voltage detection.
- Rated charge current: 5A.
- Automatic load disconnect: Yes.
- Maximum solar voltage: 28V / 55V.
- Self-consumption: < 10 mA.
- Load output: Manual control + low voltage disconnect.
- Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature.
- Overload protection: Shut down after 60 s in case of 130% load, Shut down after 5 s in case of 160% load, Short circuit: immediate shut down.
- Grounding: Common positive.
- Operating temp. range: -20 to +50°C (full load).
- Humidity (non-condensing): Max 95%.
- 5 year warranty
Battery
- Charge voltage 'absorption': 14.2V / 28,4V.
- Charge voltage 'float': 13.8V / 27,6V.
- Low voltage load disconnect: 11,2V / 22,4V.
- Low voltage load reconnect: 12,6V / 25,2V (manual), 13,1V / 26,2V (automatic).
Enclosure
- Protection class: IP20.
- Terminal size: 5 mm² / AWG10.
- Weight: 0,15kg.
- Dimensions (h x w x d): 70 x 133 x 33.5mm
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
