Feature highlights
- Ultra-fast Maximum Power Point Tracking (MPPT).
- Advanced Maximum Power Point Detection in case of partial shading conditions.
- Load output on the small models.
- Battery Life: intelligent battery management by load shedding.
- Automatic battery voltage recognition.
- Flexible charge algorithm.
- Over-temperature protection and power de-rating when temperature is high.
Technical Specifications

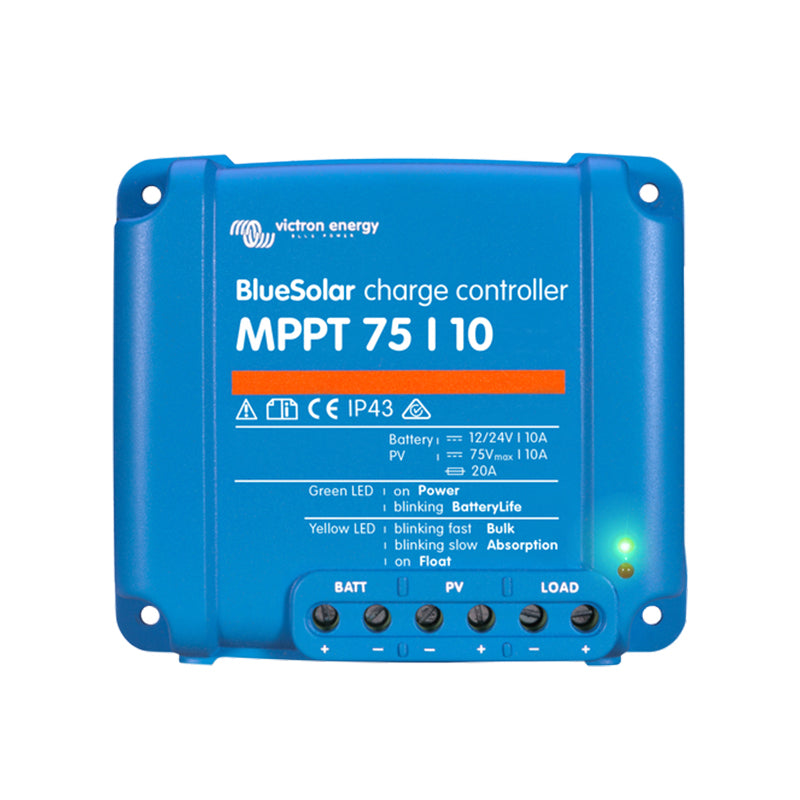

- BlueSolar charge controller: MPPT 75/10.
- Battery voltage: 12/24 V (Auto Select).
- Rated charge current: 10 A.
- Maximum PV power @ 12V: 145 W (MPPT range 15 V to 70 V resp. 95 V).
- Maximum PV power @ 24V: 290 W (MPPT range 30 V to 70 V resp. 95 V).
- Automatic load disconnect: Yes (maximum load 10 A).
- Maximum PV open circuit voltage: 75 V.
- Peak efficiency: 98 %.
- Charge voltage 'absorption': 14,4 V / 28,8 V.
- Charge voltage 'float': 13,8 V / 27,6 V.
- Charge algorithm: Multi-stage adaptive.
- Temperature compensation: -16 mV / °C resp. -32 mV / °C.
- Continuous/peak load current: 15A / 50A.
- Low voltage load disconnect: 11,1 V / 22,2 V or 11,8 V / 23,6 V or Battery Life algorithm.
- Low voltage load reconnect: 13,1 V / 26,2 V or 14 V / 28 V or Battery Life algorithm.
- Protection: Battery reverse polarity (fuse); Output short circuit; Over temperature.
- Operating temperature: -30 to +60°C (full rated output up to 40°C).
- Humidity: 100 %, non-condensing.
- Data communication port: VE.Direct.
Enclosure
- Colour: Blue (RAL 5012)

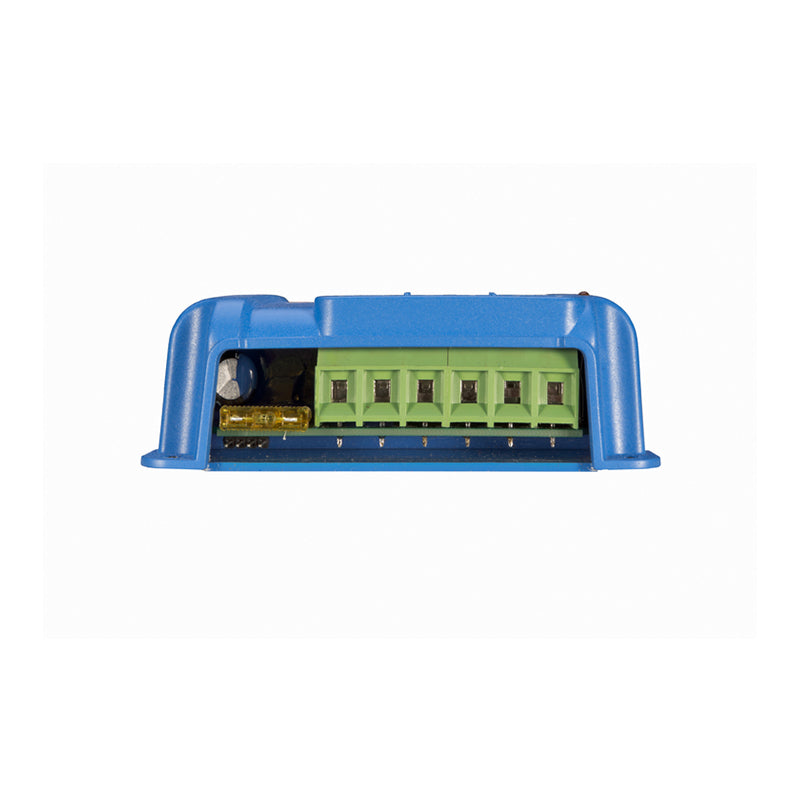

- Power terminals: 6 mm² / AWG10
- Protection category: IP43 (electronic components), IP22 (connection area).
- Weight: 0,5 kg.
- Dimensions (h x w x d): 100 mm x 113 mm x 40 mm.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
