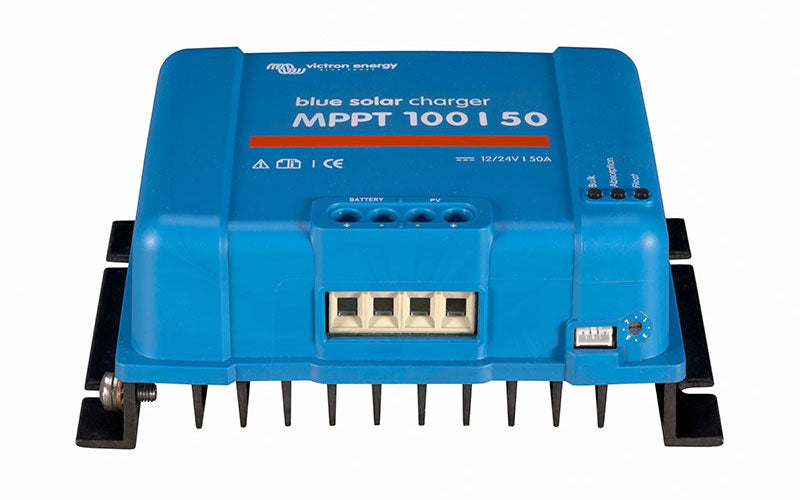

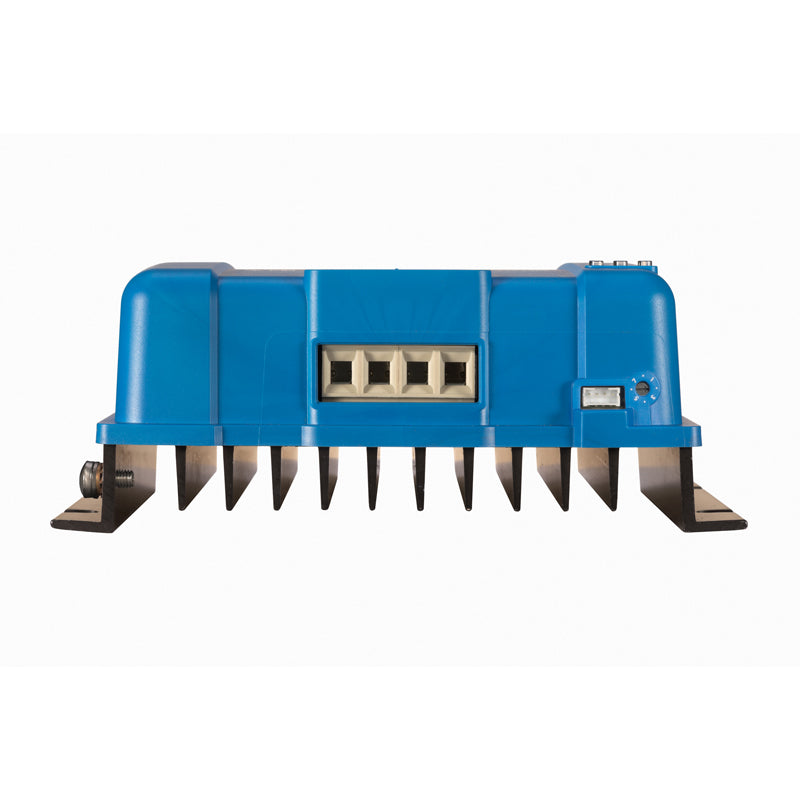

Victron Blue Solar 100V/50A MPPT Charge Controller
Victron Blue Solar 100V/50A MPPT Charge Controller
Victron Blue Solar 100V/50A MPPT Charge Controller

Victron Blue Solar 100V-50A MPPT Charge Controller

Victron Blue Solar 100V-50A MPPT Charge Controller

Regular price R 3,618.00 incl. VAT Sale price R 2,680.00 incl. VATSave R 938
R 2,33043 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Features

  • Ultra-fast Maximum Power Point Tracking (MPPT).
  • Advanced Maximum Power Point Detection in case of partial shading conditions.
  • Outstanding conversion efficiency.
  • Flexible charge algorithm.
  • Extensive electronic protection.
  • Internal temperature sensor.
  • Real-time data display options.

Technical Specifications

  • Battery voltage: 12/24V Auto Select.
  • Rated charge current: 50A.
  • Maximum PV power, 12V (1a, b): 700W.
  • Maximum PV power, 24V (1a, b): 1400W.
  • Maximum PV open circuit voltage: 100V.
  • Maximum PV short circuit current 2): 50A.
  • Maximum efficiency: 98%.
  • Self-consumption: 10 mA.
  • Charge voltage 'absorption': Default setting: 14,4V / 28,8V (adjustable).
  • Charge voltage 'float': Default setting: 13,8V / 27,6V (adjustable).
  • Charge algorithm: multi-stage adaptive.
  • Temperature compensation: -16 mV / °C resp. -32 mV / °C.
  • Protection: Battery reverse polarity (fuse, not user accessible); PV reverse polarity; Output short circuit; Over temperature.
  • Operating temperature: -30 to +60°C (full rated output up to 40°C).
  • Humidity: 95%, non-condensing.
  • Data communication port: VE.Direct.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
