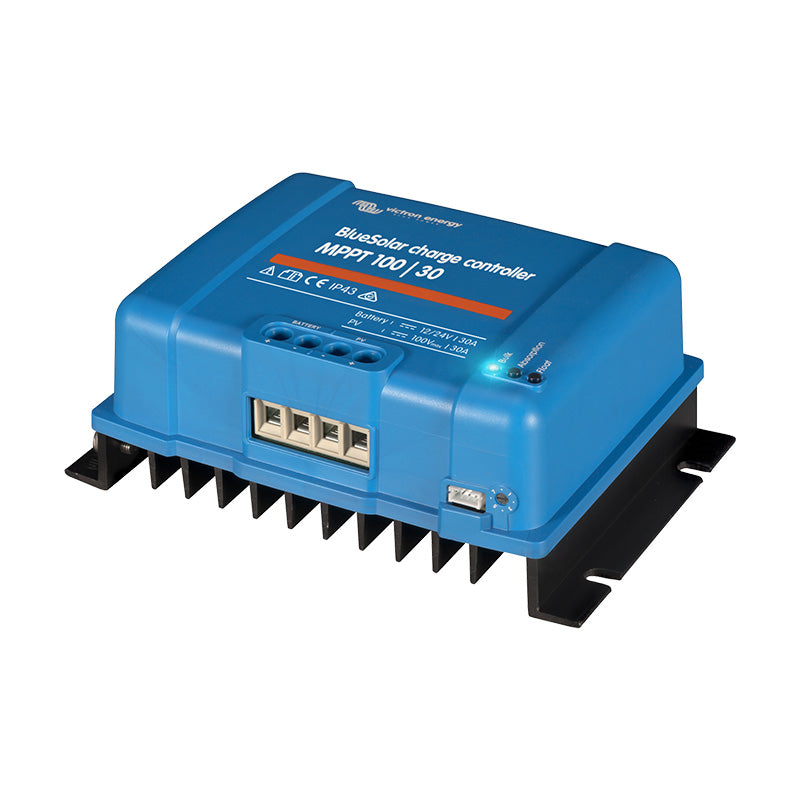

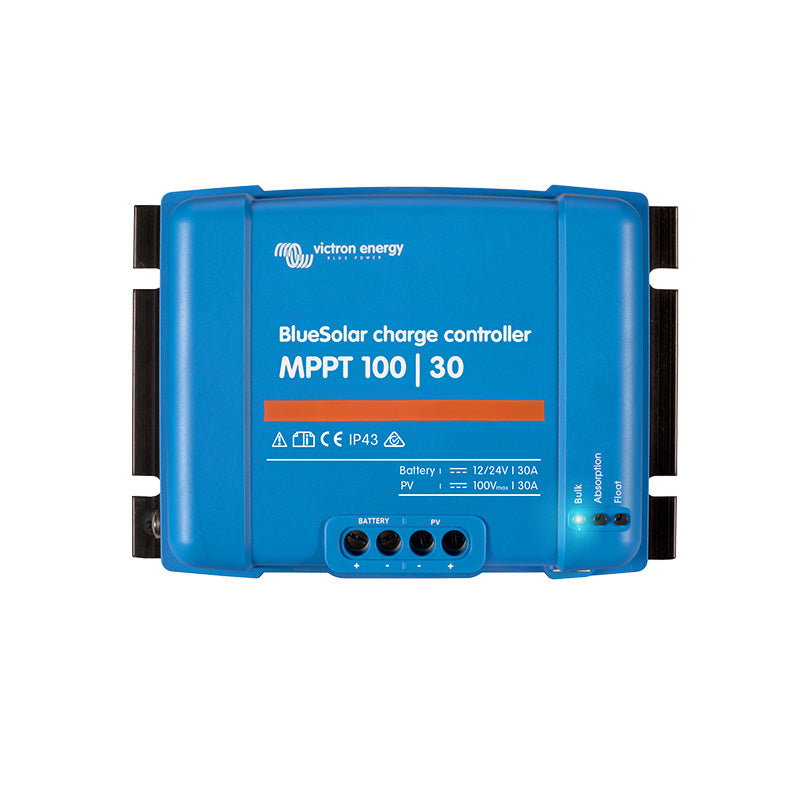

Victron Blue Solar 100V-30A MPPT Charge Controller

Victron Blue Solar 100V/30A MPPT Charge Controller - Sustainable.co.za
Victron Blue Solar 100V/30A MPPT Charge Controller - Sustainable.co.za

Victron Blue Solar 100V-30A MPPT Charge Controller

Regular price R 3,775.00 Sale price R 3,303.48 Save R 471.52
R 3,799.00 incl. VAT
/
Shipping calculated at checkout.
  • We deliver across Africa
  • Secure online payments

Feature highlights

  • Charge current up to 30 A and PV voltage up to 100 V.
  • Ultra-fast Maximum Power Point Tracking (MPPT).
  • Advanced Maximum Power Point Detection in case of partial shading conditions.
  • Outstanding conversion efficiency.
  • Flexible charge algorithm.
  • Extensive electronic protection.
  • Internal temperature sensor.

Technical Specifications

  • BlueSolar charge controller: MPPT 100/30.
  • Battery voltage: 12/24 V (Auto Select).
  • Maximum output current 30 A
  • Maximum PV power @ 12V: 440 W (MPPT range 15 V to 80 V).
  • Maximum PV power @ 24V: 880 W (MPPT range 30 V to 80 V).
  • Maximum PV open circuit voltage: 100 V.
  • Maximum efficiency: 98 %.
  • Self-consumption: 10 mA.
  • Charge voltage 'absorption': (Default setting) 14,4 V / 28,8 V.
  • Charge voltage 'float': (Default setting) 13,8 V / 27,6 V.
  • Charge algorithm: Multi-stage adaptive.
  • Temperature compensation: -16 mV / °C resp. -32 mV / °C.
  • Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature.
  • Operating temperature: -30 to +60°C (full rated output up to 40°C).
  • Humidity: 95 %, non-condensing.
  • Data communication port: VE.Direct.

Enclosure

  • Colour: Blue (RAL 5012).
  • Power terminals: 13 mm² / AWG6.
  • Protection category: IP43 (electronic components), IP22 (connection area).
  • Weight: 1,25 kg.
  • Dimensions (h x w x d): 130 mm x 186 mm x 70 mm.
