- Bluetooth Smart enabled.
- Completely encapsulated: waterproof, shockproof and ignition protected.
- The highest efficiency ever!
- Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage.
- Storage Mode: Less maintenance and aging when the battery is not in use.
- Also charges Li-ion (LiFePO₄) batteries.
- Protected against overheating.
- Two LEDs for status indication.

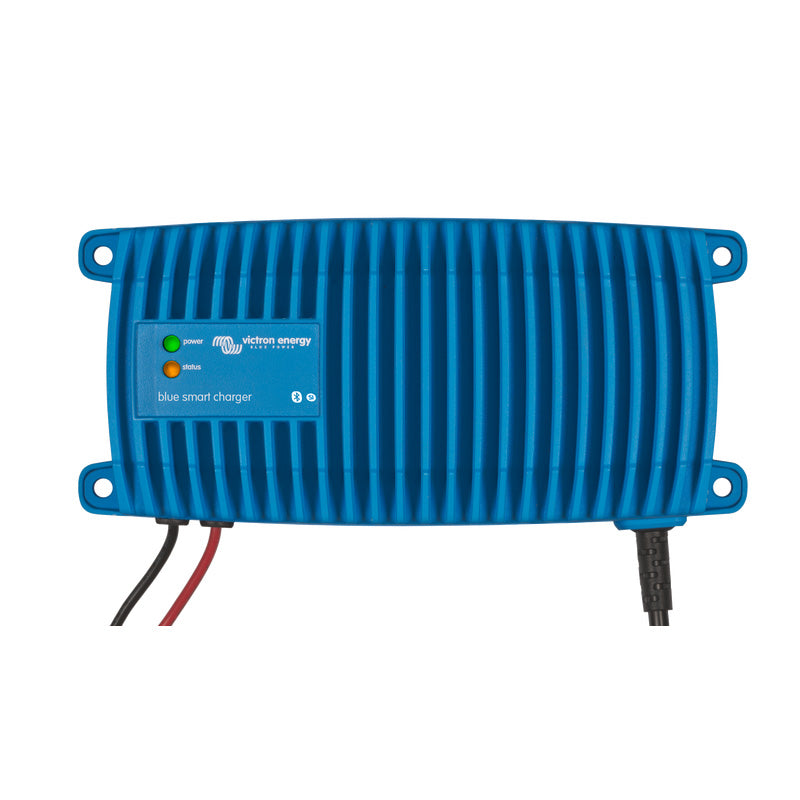

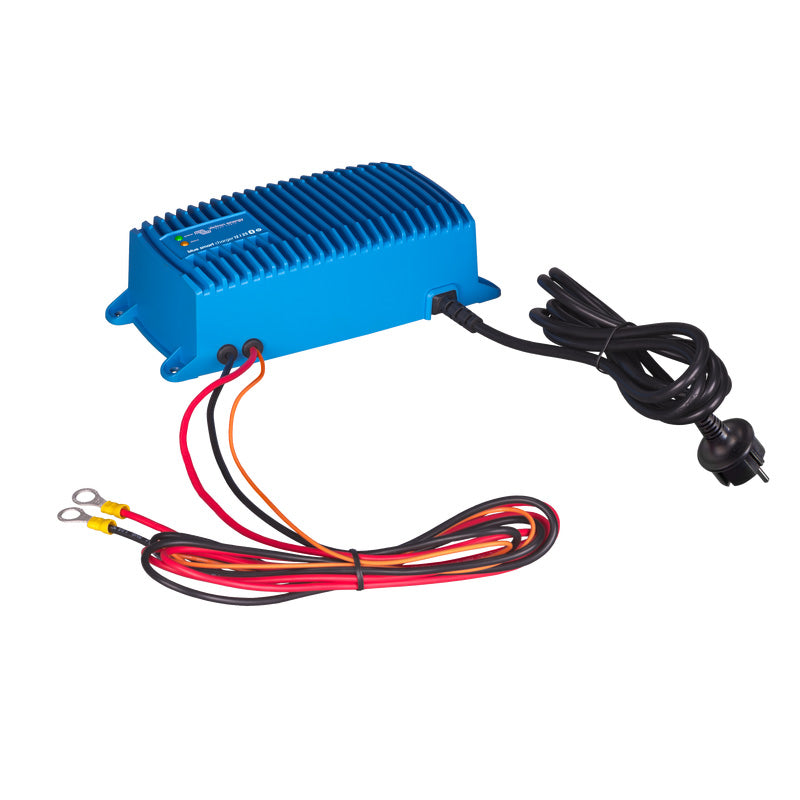

Blue Smart IP67 - 24/12 Specifications
- Input voltage range and frequency: 180-265 VAC; 45-65 Hz.
- Efficiency: 95%.
- No load power consumption: 0.5W.
- Charge voltage 'absorption': Normal: 28,8V, High: 28,8V, Li-ion: 28,4V.
- Charge voltage 'float': Normal: 27,6V, High: 27,6V, Li-ion: 27,0V.
- Charge voltage ‘storage’: Normal: 26,4V, High: 26,4V, Li-ion: 27,0V.
- Charge current, normal mode: 12A.
- Charge current, LOW: 4A.
- Charge algorithm: 5-stage adaptive.
- Can be used as power supply: yes.
- Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature.
- Operating temp. range: -20 to +60°C (full rated output up to 40°C) Derate 3% per °C above 40°C.
- Humidity: Up to 100%.
- Start interrupt option (Si) (12/25 and 24/12 models only): Short circuit proof, current limit 0,5 A, Output voltage: max one volt lower than main output.
- Dimensions (h x w x d in mm): 99 x 219 x 65.
- Weight (kg): 2.4.
- Protection Category: IP67.
- 5 year warranty.
