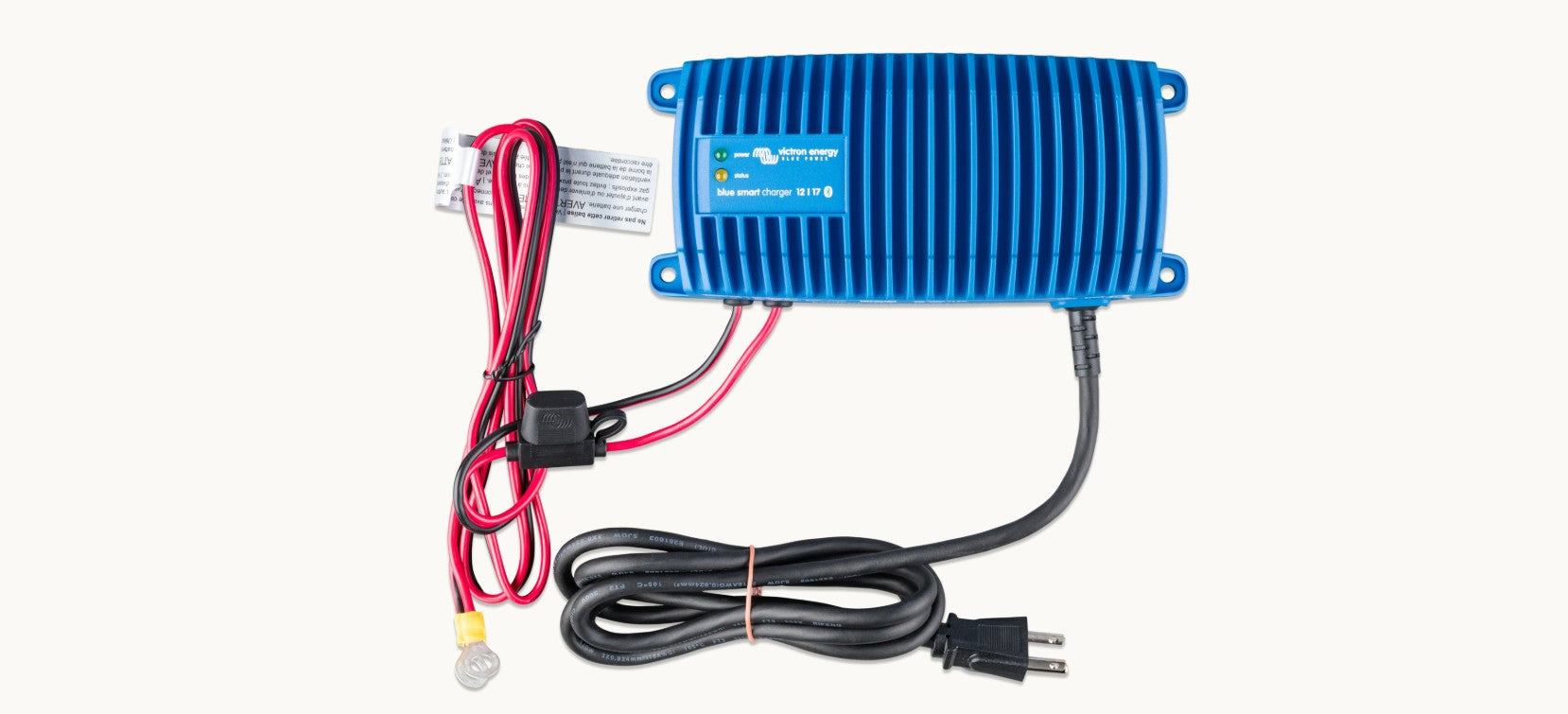

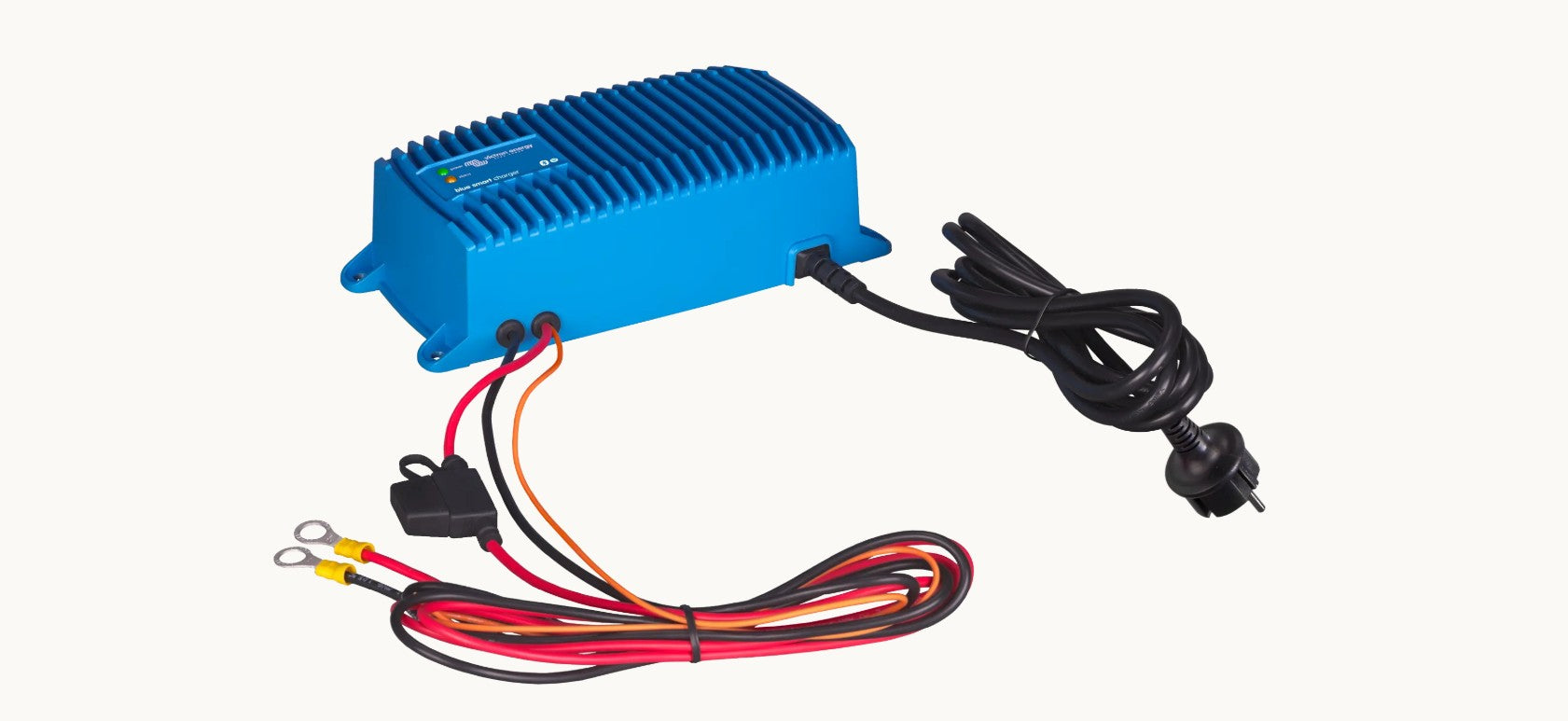

The Blue Smart IP67 Battery Charger is THE wireless solution to monitor voltage and current, change settings, and update the charger when new features become available. With built-in Bluetooth, the functionality of this IP67 charger is enhanced and comparable to our IP22 and IP65 chargers.
Key Features
- Completely encapsulated: waterproof, shockproof, and ignition protected
- Durable cast aluminium casing with resin-moulded electronics—resistant to water, oil, and dirt
- Storage Mode: Activates after 24 hours of no discharge; reduces float voltage to 2.2 V/cell (13.2 V for 12 V battery) to minimize gassing and corrosion
- Weekly voltage boost to absorption level for battery equalization, preventing electrolyte stratification and sulphation
- Charges Li-ion (LiFePO₄) batteries with a simple bulk–absorption–float algorithm
- Protected against overheating; can operate in environments up to 60°C without failure

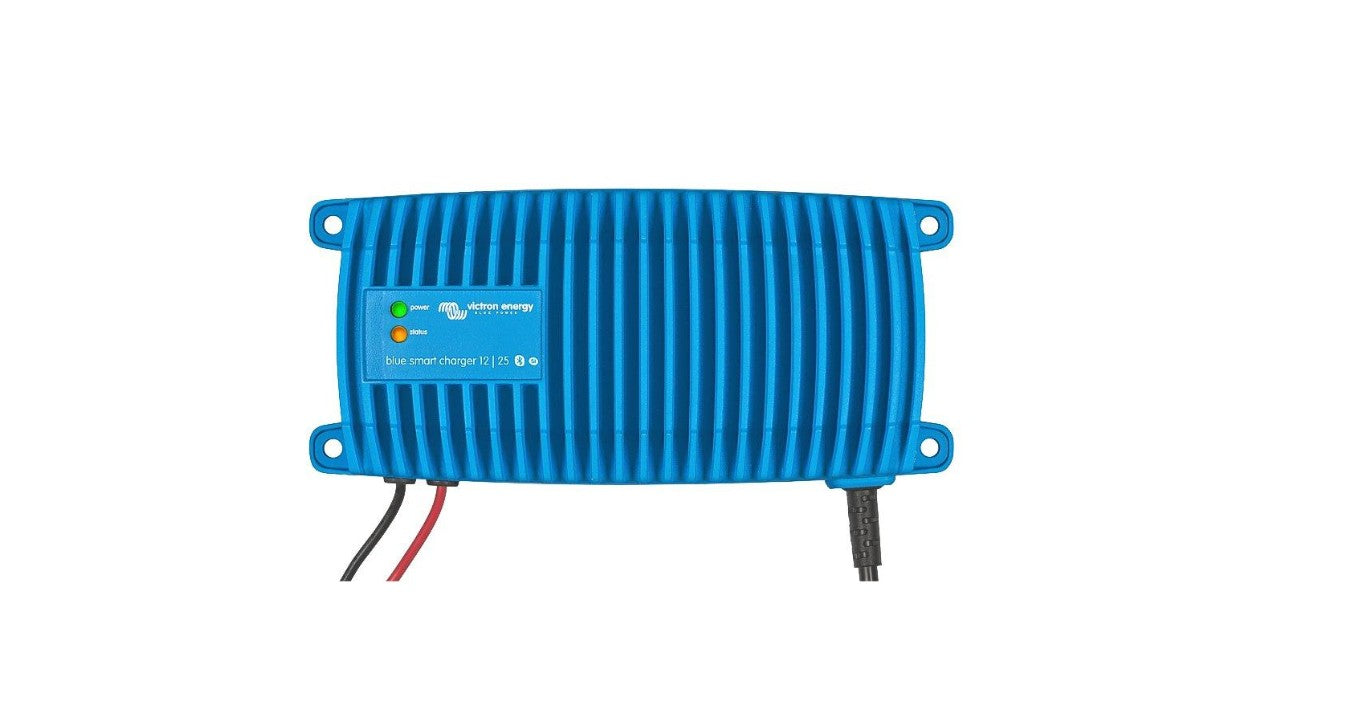

- Two LED indicators: Yellow LED shows charging status, Green LED shows power on
LED Status Indicators
- Yellow LED: Bulk charge (blinking fast), Absorption (blinking slow), Float (solid), Storage (off)
- Green LED: Power on
Technical Information
| Bluetooth | Yes |
| DC Input/Output Voltage | 24 V |
| Input Voltage (AC) | 180–265 VAC / 45–65 Hz |
| Output Current | 12 A |
| Output Power | 288 W |
| Outputs | 1 + Si |
| Dimensions (W x L x H) | 99 x 219 x 65 mm |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
