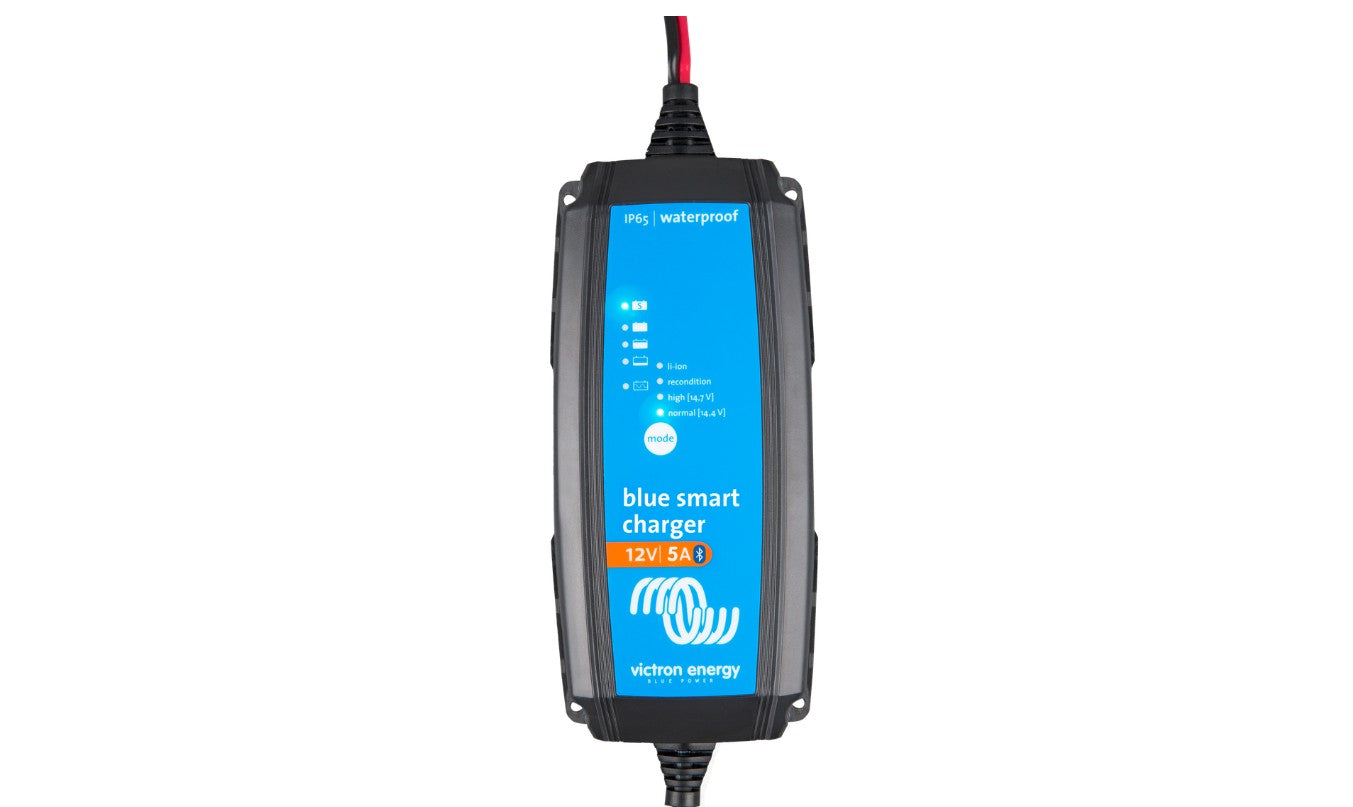

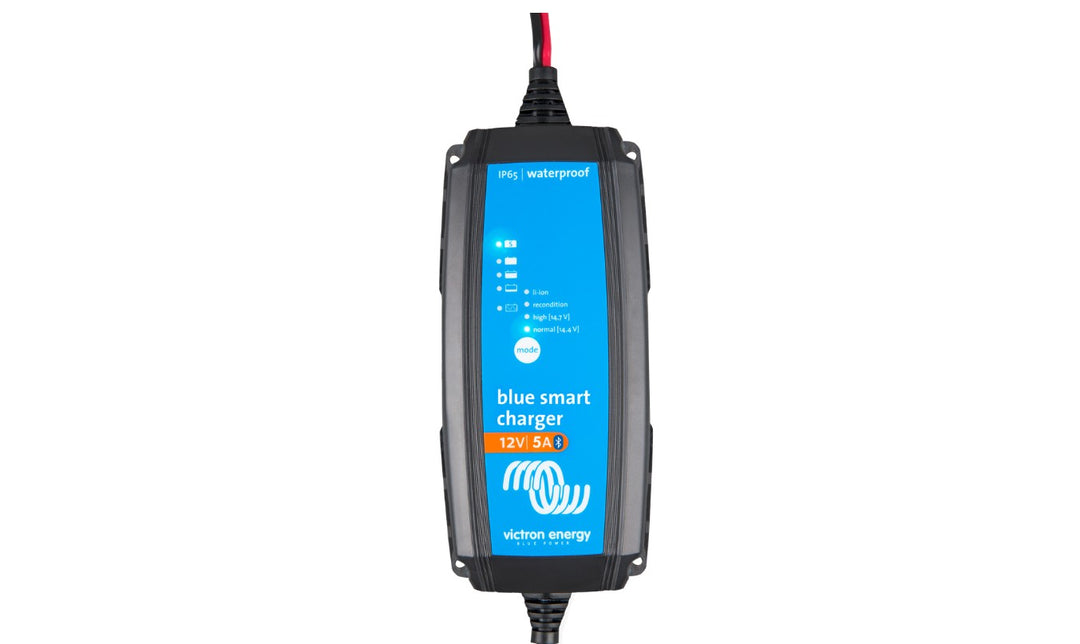

Blue Smart IP65 Charger 7A
The Blue Smart IP65 Charger is a professional-grade battery charger with built-in Bluetooth technology. It’s designed for workshop equipment and motor vehicles including classic cars, motorbikes, boats, and camper-vans.
Key Features
- Water, dust, and chemical resistant (IP65 rated)
- Seven-step smart charging algorithm
- Recovers fully discharged 'dead' batteries
- Automatic power supply function
- Operates in severe cold: down to -30°C
- Battery life-enhancing features
- Low power mode for smaller batteries
- Dedicated Li-ion battery mode
- Bluetooth Smart: configure, monitor, and read voltage/current via app
Smart Charging Technology
The intelligent seven-step charging algorithm ensures optimal performance, maximum battery health, and extended battery life. Whether maintaining or reviving a battery, this charger delivers precisely the power needed.
Revives Deeply Discharged Batteries
Unlike most chargers, the Blue Smart IP65 can attempt to recover deeply discharged batteries by applying a low current. Once a safe voltage is detected, it resumes normal charging.

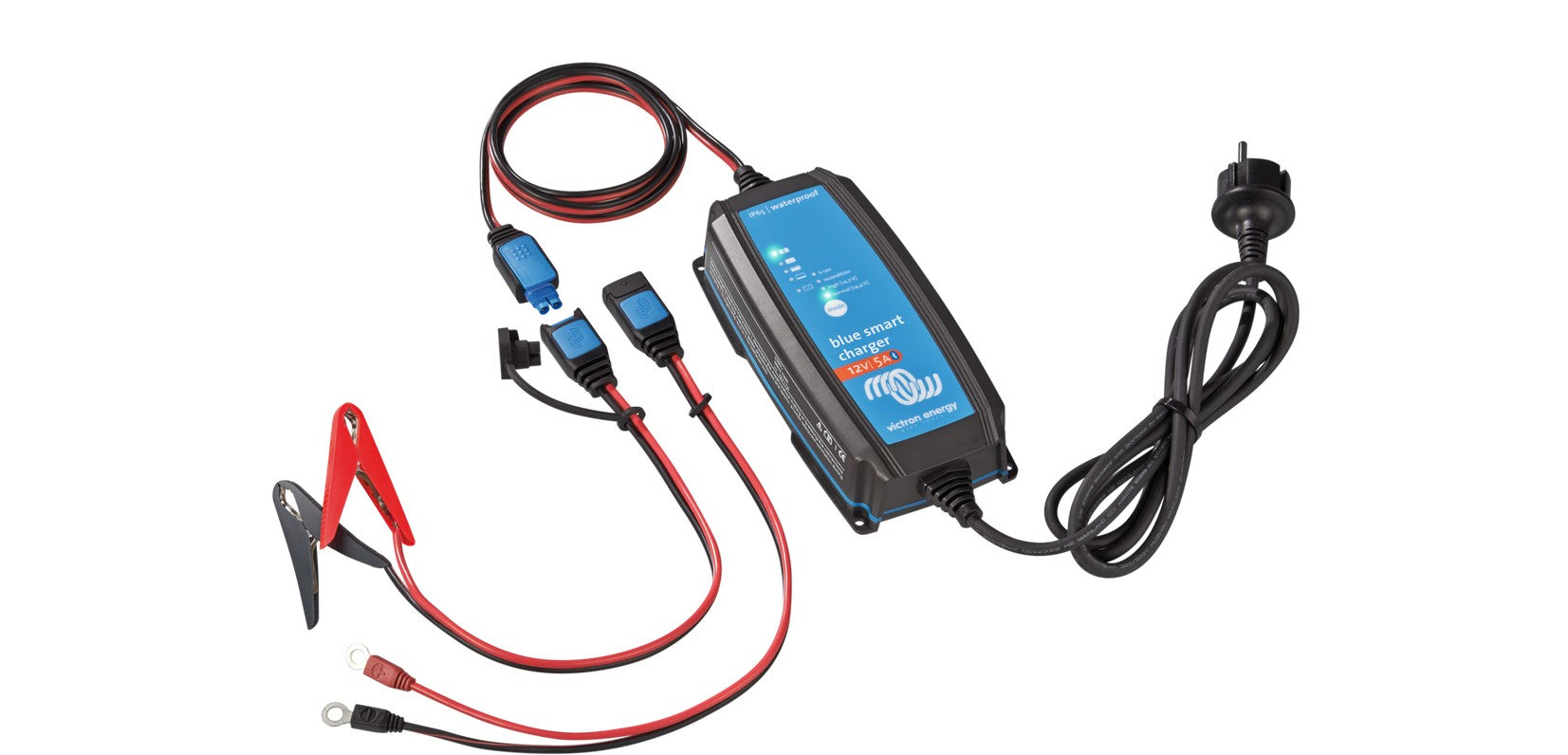

Easy to Connect
Includes both crocodile clamps and M8 eyelets for convenient and flexible battery connections. It can also be left connected permanently if desired.
Remote Monitoring via Bluetooth
Use the VictronConnect app to monitor and configure the charger directly from your smartphone, tablet, or laptop. All settings can be easily accessed and adjusted via Bluetooth.
What's Included
- Clamps
- M8 eyelets
Technical Specifications
| Input Voltage Range | 100–130 VAC |
| Efficiency | 94% |
| Standby Power Consumption | 0.5 W |
| Charge Voltage (Absorption) | Normal: 14.4 V, High: 14.7 V, Li-ion: 14.2 V |
| Charge Voltage (Float) | Normal: 13.8 V, High: 13.8 V, Li-ion: 13.5 V |
| Charge Voltage (Storage) | Normal: 13.2 V, High: 13.2 V, Li-ion: 13.5 V |
| Charge Current | 7 A |
| Low Current Mode | 2 A |
| Temperature Compensation | 16 mV/°C (lead-acid only) |
| Power Supply Mode | Yes |
| Back Current Drain | 0.7 Ah/month (1 mA) |
| Protection | Reverse polarity, output short circuit, over temperature |
| Operating Temperature | -40°C to +60°C (full rated output up to 30°C) |
| Humidity (Non-condensing) | Max 95% |
Enclosure
| Battery Connection | 1.5 m red and black cable |
| AC Connection | 1.8 m cable with US NEMA 1-15 plug |
| Protection Category | IP65 (splash and dust proof) |
| Weight | 1.9 kg |
| Dimensions (H x W x D) | 47 mm x 95 mm x 190 mm |
Compliance & Standards
- Safety: UL 1236, CSA C22.2, EN 60335-1, EN 60335-2-29
- Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
- Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
