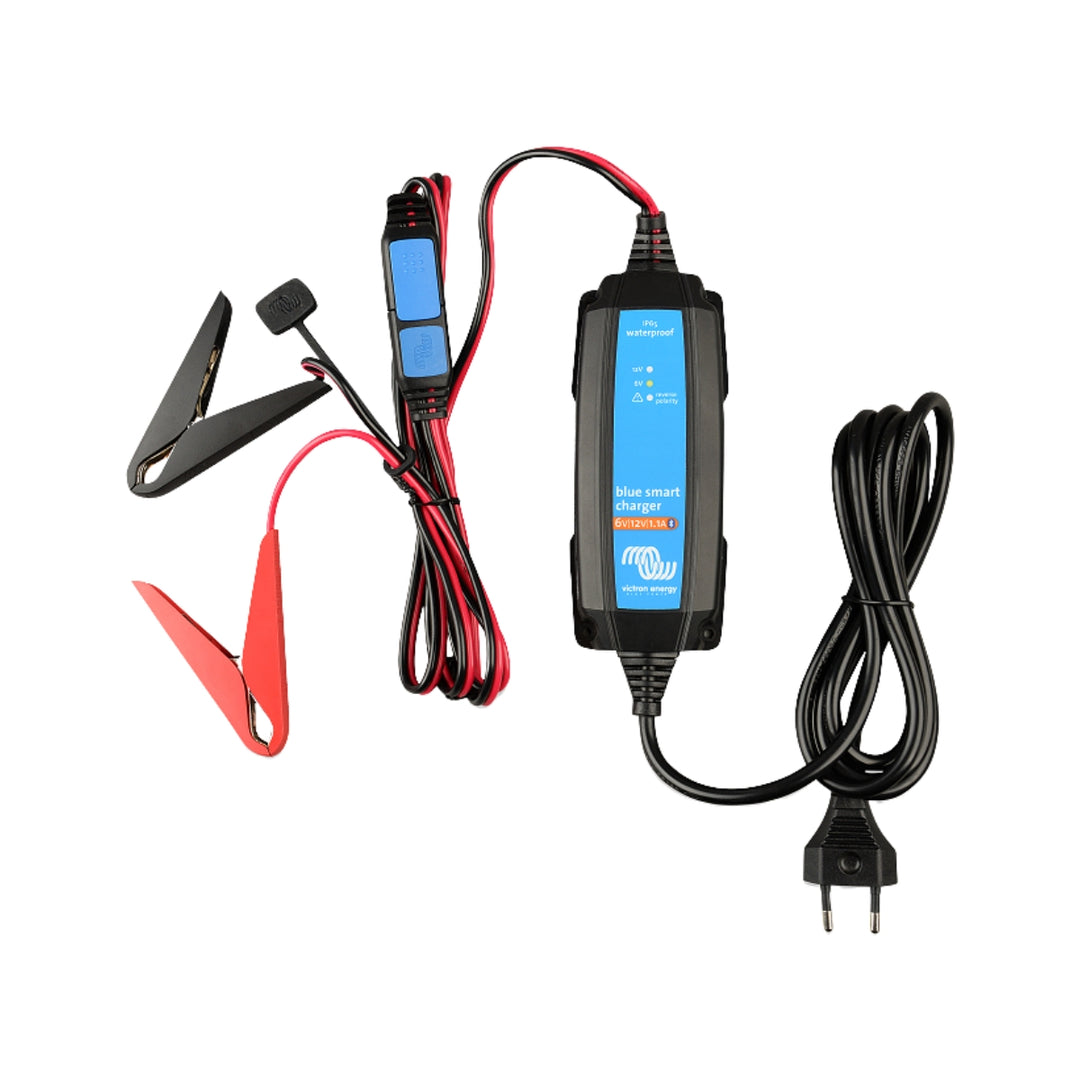

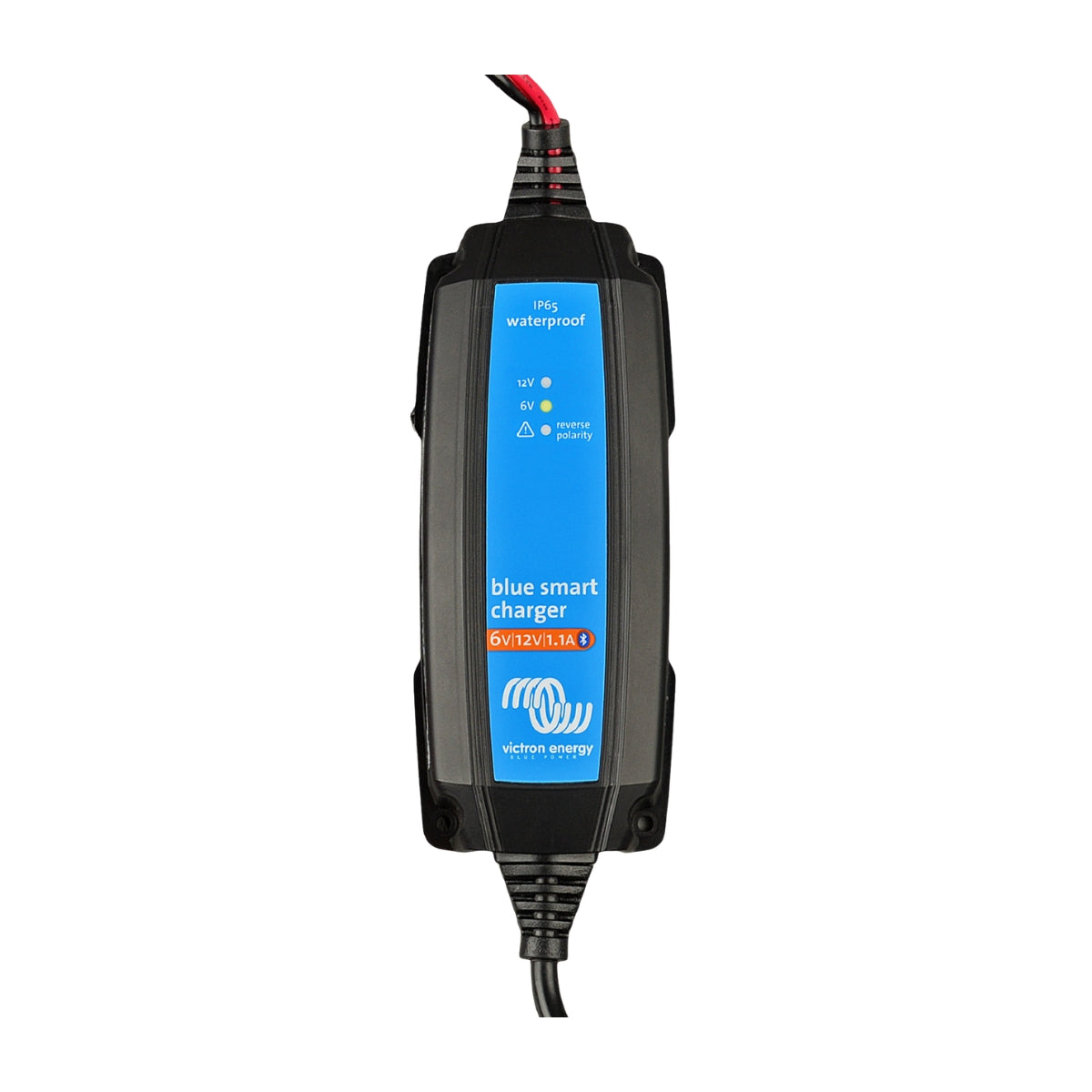

The Victron Blue Smart IP65 Battery Charger is an expertly designed and scientifically advanced 6V/12V 1.1A charger. With its IP65 rating, it can withstand even the toughest weather conditions, making it the perfect choice for outdoor or marine use. Its convenient DC connector ensures easy and efficient charging, providing reliable power for your batteries.
Other features of the Blue Smart IP65 Charger
- Setup and configure, readout of voltage and current by Bluetooth Smart.
- Water, dust and chemical resistant.
- Seven step smart charge algorithm.
- Recovery of fully discharged 'dead' batteries.
- Automatic power supply function.
- Automatic compensation for high or low temperature.
- Several other battery life enhancing features.
- Low power mode to charge smaller batteries.
- Li-ion battery mode.
Included:
- Clamps
- M8 eyelets connectors
Technical Specifications:
- Input voltage and frequency range: 100 - 250VAC | 45 - 65Hz
- Efficiency: 82%
- Standby power consumption: <0.5 W
- Minimum battery voltage: Starts charging from down to 0 V
- Charge voltage 'absorption': Normal: 7.2 V | 14.4 V / High: 7.35 V | 14.7 V / Li-ion: 7.1 V | 14.2 V
- Charge voltage 'float': Normal: 6.9 V | 13.8 V / High: 6.9 V | 13.8 V / Li-ion: Disabled
- Charge voltage 'storage: Normal: 6.6 V | 13.2 V / High: 6.6 V | 13.2 V / Li-ion: 6.75 V | 13.5 V
- Charge current: 1.1 A
- Low current mode: 0.5A
- Temperature compensation (lead-acid batteries only): 8 mV/°C | 16 mV/°C
- Power supply mode: Yes
- Back current drain: 0,1 Ah/month (140uA)
- Protection: Reverse polarity, Output short circuit, Over temperature
- Operating temp. range: -30 to 50°C (full rated output up to 30°C)
- Humidity (non-condensing): Max 95%
- Charge algorithm: 7-stage adaptive
Enclosure:
- Battery-connection Black and red cable of 1,5 meter 230V AC-connection 1.5m cable with CEE 7/16 or AS/NZS 3112 plug
- Protection category IP65 (splash and dust proof)
- Weight 0,4 kg
- Dimensions (h x w x d) 38 x 64 x 153 mm
Standards:
- Safety EN 60335-1, EN 60335-2-29
- Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
- Immunity EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
