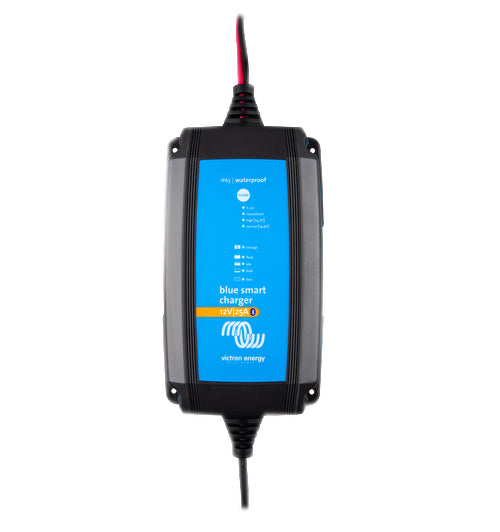

Victron Blue Smart IP65 12/25 25A Battery Charger with DC connector

Victron Blue Smart IP65 12/25 25A Battery Charger with DC connector

Victron Blue Smart IP65 12/25 25A Battery Charger with DC connector

Regular price R 4,894.00 incl. VAT Sale price R 3,625.00 incl. VATSave R 1,269
R 3,15217 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Please note that this product is available on a 1-2 week lead time.

Product Description

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Features:

  • Input voltage and frequency range: 230VAC
  • Efficiency: 94%
  • Standby power consumption: 0,5 W
  • Minimum battery voltage: Starts charging from down to 0 V
  • Charge voltage 'absorption':  Normal: 14,4 V High: 14,7 V Li-ion: 14,2 V
  • Charge voltage 'float': Normal: 13,8 V High: 13,8 V Li-ion: 13,5 V
  • Charge voltage 'storage': High: 13,2 V Li-ion: 13,5 V
  • Charge current: 4 / 5 / 7 / 10 / 15 / 25 A
  • Low current mode: 2 / 2 / 2 / 3 / 4 / 10 A
  • Temperature compensation (lead-acid batteries only): 16 mV/ºC
  • Powersupply mode: Yes
  • Back current drain: 0,7 Ah/month (1 mA)
  • Protection: Reverse polarity, Output short circuit, Over temperature
  • Operating temp. range: -40 to +60°C (full rated output up to 30°C) (cables retain flexibility at low temperature)
  • Humidity (non-condensing): Max 95%
  • Charge algorithm: 7-stage adaptive
  • Bluetooth: -4dBm, 2402 – 2480 MHz
  • Battery-connection: Black and red cable of 1,5 meter
  • 230V AC-connection: Cable of 1,5 meter with CE 7/16, CE 7/17, BS 1363 plug (UK) or AS/NZS 3112 plug
  • Protection category: IP65 (splash and dust proof)
  • Weight: 1.9Kg
  • Dimensions (h x w x d): 75 x 140 x 240 mm
  • Safety: EN 60335-1, EN 60335-2-29
  • Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
  • Immunity: EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
  • 5 year warranty



Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
