Features

• Bluetooth Smart.
• High efficiency.
• Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage.
• Storage Mode: less maintenance and aging when the battery is not in use.
• Also charges Li-ion (LiFePO₄) batteries.
• NIGHT and LOW setting.
• Protected against overheating.
• Eleven LEDs for status indication.

Technical Specifications

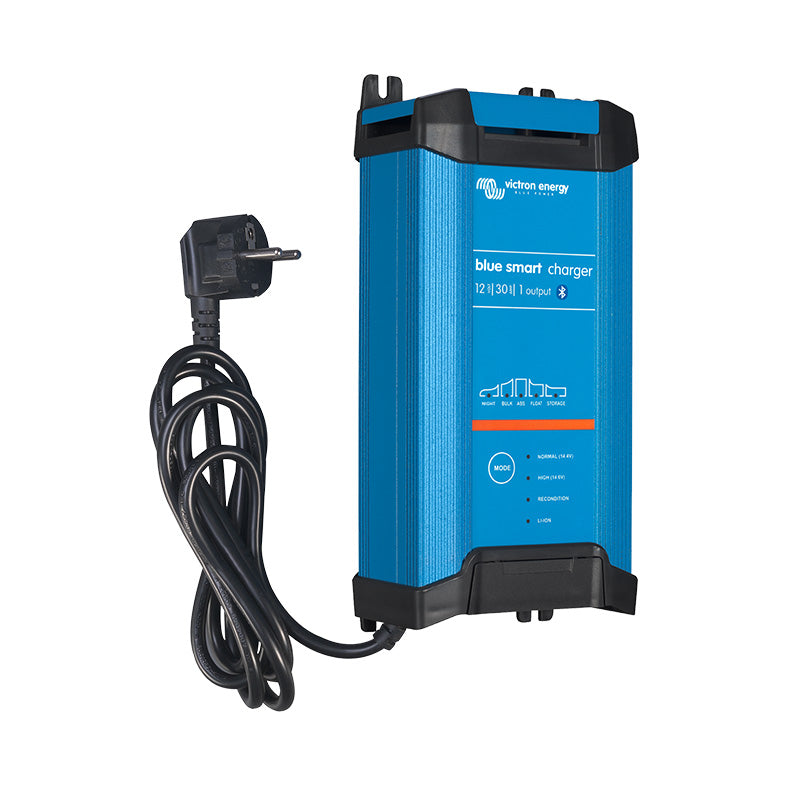

• Blue Smart IP22 Charger 12V, 1 output: 30 A.
• Input voltage range: 180 – 265 VAC.
• Charge current, normal mode: 30 A.
• Charge current, NIGHT or LOW: 15 A
• Efficiency: 93%.
• No load power consumption: 0.5 W.
• Frequency: 45 – 65 Hz.
• Number of outputs: 1.
• Charge voltage 'absorption': Normal (14,4V); High (14,7V); Li-ion (14,2V).
• Charge voltage 'float': Normal (13,8V); High (13,8V); Li-ion (13,5V).
• Charge voltage 'storage': Normal (13,2V); High (13,2V); Li-ion (13,5V).
• Charge algorithm: 6-stage adaptive.
• Can be used as power supply: Yes.
• Protection: Battery reverse polarity (fuse); Output short circuit; Over temperature.
• Operating temp. range: -20 to +50°C.
• Humidity (non-condensing): Max 98%.

Enclosure

• Material & Colour: Aluminium (blue RAL 5012).
• Battery connection Screw terminals: 13 mm² / AWG6.
• 230 V AC connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ).
• Protection category: IP22.
• Weight: 1,3 kg.
• Dimensions (h x w x d): 235 mm x 108 mm x 65 mm.
