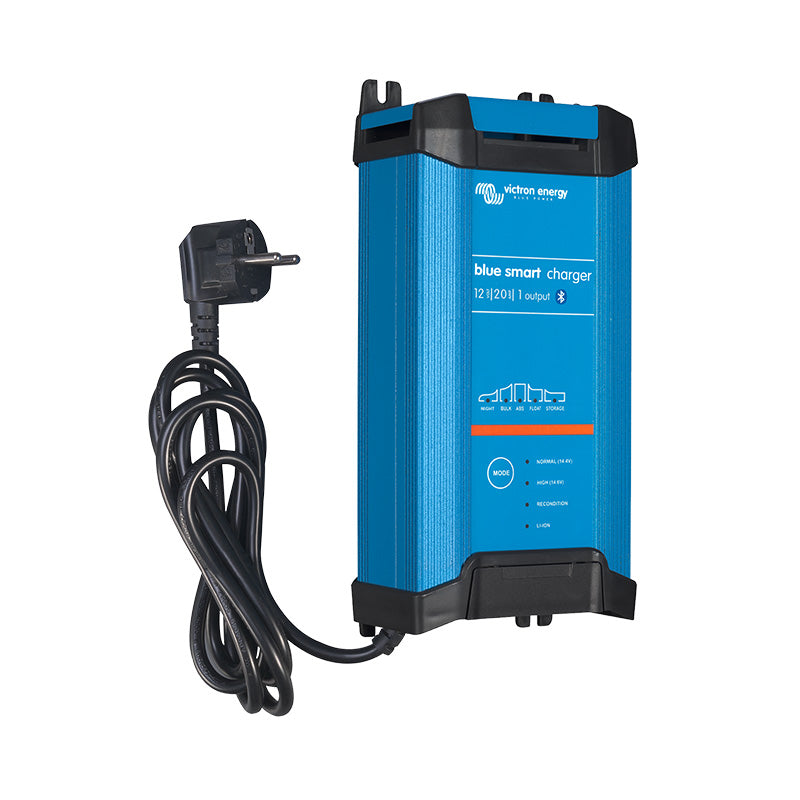

Victron Blue Smart IP22 12-20 20A 12V Battery Charger
Features
- Bluetooth Smart.
- High efficiency.
- Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage.
- Storage Mode: less maintenance and aging when the battery is not in use.
- Also charges Li-ion (LiFePO₄) batteries.
- NIGHT and LOW setting.
- Protected against overheating.
- Eleven LEDs for status indication.
Technical Specifications
- Blue Smart IP22 Charger 12V, 1 output: 20 A.
- Input voltage range: 180 – 265 VAC.
- Charge current, normal mode: 20 A.
- Charge current, NIGHT or LOW: 10 A
- Efficiency: 93%.
- No load power consumption: 0.5 W.
- Frequency: 45 – 65 Hz.
- Number of outputs: 1.
- Charge voltage 'absorption': Normal (14,4V); High (14,7V); Li-ion (14,2V).
- Charge voltage 'float': Normal (13,8V); High (13,8V); Li-ion (13,5V).
- Charge voltage 'storage': Normal (13,2V); High (13,2V); Li-ion (13,5V).
- Charge algorithm: 6-stage adaptive.
- Can be used as power supply: Yes.
- Protection: Battery reverse polarity (fuse); Output short circuit; Over temperature.
- Operating temp. range: -20 to +50°C.
- Humidity (non-condensing): Max 98%.
- 5 year warranty
Enclosure
- Material & Colour: Aluminium (blue RAL 5012).
- Battery connection Screw terminals: 13 mm² / AWG6.
- 230 V AC connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ).
- Protection category: IP22.
- Weight: 1,3 kg.
- Dimensions (h x w x d): 235 mm x 108 mm x 65 mm.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
