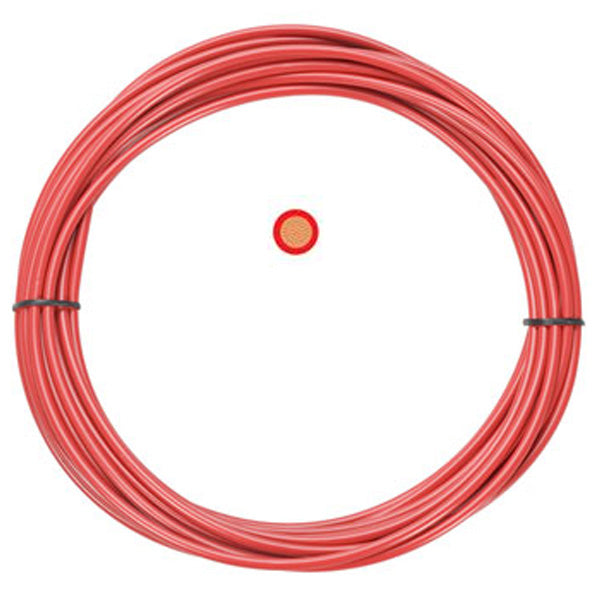

Sustainable 2.5mm² Red Panelflex
For the wiring of all types of control panels, light fittings, appliances, communication panels, signalling relay racks as well as many other applications. Manufactured to SABS 1574, these products are used by public transport services, municipalities, Telkom, Eskom, major switchgear companies, electrical contractors and electricians.
Technical Specifications (SABS 1574)
- Voltage Rating: PF type 300 V / 500 V; SF type: 600 V / 1000 V.
- Test Voltage: 5000/6000 Volts.
- Current Capacity (AC): 24 Amps.
- Temperature Range: -10° to +80°C.
- Flexibility Class: 4 & 5.
- Conductor Type: High conductivity annealed copper.
- Insulation Material: Flexible grade PVC.
- Colour Options: Black.
- Size mm²: 2.5.
- Stranding No x Diameter: 44 x 0.26 mm Ø.
- Nominal Diameter: 3.6 mm Ø.
- Mass kg / 100m: 3.10Kg.
