Product Overview

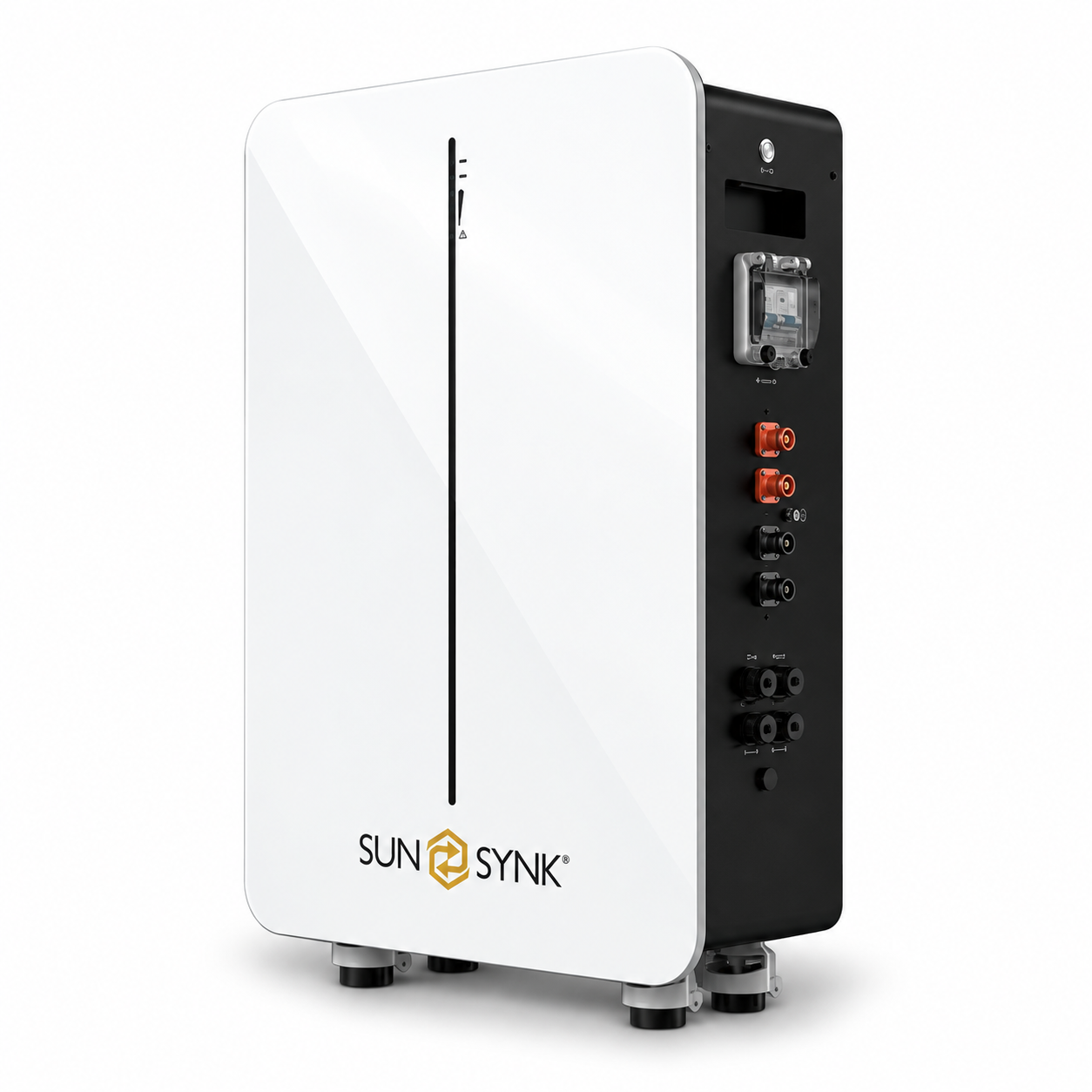

The Sunsynk R-Series 16.07kWh 51.2V IP65 Battery is a high-capacity low-voltage LiFePO4 energy storage battery designed for solar power, backup power and hybrid systems where substantial storage capacity, long cycle life and a compact floor-standing installation are required. With 16.07kWh nominal energy, 314Ah capacity and an IP65-rated enclosure, it is suited to larger residential and light commercial energy storage applications.
Key Features
- 16.07kWh nominal energy capacity with 51.2V nominal voltage and 314Ah capacity.
- 80% depth of discharge provides up to 12.856kWh usable capacity per battery.
- 0.637C discharge rating delivers up to 10.24kW discharge power.
- Supports up to 15 batteries in parallel for systems requiring increased storage capacity, providing up to 241.05kWh nominal capacity.
- IP65-rated enclosure provides enhanced protection against dust and water ingress for appropriately installed indoor or outdoor applications.
- Integrated aerosol fire suppression and isolation breaker provide additional battery safety features.
- Built-in battery management system provides over-discharge, over-charge, over-current and high/low temperature protection.
- Floor-mount design is suited to installations where wall mounting is not practical.
- Rated for 6000 cycles and supplied with a 10-year product warranty, subject to the applicable Sunsynk warranty terms and registration requirements.
Applications
- Larger residential solar power systems requiring high-capacity lithium battery storage.
- Hybrid and backup power installations using suitably compatible equipment.
- Light commercial and off-grid energy storage systems requiring scalable low-voltage battery capacity.
Why Choose This Product?
The R-Series 16.07kWh battery combines substantial storage capacity, LiFePO4 chemistry, an IP65 enclosure and scalable parallel capability in a floor-standing format. It is designed for professionally installed solar and backup power systems where reliable storage, robust protection and long service life are important.
Important Notes
- This product must be installed by a qualified electrician or technician in accordance with local wiring regulations and applicable standards.
- Battery and inverter compatibility must be confirmed for the specific system before installation.
- Equipment warranty registration should be completed within 7 days of commissioning where required by the supplier or manufacturer warranty terms.
- Sunsynk inverter and battery warranty extensions are subject to the applicable Sunsynk terms and correct product pairing.
Technical Specifications
| Specification |
Detail |
| Brand |
Sunsynk |
| Model |
SUN-R-16.07 |
| Product Type |
LiFePO4 Lithium Battery |
| Nominal Energy |
16.07kWh |
| Nominal Voltage |
51.2V |
| Capacity |
314Ah |
| Depth of Discharge |
80% |
| Usable Capacity |
Up to 12.856kWh |
| Discharge Rating |
0.637C |
| Discharge Power |
Up to 10.24kW |
| Cycle Life |
6000 cycles |
| IP Rating |
IP65 |
| Parallel Capability |
Up to 15 units, up to 241.05kWh nominal capacity |
| Mounting |
Floor mount |
| Safety Features |
Aerosol fire suppression, integrated isolation breaker and BMS protection |
| Warranty |
10 years, subject to applicable warranty terms and registration requirements |
