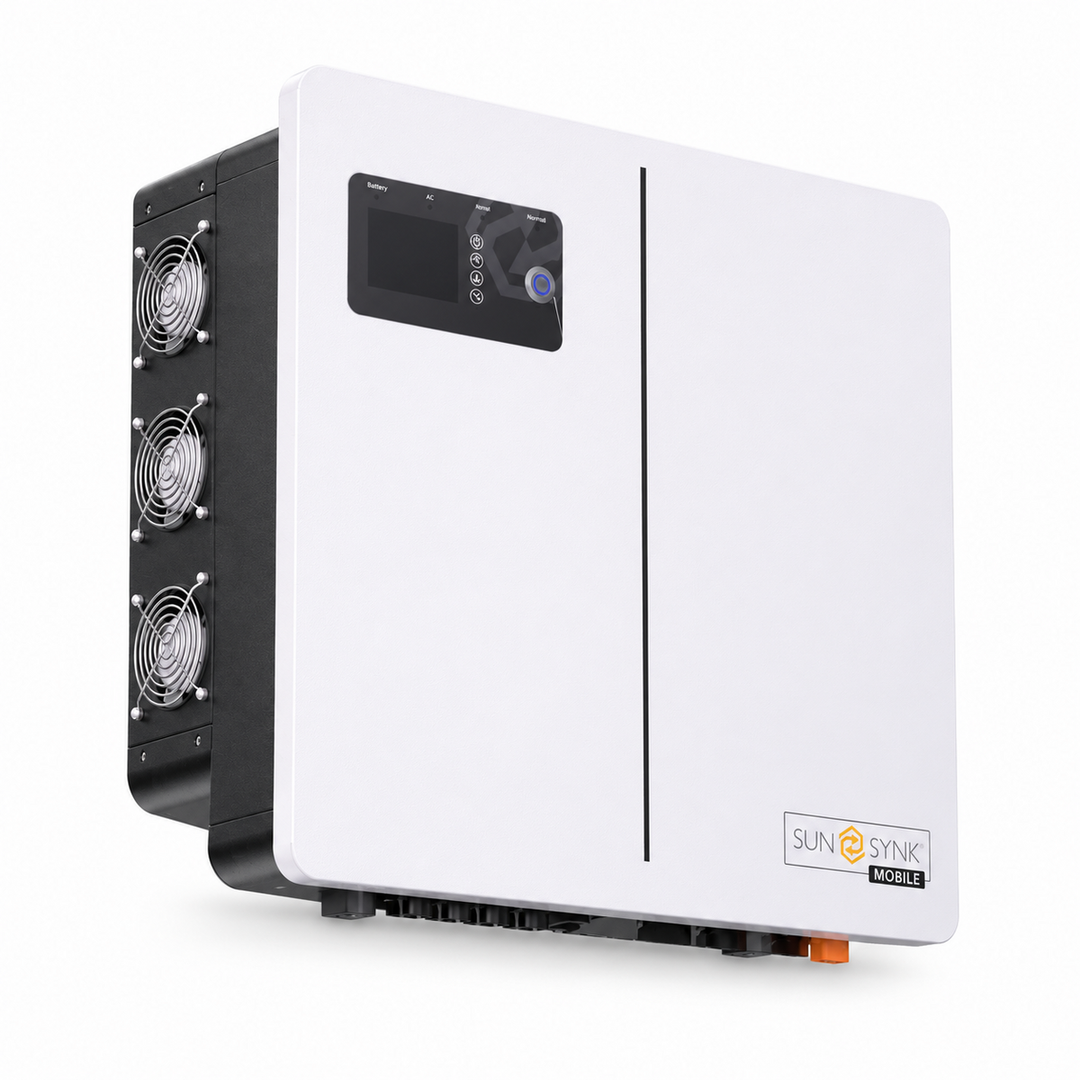

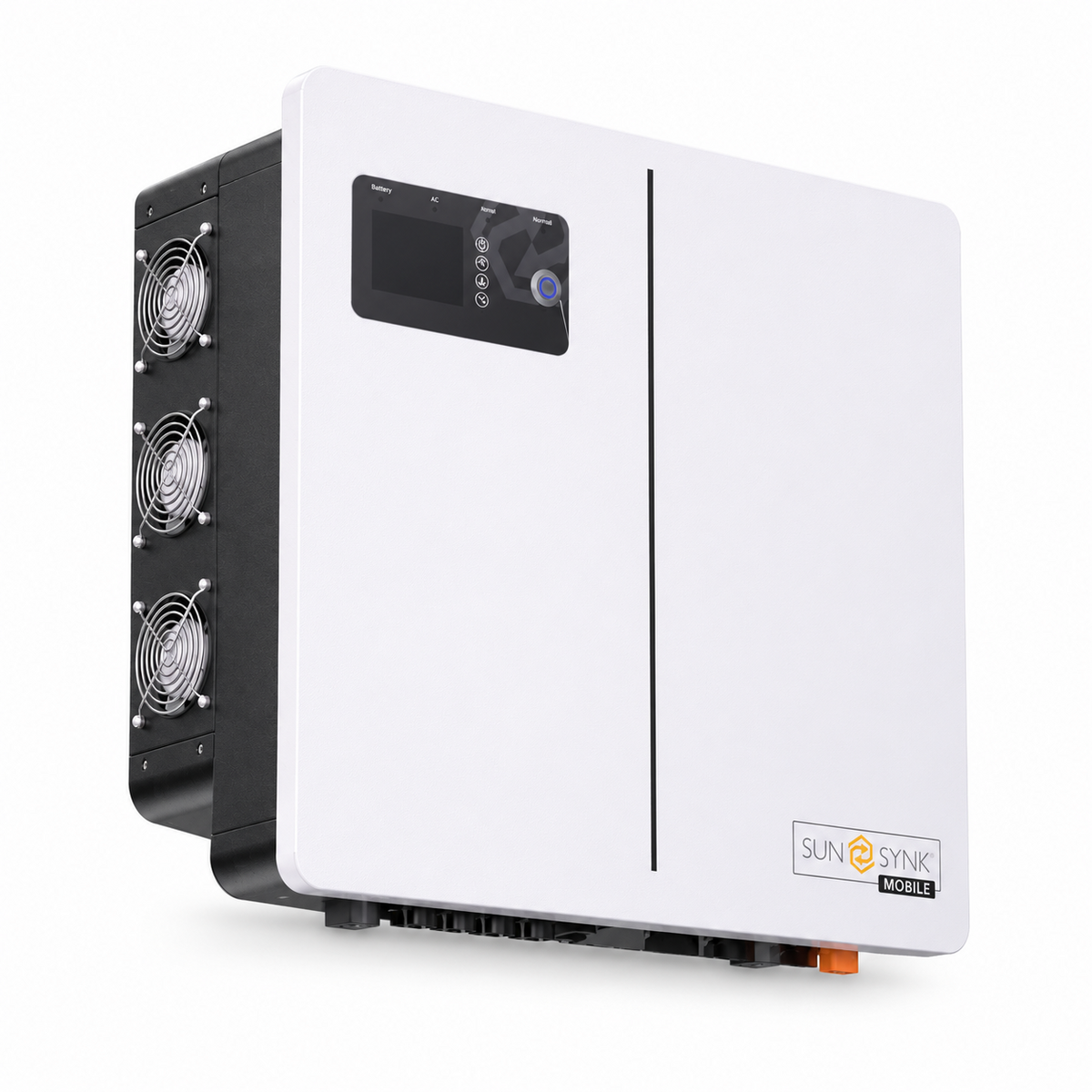

SunSynk Powerlynk 8kW Hybrid Inverter

SunSynk Powerlynk 8kW Hybrid Inverter

Price
Regular price
Regular price R 20,39900 Sale price
Save R 4,080.05
R 14,190.39 excl. VAT
/
Tax included. Shipping calculated at checkout.
  • Available - Ready to order
  • Backordered, shipping soon
  • Secure online payments
  • We deliver across Africa

Product Overview

The Sunsynk Mobile Lynks 8kW IP41 is a single-phase, second-generation hybrid inverter for solar and battery energy systems. It is designed for homes and small business installations requiring up to 8,000W of backup output, with two MPPT channels to support flexible PV array design. The inverter supports 48V Li-Ion or lead-acid batteries and is stated by the manufacturer to be compatible with Sunsynk low-voltage batteries.

Key Features

  • 8,000W maximum backup output power for supplying essential loads during grid interruptions.
  • Twin MPPT design with up to 10,000W total DC input power to help optimise solar harvesting across two PV strings.
  • 48V battery support for Li-Ion and lead-acid battery systems, with configurable charge and discharge current settings.
  • 16,000VA peak output apparent power for short-duration higher-demand loads.
  • 10ms bypass-to-inverter shift time for rapid transfer to backup operation.
  • Maximum efficiency of 97.6% and MPPT efficiency of 99.9%.
  • Integrated battery over-charge, low-voltage, over-temperature, overload and output short-circuit protection.

Applications

  • Residential solar and battery backup systems.
  • Essential-load backup for homes, offices and small business premises.
  • Hybrid systems using conventional PV strings or micro-inverters.
  • Solar installations requiring separate battery storage rather than integrated storage.

Why Choose This Product?

The Lynks 8kW IP41 offers substantial single-phase backup capacity, two independent MPPT channels and flexible 48V battery support in one hybrid inverter. It is a practical option for installations that need to combine solar generation, battery storage and grid supply while retaining the ability to configure the system around the required loads and energy storage capacity.

Important Notes

  • Installation, protection settings and commissioning should be completed by a qualified electrician or suitably qualified solar installer.
  • Confirm battery compatibility, BMS communication requirements and current limits with the battery supplier before installation.
  • The provided datasheet lists an IP41 protection rating but does not confirm indoor or outdoor installation suitability. Confirm the installation location requirements with the applicable installation manual before publishing or installing.
  • A Sunsynk Data Logger is referenced as an additional option; included accessories were not specified in the supplied datasheet.
  • Warranty terms were not provided in the supplied datasheet and should be confirmed with the supplier.

Technical Specifications

Specification Detail
Brand Sunsynk Mobile
Model Lynks 8kW IP41
Product Type Second-generation hybrid inverter
Maximum Backup Output Power 8,000W
Maximum Backup Output Apparent Power 8,000VA
Peak Output Apparent Power 16,000VA
Maximum Backup Output Current 36A
Backup Output Voltage 220/230/240Vac single-phase, configurable
Backup Output Frequency 50/60Hz (±0.2%), configurable
Maximum Backup Bypass Current 42A
Transfer Time 10ms
Output THDv (Resistive Load) <3%
Supported Battery Type Li-Ion or lead-acid
Nominal Battery Voltage 48V
Battery Input Voltage Range 40-60V
Maximum Charge Voltage ≤60V, configurable
Maximum Charge Current 150A, configurable
Maximum Discharge Current 180A, configurable
Recommended Battery Capacity 100-2,000Ah
Li-Ion Battery Communication Communicates with the battery pack BMS
Maximum PV DC Input Power 5,000W x 2 = 10,000W
Maximum PV DC Input Voltage 500V
MPPT Voltage Range 120-450V
PV Start-Up Voltage 150V
Maximum PV Input Current 23A x 2 = 46A across 2 MPPT channels
Maximum On-Grid Input Power 8,000W
Maximum On-Grid Output Power 8,000W
Maximum On-Grid Apparent Input Power 8,000VA
Maximum On-Grid Apparent Output Power 8,000VA
On-Grid Input/Output Voltage 220/230/240Vac, automatically adjusted to suit the home grid
On-Grid Input/Output Frequency 50/60Hz, automatically adjusted to suit the home grid
Maximum On-Grid Bypass Current 42A
Maximum Efficiency 97.6%
Maximum Battery-to-Load Efficiency 94.0%
European Efficiency 97.6%
MPPT Efficiency 99.9%
Integrated Protection Battery over-charge, battery low-voltage, over-temperature, output overload and output short-circuit protection
Listed Standards IEC 62109-1/2, IEC 61000-6-1/2/3/4, IEC 61727, IEC 62116, IEC 61683, IEC 60068
Operating Temperature Range -20°C to +50°C; derating above 35°C
IP Rating IP41
Dimensions 570 x 525 x 140mm
Weight 24.5kg

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
