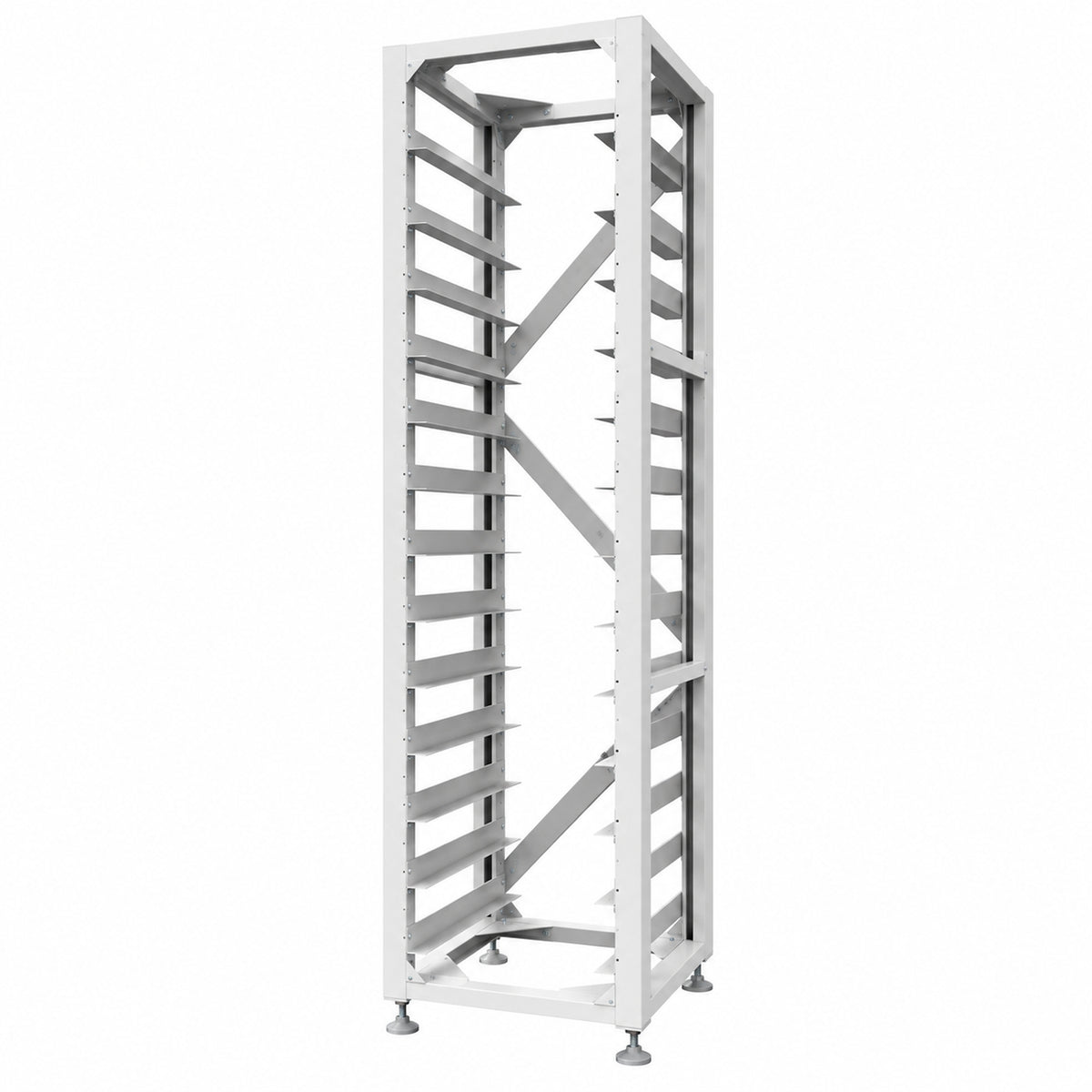

Sunsynk Battery Cabinet Rack for 61.44kWh HV Battery System

Product Overview

The Sunsynk Battery Cabinet Rack provides the mounting structure for the Sunsynk 61.44kWh high-voltage rack-mount battery system. Designed for installers assembling the system from individual components, it accommodates the battery modules and their high-voltage control unit in one organised installation.

Key Features

• Dedicated rack for the Sunsynk 61.44kWh HV battery system.
• 13-way arrangement accommodates twelve battery modules and one BMU control unit.
• Floor-standing format keeps the system components together for installation and maintenance.
• Manufacturer documentation provides assembly, fixing and earthing instructions.

Applications

• Assembly of a Sunsynk 61.44kWh high-voltage battery bank.
• Commercial and agricultural energy storage installations using the specified Sunsynk HV system.
• Replacement rack for an existing installation following installer assessment.

Why Choose This Product?

This dedicated rack provides the mounting arrangement specified for the Sunsynk HV battery system, helping installers keep the battery modules and control unit organised within the intended system layout.

Important Notes

• Rack only. Battery modules, BMU, inverter and external system cabling are separate items.
• A complete 61.44kWh battery bank requires twelve SUN-61.44-HV-BATT modules, one SUN-61.44-HV-BMS control unit and one rack.
• Install indoors on a dry, level surface with adequate load-bearing capacity. Follow the manual for clearances, fixing, earthing and installation-room requirements.
• Installation and commissioning must be completed by qualified personnel. Confirm the exact inverter, battery generation and supplied rack accessories before installation.

Resources

• Sunsynk High Voltage Series Datasheet
• Sunsynk High Voltage Series User Manual

Technical Specifications
