PV Performance Estimation
Installation Data - New MCS Calculation

• Installed capacity of PV system - kWP (stc): 6 570 KWp.
• Orientation of the PV system - degrees from South: 0°.
• Inclination of system - degrees from horizontal: 35°.
• Calculation
• kWh/kWp (KK) from table: 1,667 kWh/kWp.
• Shade factor (SF): 1.00.
• Estimated annual output (kWp x KK xSF): 10,955 kWh.

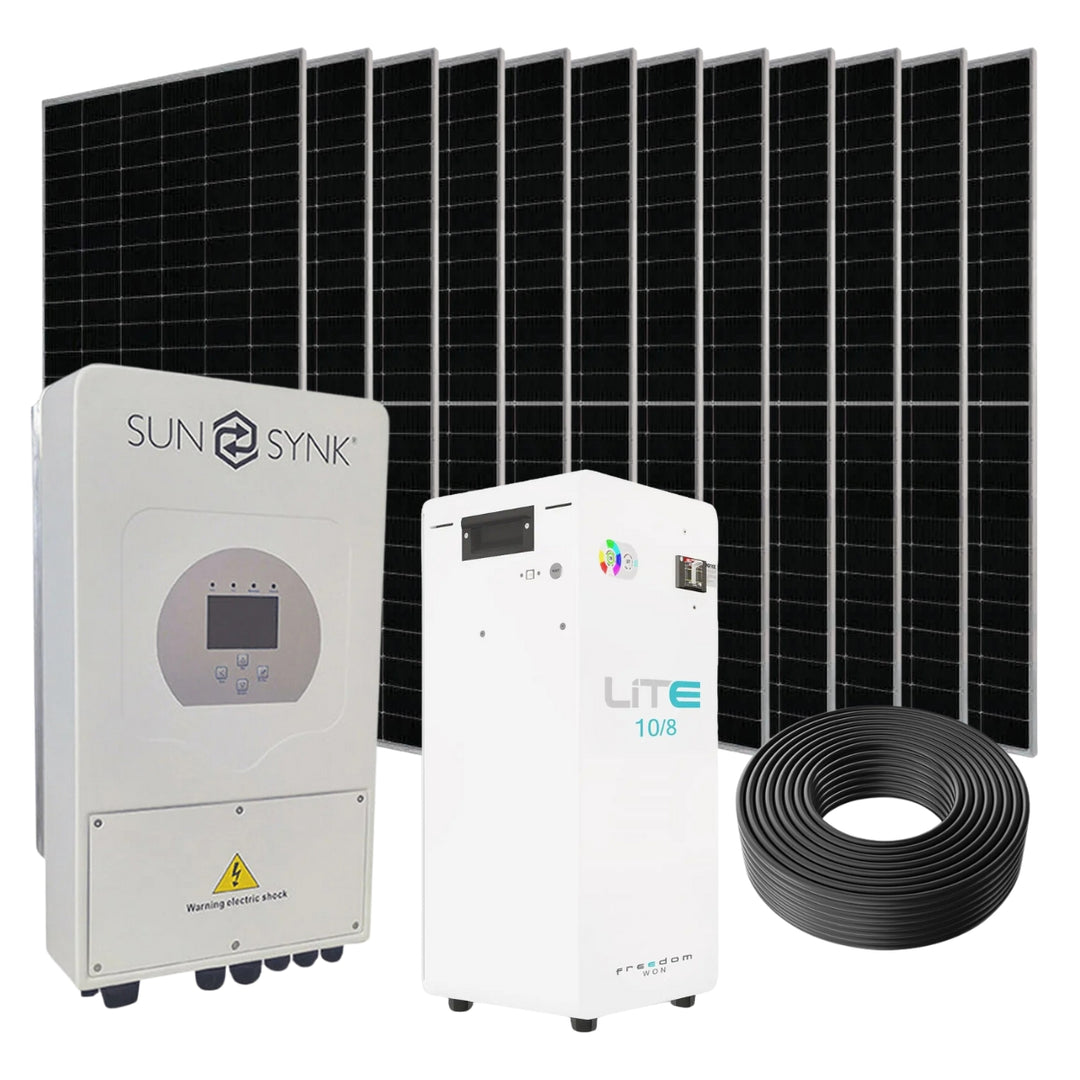

This kit is made up of the following items

• 18 x Canadian Solar KuMax CS3U-365P 365W Solar Panel.
• 1 x Sunsynk Sun 5K Hybrid Inverter.
• 1 x Freedom Won Lite Home 10/8 LiFePO4 Battery.
• 1 x K&N Single Phase AC Switch Disconnector 40A.
• 1 x KETO Battery Disconnector with 125A Fuses.
• 1 x 600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type II SPD.
• 1 x MC4 Pre terminated cable 2m (Pack of 2).
• 2 x Multi Contact Cable Coupler Pack - MC4.
• 20m x Sustainable 6mm² Black Panelflex.
• 20m x Sustainable 6mm² Red Panelflex.
• 25m x Sustainable 6mm² Black Double Insulated Halogen Free Solar Cable.
• 25m x Sustainable 6mm² Red Double Insulated Halogen Free Solar Cable.
• 1 x Battery Hazard Label Pack.
• 1 x PV on Roof and Hazard Labels Pack.

Panel Specifications

• Panel: Canadian Solar 365W Poly KuMax Half-Cell 35mm Frame, 5 BusBar with MC4
• Number required: 18.
• Rating: 365 Wp.
• Dimensions (LxWxD): 2,000 mm x 992 mm x 35mm.
• Voc at STC: 47.2 V.
• Vmpp at STC: 39.8 V.
• Impp at STC: 9.18 A.
• Isc at STC: 9.75 A.
• Array Power: 6 570 Wp.

Inverter - Sunsynk Sun 5K Hybrid Inverter

• Phases: 1.
• No. of MPPT: 2.
• Rated AC Power: 5,000 W
• Max DC Current: 28.60 A.
• Voltage: 500 V.
• PP Voltage: 125 V - 425 V Max.

Electrical - Sunsynk Sun 5K Hybrid Inverter

• Quantity: 1.
• String Quantity: 2.
• Strings: (1x9).(1x9)
• String Voc at 0 °C: 424.8 V
• Input Isc at 80 °C: 10.02 A.
• Distance to Array: 12 m.
• Cable Area: 6 mm2.
• Voltage Drop: 0.51 %.

Storage - Freedom Won Lite Home 10/8 LiFePO4 Battery

• System Type: Full Hybrid.
• Type of Battery: Lithium Ion.
• Usable Battery Capacity: 10000 Wh.
• Voltage: 48 V.
• Max Charge Rate (5 Minutes): 10000 W.
• Max Discharge Rate (5 Minutes): 15000 W.
