Product Overview

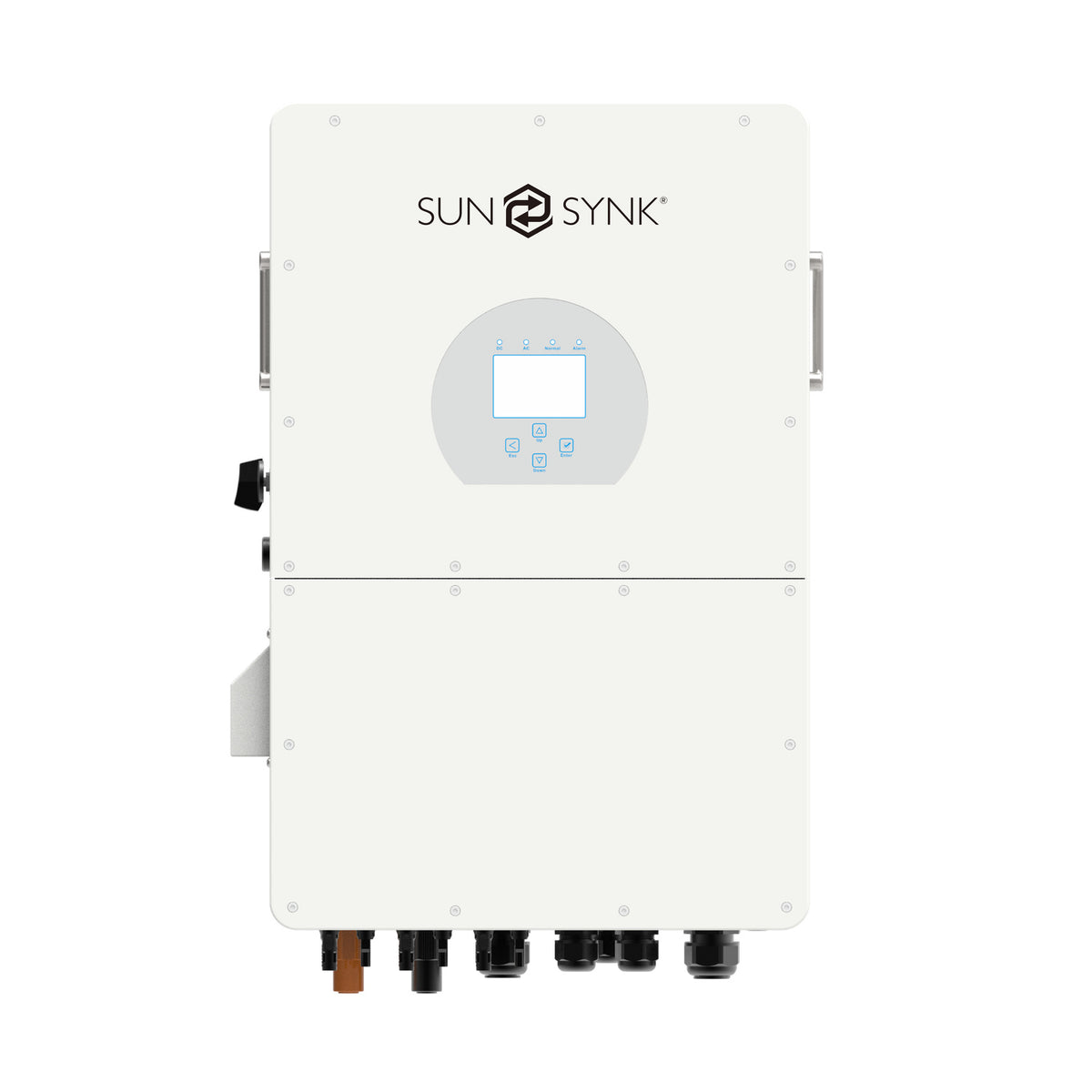

The Sunsynk 30kW G02 Version 2 is a three phase hybrid inverter for commercial solar power systems using high voltage batteries. It manages solar, grid and generator power for business energy requirements.
Key Features
- Three MPPT trackers support flexible solar array configurations.
- 48kW maximum PV input power provides scope for DC oversizing.
- Operates with PV and grid power without batteries.
- Wi-Fi monitoring supports remote system oversight.
- Integrated Type II AC and DC surge protection.
Applications
- Commercial three phase solar installations.
- Business backup power with compatible high voltage batteries.
- Solar systems integrating grid and generator supplies.
Why Choose This Product?
A 30kW output and three independent MPPT trackers make this inverter a practical option for commercial sites requiring flexible solar generation and energy management.
Important Notes
- This G02 model cannot be paralleled with the previous SUN-30.0-3PH G01 model.
- High voltage battery compatibility and configuration must be confirmed before installation.
- Installation requires a registered three phase electrician with product-specific training and compliance with local wiring requirements.
- Five-year standard African warranty; extension to ten years when paired with Sunsynk batteries is subject to applicable warranty conditions.
- Confirm current grid approvals with Sunsynk before ordering.
Technical Specifications
| Specification |
Detail |
| Brand |
Sunsynk |
| Model |
SUNSYNK-30K-SG02HP3-EU-AM3 |
| Supplier Part Number |
SUN-30.0-3PH-N |
| Product Type |
High voltage three phase hybrid inverter |
| Version |
G02 Version 2 |
| Rated AC Power |
30kW |
| Maximum Apparent Power |
33kVA |
| Battery Type |
Lithium-ion |
| Battery Voltage Range |
160–700V |
| Maximum Charge / Discharge Current |
75A / 75A |
| Maximum PV Access Power |
60kW |
| Maximum PV Input Power |
48kW |
| Maximum PV Input Voltage |
1000V |
| MPPT Voltage Range |
150–850V |
| MPPT Trackers / Strings |
3 / 2 per MPPT |
| Maximum PV Operating Current |
36A per MPPT |
| Rated AC Voltage |
220/380V or 230/400V |
| Maximum Continuous AC Passthrough |
80A |
| Maximum Efficiency |
98.5% |
| Communication Interfaces |
RS485 / RS232 / CAN |
| IP Rating |
IP65 |
| Operating Temperature |
−40°C to +60°C; derating above 45°C |
| Dimensions (W × H × D) |
448 × 688 × 270mm, excluding connectors and brackets |
| Weight |
46kg |
| Cooling |
Intelligent air cooling |
