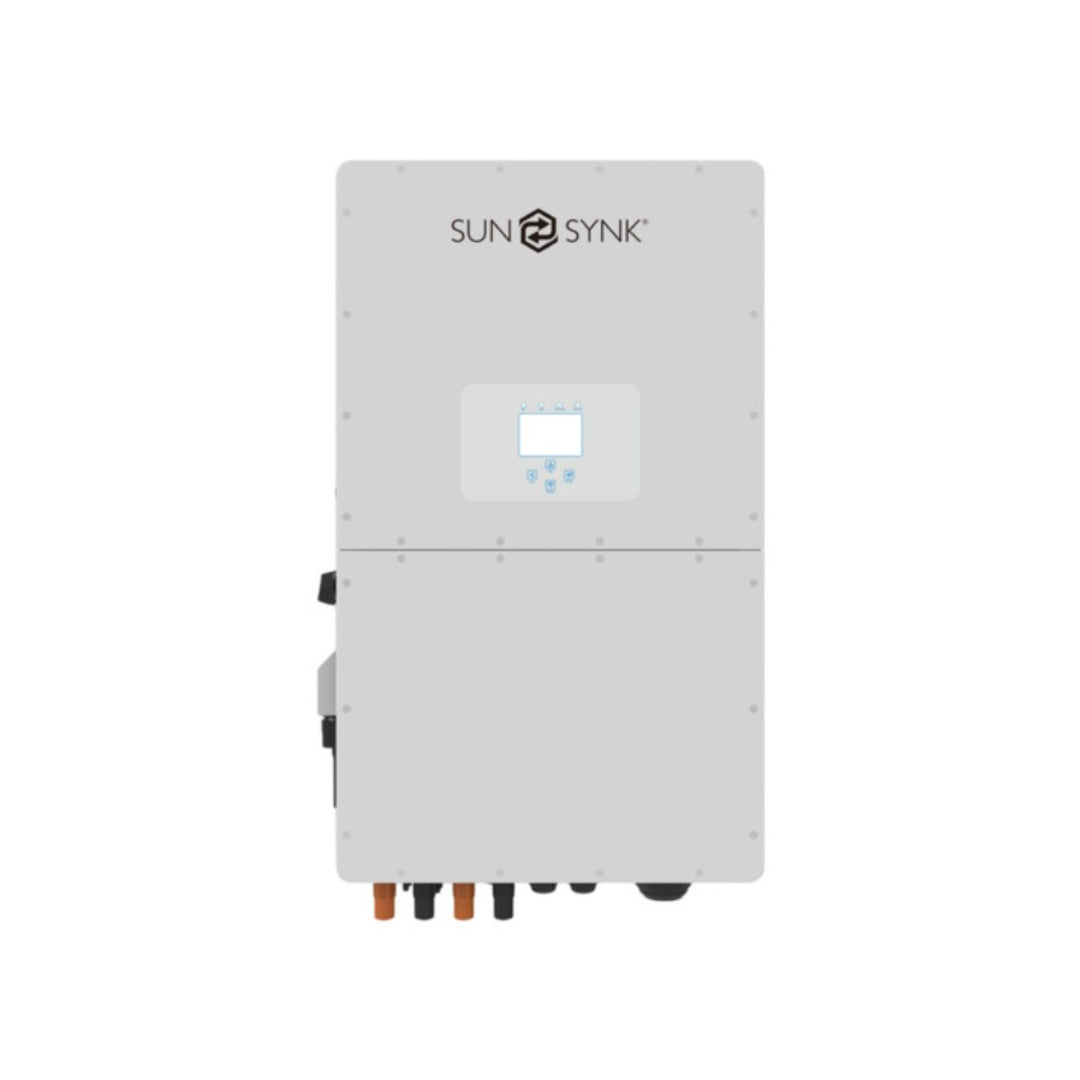

The SUNSYNK-25K-SG01HP3-EU-AM2 is a powerful three-phase hybrid inverter designed for large residential, commercial, and industrial solar energy systems. Delivering up to 25kW of AC output, this inverter efficiently integrates solar generation, battery storage, and grid supply to provide reliable and flexible energy management.
Equipped with dual MPPT trackers, the inverter maximizes solar energy harvesting while supporting up to 32.5kW of PV input and a maximum PV voltage of 1000V, allowing longer panel strings and more efficient system design. It is compatible with high-voltage lithium batteries (160–700V) and features intelligent battery communication that automatically adapts to the battery BMS for optimal charging and discharging.
Designed for durability and performance, the inverter features an IP65-rated enclosure, intelligent cooling, and multiple monitoring options including WiFi, Bluetooth, LAN, and 4G connectivity. With efficiency up to 97.6% and comprehensive safety protections, the SUNSYNK 25kW inverter is a reliable solution for high-capacity solar power installations.
Key Features
- 25kW three-phase hybrid solar inverter
- Compatible with high-voltage lithium batteries (160–700V)
- Dual MPPT trackers for maximum solar harvesting
- Supports up to 32.5kW PV input
- Maximum PV input voltage of 1000V
- Grid-tied, hybrid, and off-grid operation
- Intelligent battery charging with automatic BMS communication
- Advanced monitoring via WiFi, LAN, Bluetooth, or 4G
- High conversion efficiency up to 97.6%
- Integrated Type II surge protection (AC & DC)
- IP65 rated enclosure for outdoor installation
- Comprehensive system protection features
- Intelligent cooling system
- Parallel capability for larger systems
Technical Specifications
Battery Input
| Specification |
Value |
| Battery Type |
Lithium-ion |
| Battery Voltage Range |
160 – 700 V |
| Maximum Charging Current |
50 A |
| Maximum Discharging Current |
50 A |
| Charging Strategy |
Self-adaptation to BMS |
| Battery Inputs |
1 |
PV (Solar) Input
| Specification |
Value |
| Maximum PV Input Power |
32,500 W |
| Maximum PV Input Voltage |
1000 V |
| Start-Up Voltage |
180 V |
| MPPT Voltage Range |
150 – 850 V |
| Rated PV Input Voltage |
600 V |
| Number of MPPT Trackers |
2 |
| Strings per MPPT |
2 + 2 |
| Maximum Short Circuit Current |
39 A + 39 A |
| Maximum Operating PV Input Current |
26 A + 26 A |
AC Output
| Specification |
Value |
| Rated AC Output Power |
25,000 W |
| Maximum AC Apparent Power |
27,500 VA |
| Peak Power (Off-Grid) |
2 × rated power for 10 seconds |
| Rated AC Output Current |
36.3 A |
| Maximum AC Output Current |
39.9 A |
| Maximum Continuous AC Pass-Through |
80 A |
| Maximum Three-Phase Unbalanced Output Current |
41.7 A |
| Rated Voltage |
220/380 V or 230/400 V |
| Grid Connection |
3L + N + PE |
| Grid Frequency |
50 / 60 Hz |
| Power Factor |
0.8 leading to 0.8 lagging |
| Total Harmonic Distortion |
<3% |
Efficiency
| Specification |
Value |
| Maximum Efficiency |
97.6% |
| Euro Efficiency |
97.0% |
| MPPT Efficiency |
>99% |
Communication & Monitoring
| Specification |
Value |
| Communication Interfaces |
RS485, RS232, CAN |
| Monitoring Options |
WiFi, LAN, Bluetooth, 4G, GPRS (optional) |
General Specifications
| Specification |
Value |
| Operating Temperature |
-40°C to +60°C |
| Maximum Altitude |
2000 m |
| Humidity |
0 – 100% |
| Noise Level |
<55 dB |
| Protection Rating |
IP65 |
| Cooling Method |
Intelligent Cooling |
Mechanical Specifications
| Specification |
Value |
| Dimensions (W × H × D) |
408 × 638 × 237 mm |
| Weight |
30.5 kg |
| Warranty |
5 Years (10 years with Sunsynk battery) |
